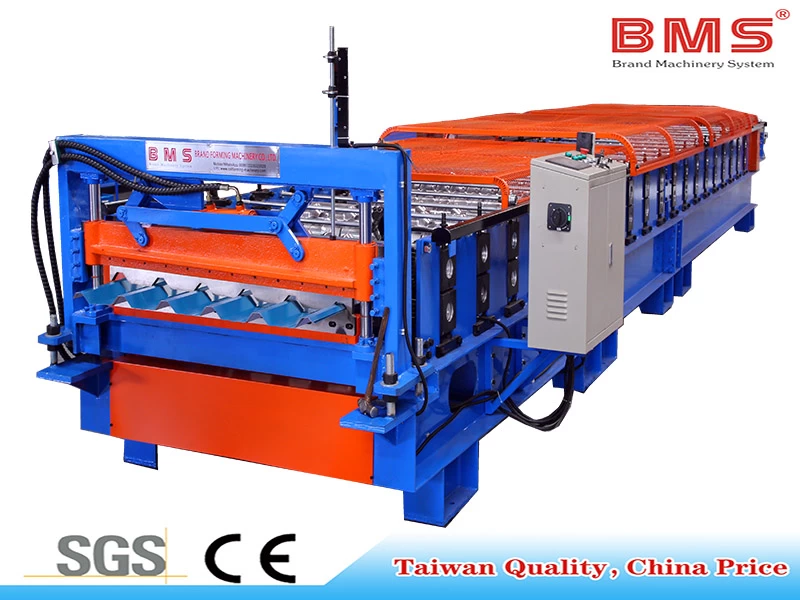

Kirby Style Roofing Panel Roll Forming Machine

Easy to operate and running stable,Kirby Style,popular in USA,Middle East&Africa,India and South East Asia




Kirby Style Roofing Panel Roll Forming Machine


Please Click Here To View The Video

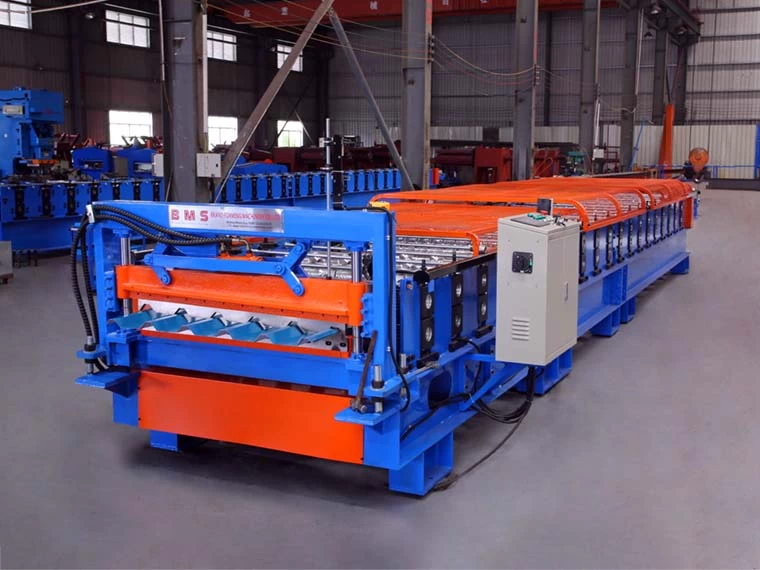

Roofing Panel Machine

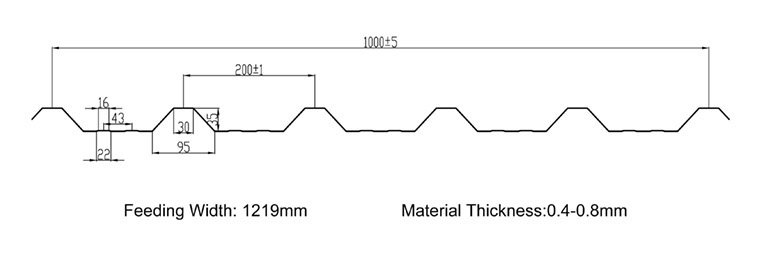

Profile Drawing



1.Main features of YX35-1000 roof panel machine roll forming machine


    The advantages of roof panel machine are as follows:

    1.Low cost, light weight but high strength, short building period, and re-cycle use

    2.Save material ,no waste.

    3.Easy operation, low maintenance cost

    4.Able to deal with stainless material



2.Detailed Images of YX35-1000 roof panel forming machine


        Machine Parts

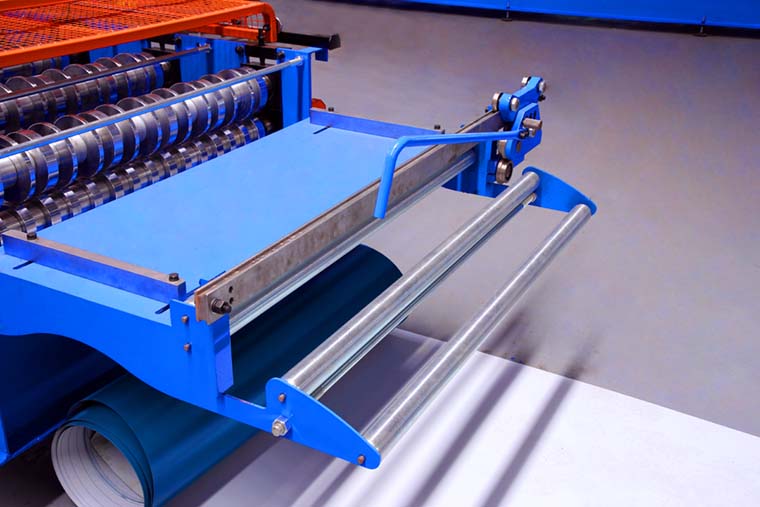

              1) YX35-1000 roof panel machine pre-cutter

        Brand: BMS    Original: China

        With feeding material guide,avoid wasting material

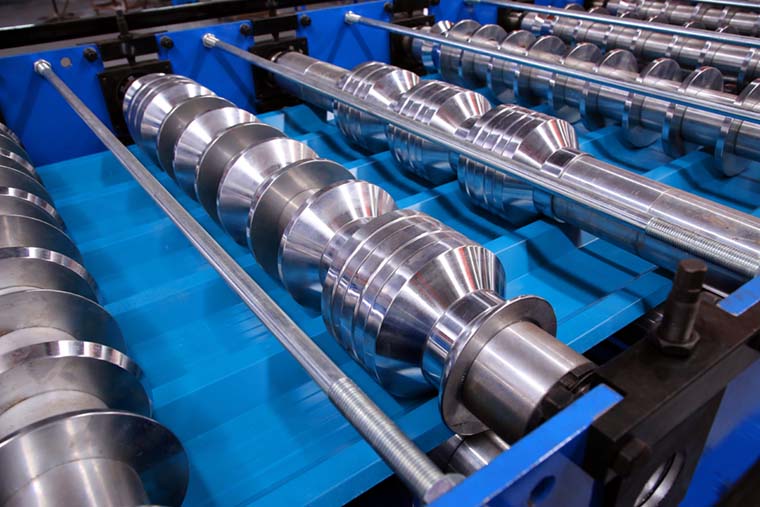

             2) YX35-1000 roof panel machine rollers

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        Body frame made from 450# H type steel by welding

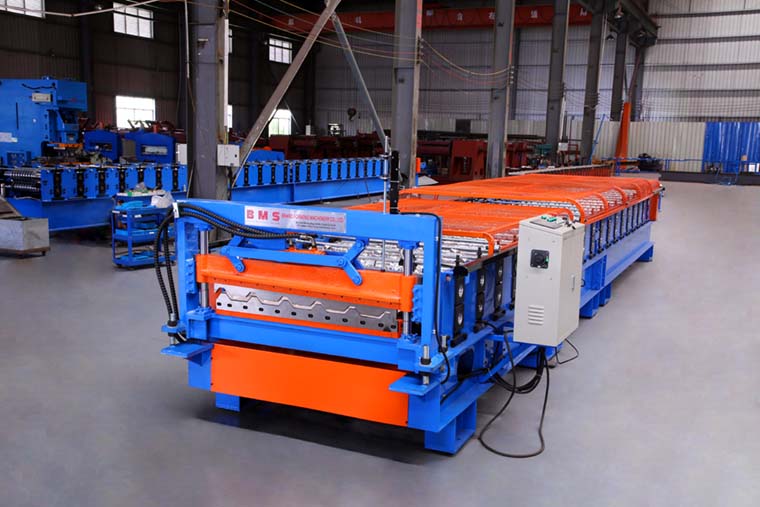

             3) YX35-1000 roof panel machine post cutter

        Made by high quality mold steel Cr12MoV,with heat treatment,HRC58-62

        Cutter frame made from high quality 20mm steel plate by welding

        hydraulic motor:4KW, Hydraulic pressure range: 0-16Mpa

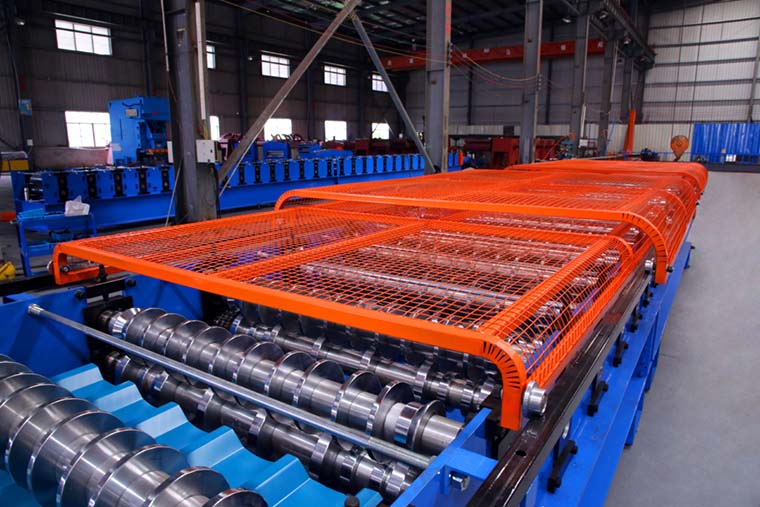

              4) YX35-1000 roof panel machine protection cover

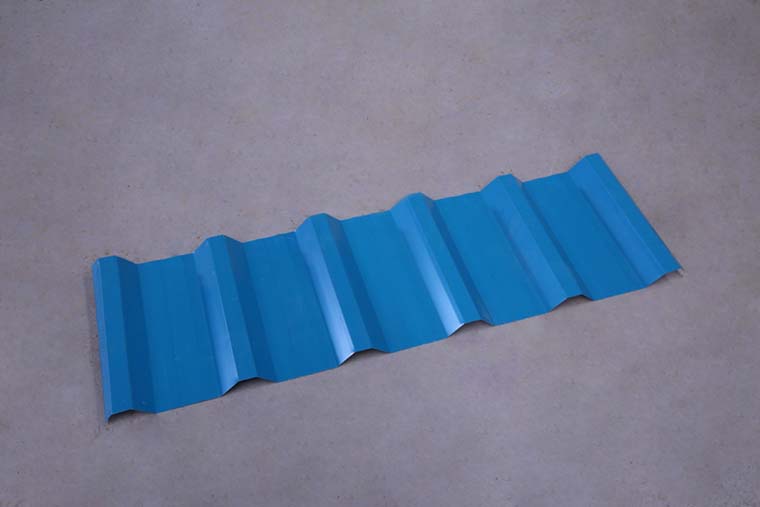

 5)YX35-1000 roof panel machine product show




          6) YX35-1000 roof panel machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1200mm, coil ID range 508mm±30mm

        Capacity: 5-9 Ton

 Roof Panel Roll Forming Machine



        With 6 tons hydraulic decoiler for option

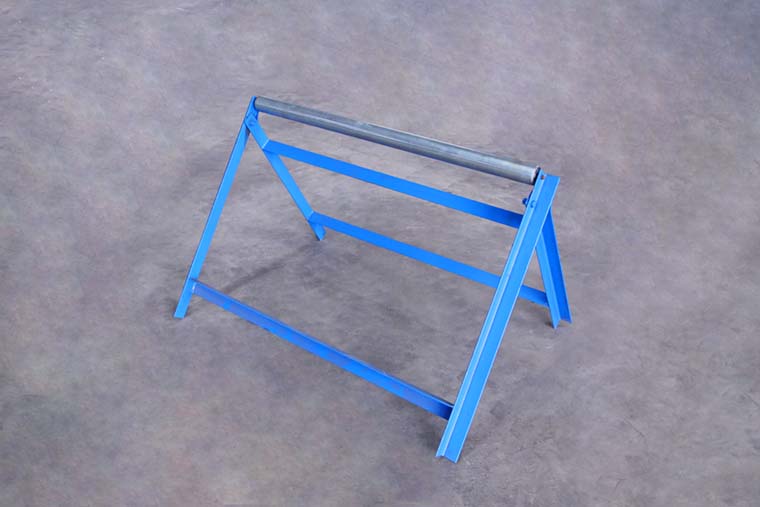

          7) YX30-1000 roof panel machine exit rack

        Un-powered,three units




Other details of YX35-1000 roof panel roll forming machine



Suitable for material with thickness 0.4-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 20 steps to form.

Main motor=5.5KW , Frequency speed control. Forming speed approx.12-15m/min

PLC Control System (Touch screen brand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of roof panel roll forming machine



1. The warranty of roof panel roll forming machine

    is one year after the client receives the machine.

    Within one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
