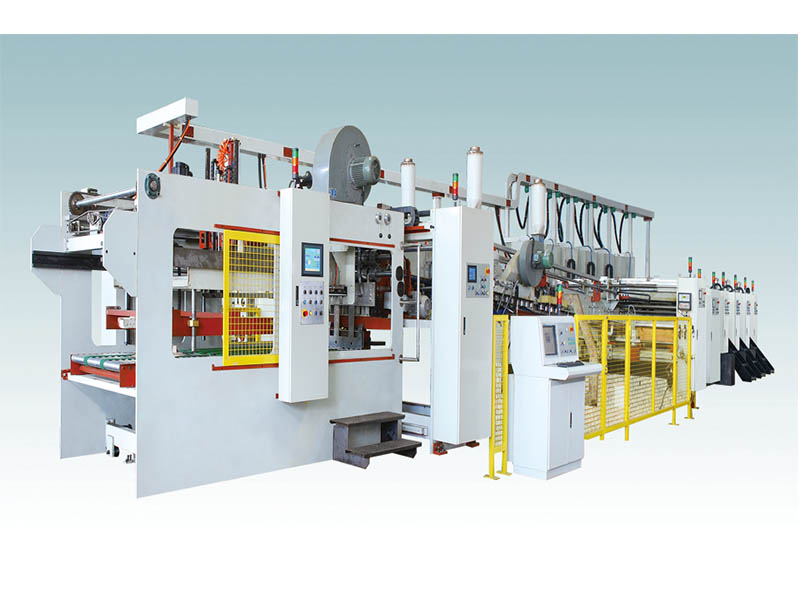

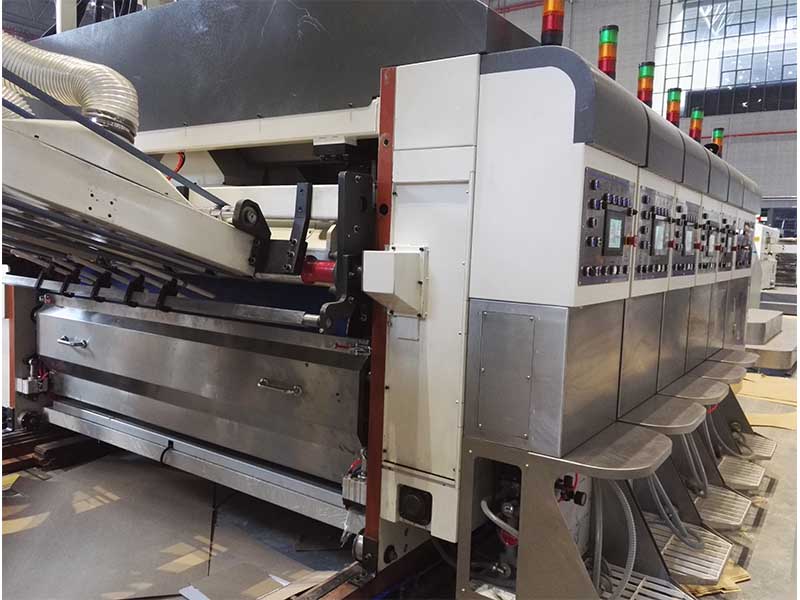

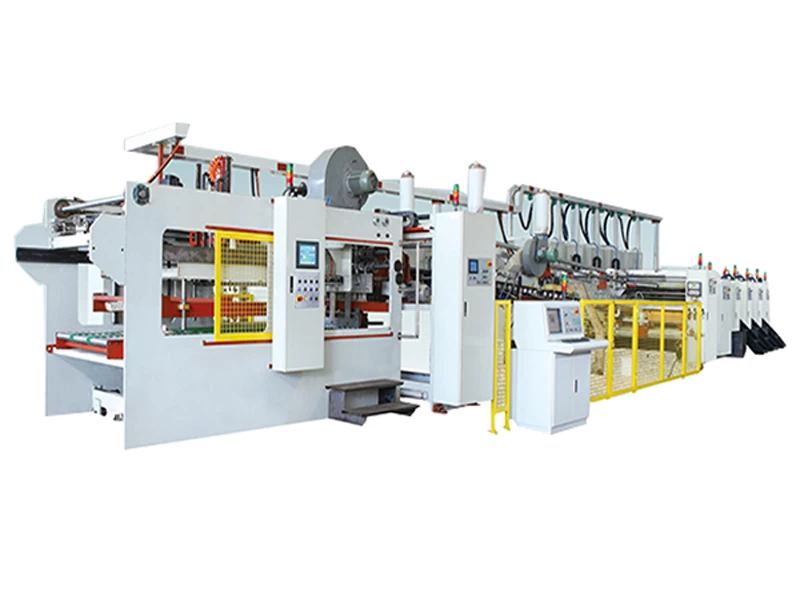

KL Corrugated Flexo Printing Machine Plant in Guangzhou
Corrugated Box Machine Features：
·This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
·Computerized control,order setting in touch screen.
·The Folding Section adopts belt transfer system assisted with vacuum suction,to make best transfering and folding quality.
·The Gluing Section adopts U.S.A VALCO high speed auto-sensor glue spray system.
·The correction device in the Countering Section can conquer the fish-tail,makes the carton even.
·The quantity of bundle come out from the Counter Ejector can be set in touch screen.
·Able to shift order of the idle Printing Section under production.
·All electronic and pneumatic components are with European standards.
Corrugated Cardboard Flexo Printing Machine Specification：
Data/Model
|
900x2000
|
900x2400
|
1200x2000
|
1200x2400
|
Printing Speed(m/min)
|
200
|
200
|
200
|
200
|
Max Machine Speed(pcs/min)
|
350
|
300
|
250
|
250
|
Max Feeding Size(mm)
|
880x2000
|
880x2400
|
1180x2000
|
1180x2400
|
Min Feeding Size(mm)
|
280x640
|
280x640
|
320x700
|
320x700
|
Skip Feeding(mm)
|
1100x2000
|
1100x2400
|
1500x2000
|
1500x2400
|
Max Printing Area(mm)
|
800x2000
|
800x2400
|
1150x2000
|
1500x2400
|
Thickness of Printing Plate(mm)
|
7.2
|
7.2
|
7.2
|
7.2
|
Min Panel(mm) Slot Type L.
|
240x80x240x80
|
240x80x240x80
|
260x90x260x90
|
260x90x260x90
|
Max Slotting Depth(mm)
|
250
|
250
|
320
|
320
|
|
Min Folding Size(mm)
|
280x760
|
280x760
|
320x800
|
320x800
|
Max Thickness of Sheet(mm)
|
8
|
8
|
12
|
12
|
Dimension(LxWxH)
T
F
|
T:18832x4750x2800
F:19552x4750x2800
|
T:18832x5150x2800
F:19550x5150x2800
|
T:20255x4870x2800
F:20975x4870x2800
|
T:20255x5270x2800
F:20975x5270x2800
|
