Klip-Lok Roof Panel Roll Forming Machine For YX20-360 Profile

Easy installation, short building period,

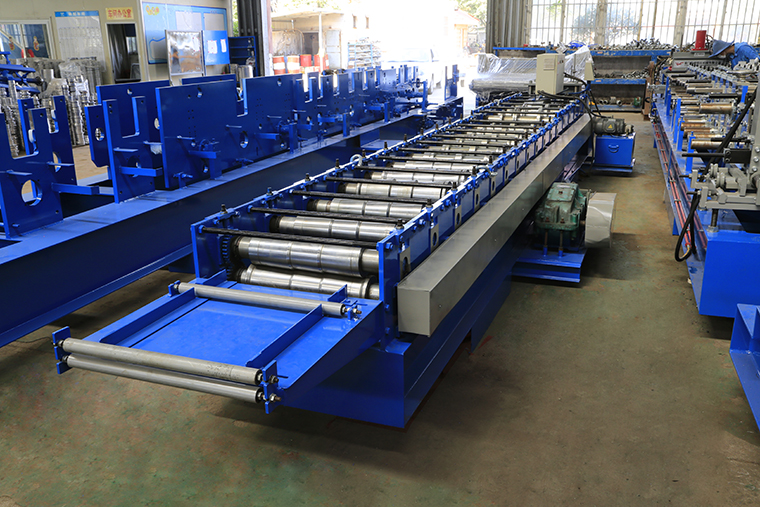

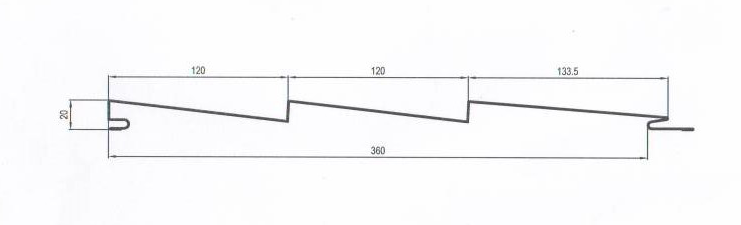

          YX20-360 Klip-Lok Roof Panel Roll Forming Machine



Klip-Lok Roof Panel Roll Forming Machine



1.Main features of YX20-360 klip-lok roof panel machine





    The advantages of roof panel machine are as follows:

    1.Able to produce two different profiles.

    2.Save spacemore convenient.

    3.Easy operation, low maintenance cost

    4.Stable and durable





2.Detailed Images of YX20-360 klip-lok roof panel forming machine





    Machine Parts

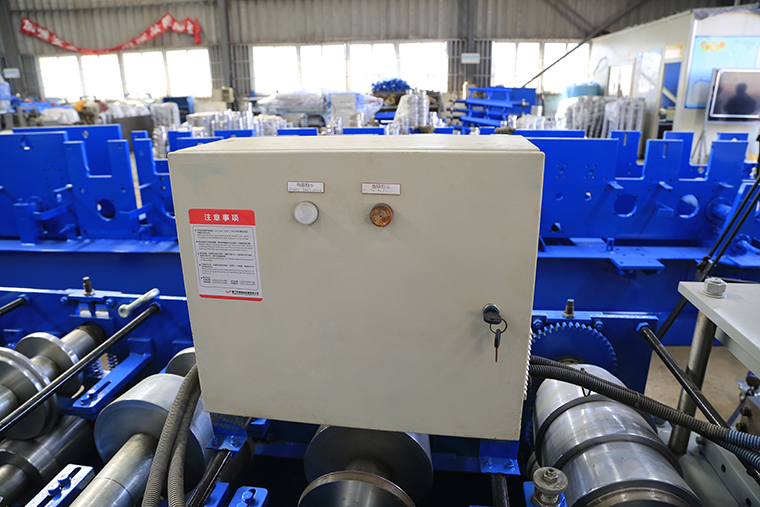

        1) YX20-360 klip-lok roof panel machine electronic control cabinet

        Brand: BMS    Original: China





      Klip-Lok Roof Panel Roll Forming Machine

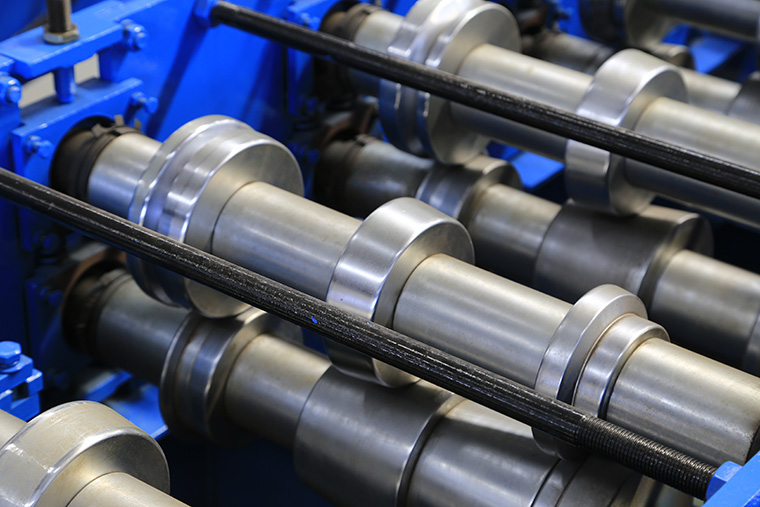

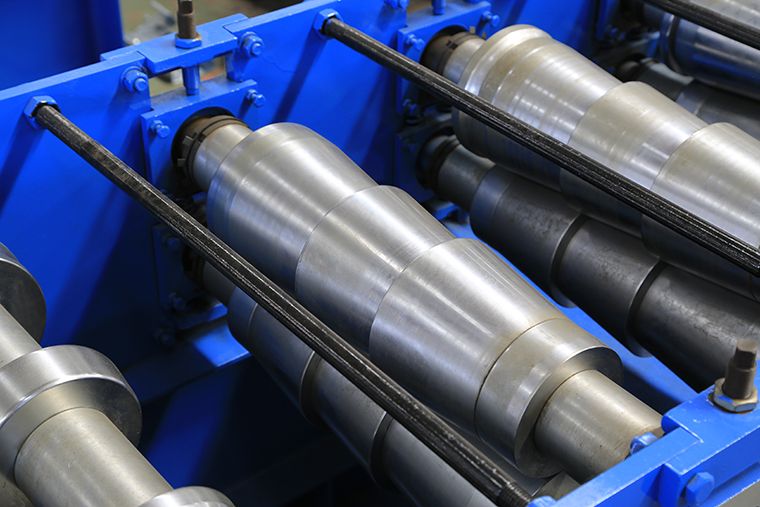

        2) YX20-360 klip-lok roof panel machine rollers

        Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding



Klip-Lok Roof Panel Roll Forming Machine



Klip-Lok Roof Panel Roll Forming Machine

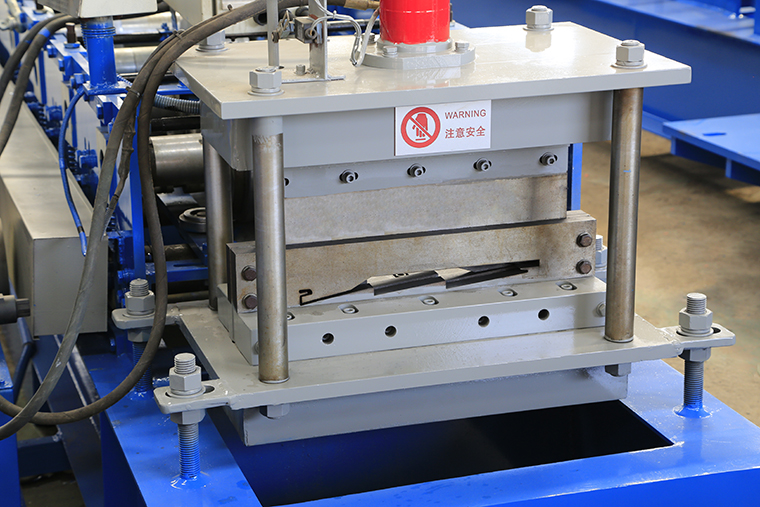

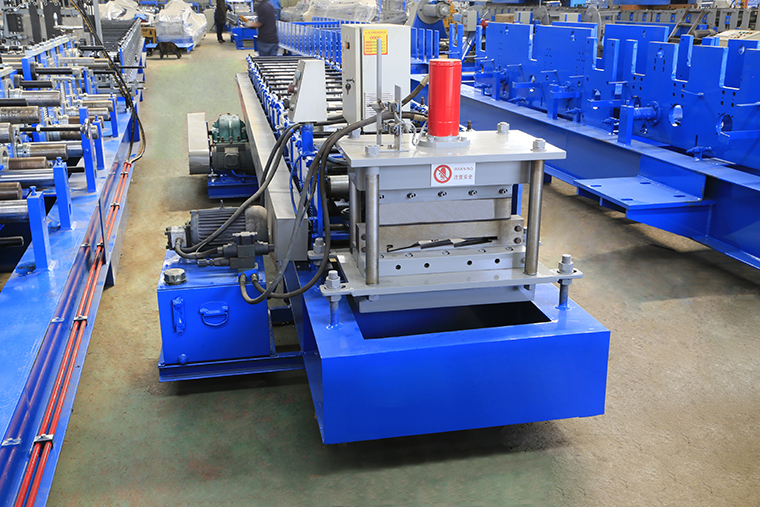

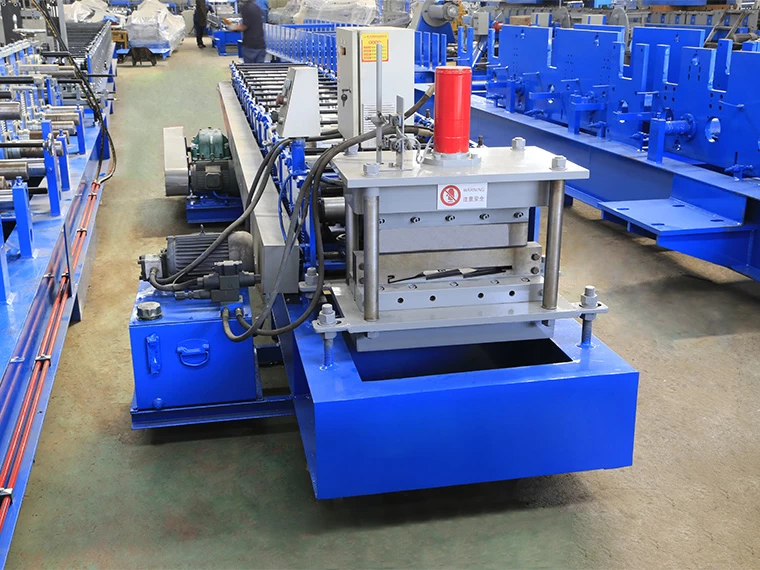

       3) YX20-360 klip-lok roof panel machine post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
        Hydraulic motor:2.2KW, Hydraulic pressure range: 0-16Mpa



Klip-Lok Roof Panel Roll Forming Machine

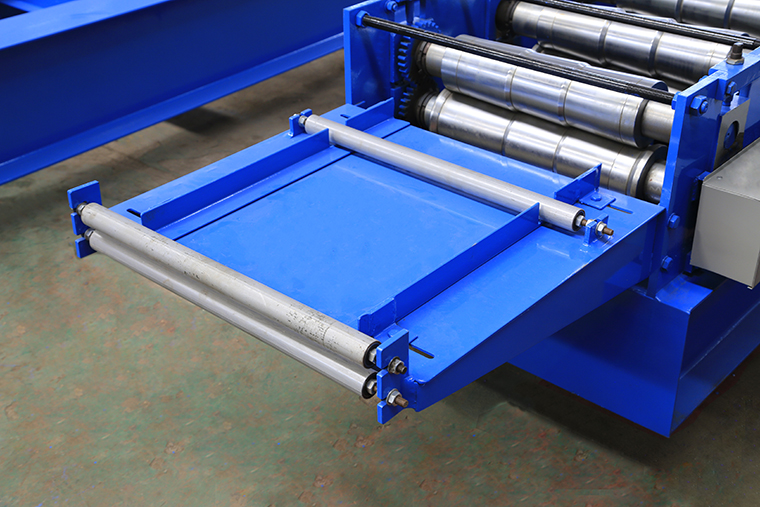

        4) YX20-360 klip-lok roof panel machine feeding guide



Klip-Lok Roof Panel Roll Forming Machine


Klip-Lok Roof Panel Roll Forming Machine

        5) YX20-360 klip-lok roof panel machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1250mm, coil ID range 470mm±30mm

        Capacity: Max. 8 Ton





        With 6 tons hydraulic decoiler for option


        6) YX20-360 klip-lok roof panel machine exit rack

        Un-powered,one unit







Other detailes of YX20-360 klip-lok roof panel machine



Suitable for material with thickness 0.3-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission,20 steps to form

Main motor=7.5KW , Frequency speed control. Forming speed approx.12-15m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



For the more detail see the video:





After-sale service of klip-lok roof panel machine



1. The warranty of YX20-360 klip-lok roof panel machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
