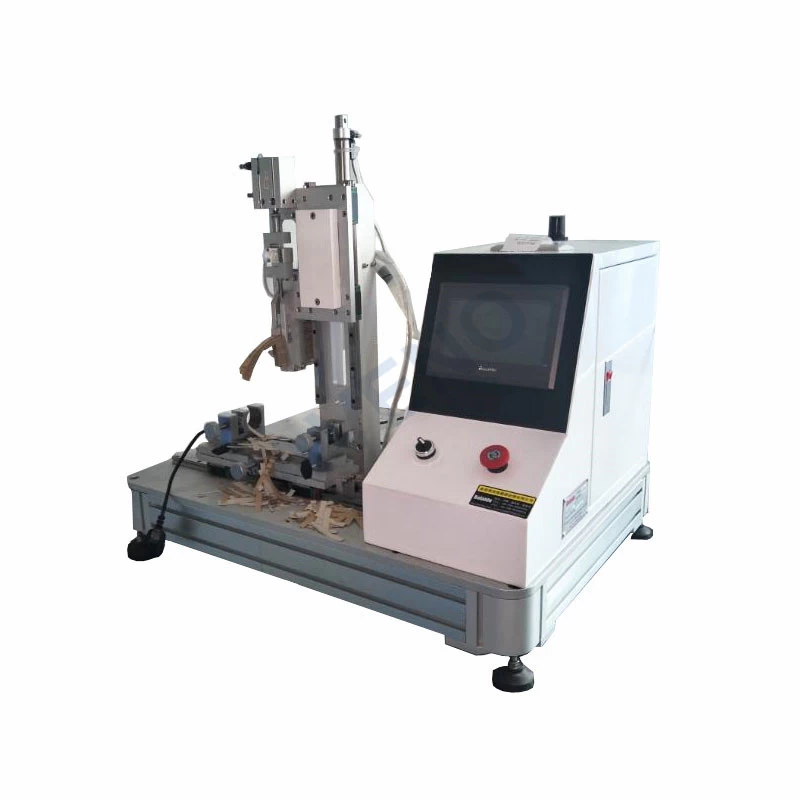

AD01-Knife Edge Tester
Application Of Knife Edge Tester
Knife Edge Tester is according BS EN ISO 8442-5, be used to do knife sharpness test.
Features Of Knife Edge Tester
-
Specimen constant pressure, automatic positioning, automatic reset and cutting of cutting tool, etc.
-
Simple and convenient operation, large LCD screen.
-
Group testing, automatic data statistics and printing
-
Variety of safety protection modes to ensure blade and test safety.
Standard Of Knife Edge Tester
BS EN ISO 8442-5:2004 QBT 2141.2-1995, GB/T 30769-2014
Key Specification Of Knife Edge Tester
|
Model
|
AD01 Knife Edge Tester
|
|
Control
mode
|
LCD touch
screen control
|
|
Measurable
edge length
|
≥10mm (QB/T)
≥50mm (ISO)
|
|
Cutting
pressure
|
50N
|
|
Sample
pressure
|
1300N
|
|
Cutting
speed
|
50mm/s
|
|
Cutting
stroke
|
40mm
|
|
Power
supply
|
AC220V,
50/60HZ
|
|
Dimension
|
60*50*78cm
|
|
Weight
|
72kg
|
