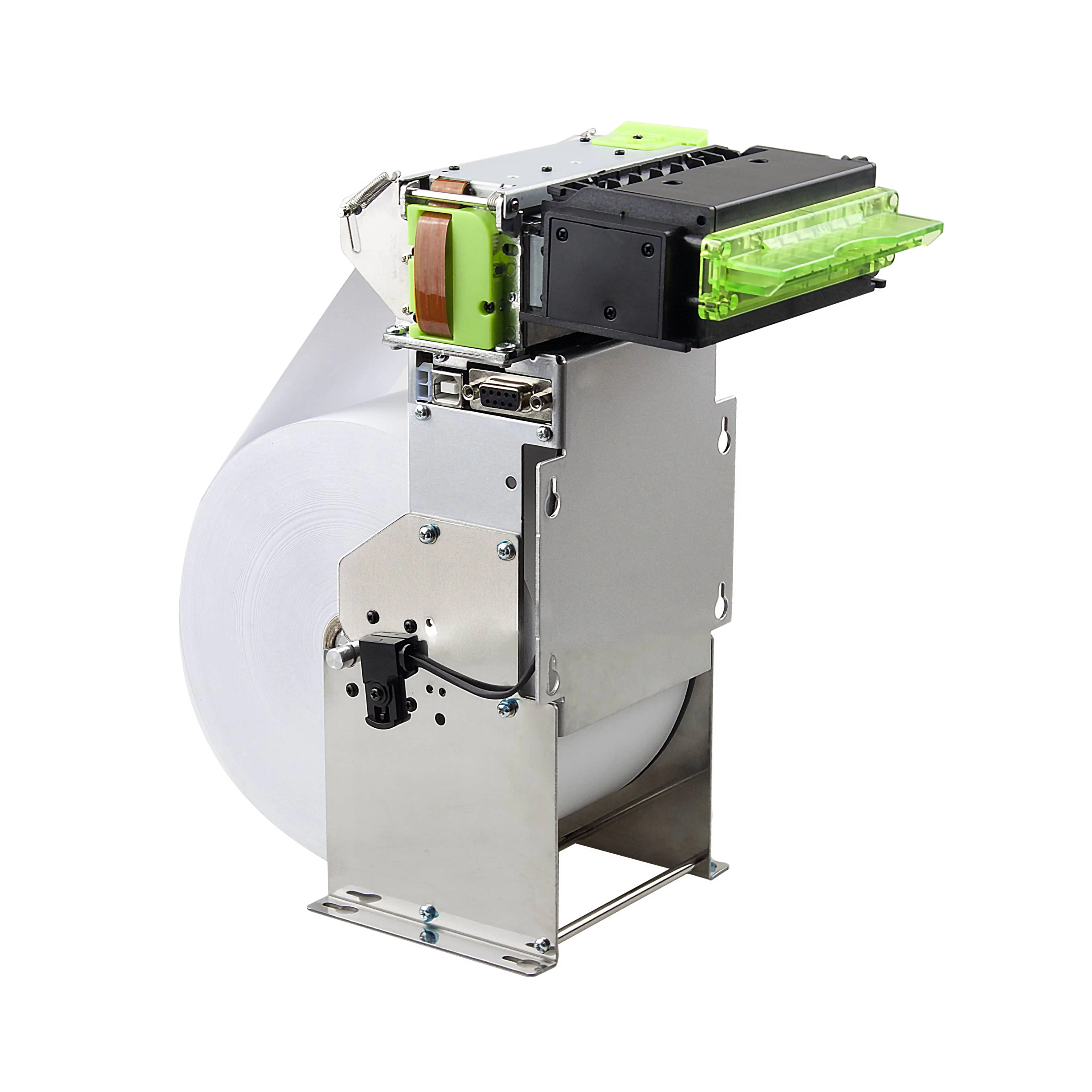

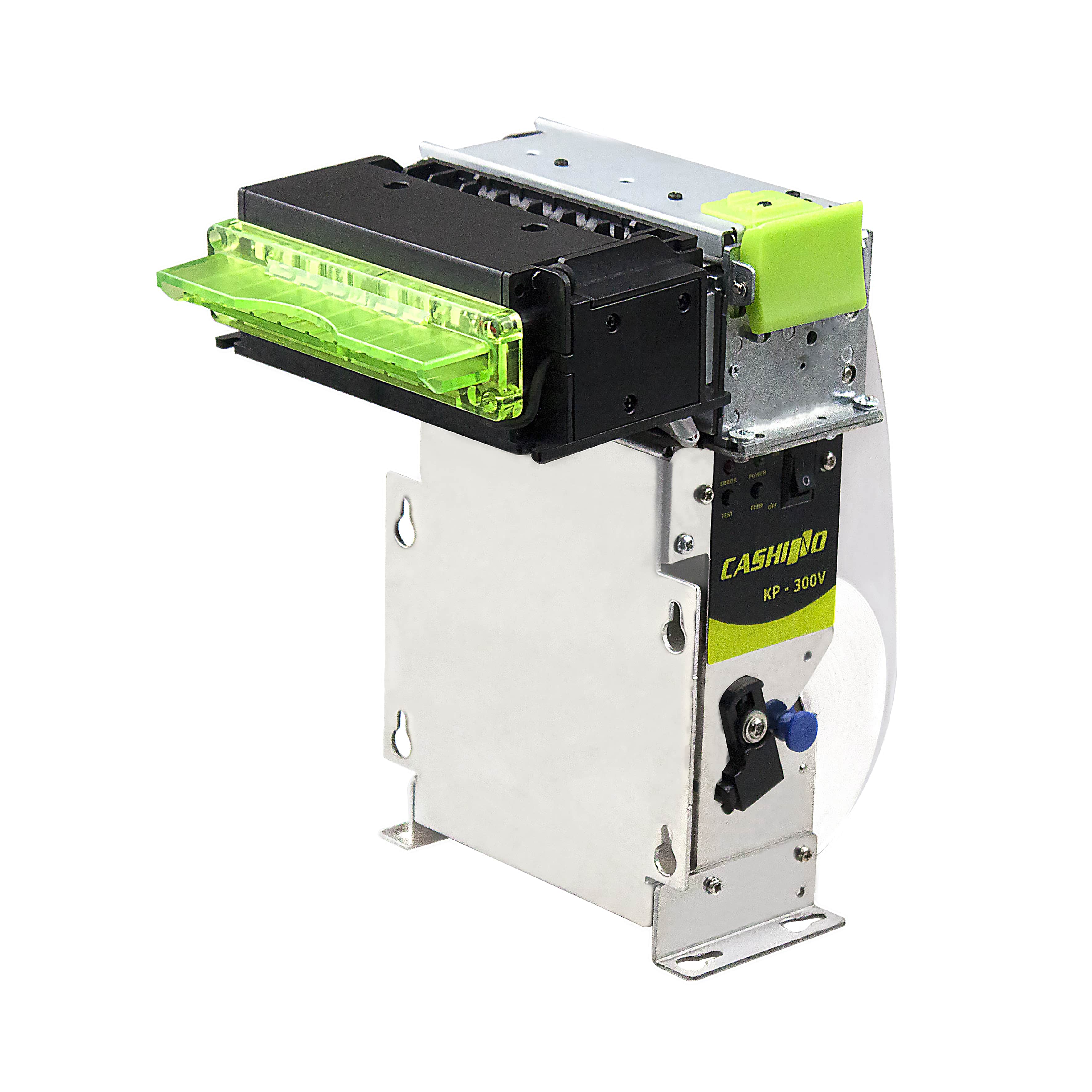

KP-300V 80mm width Kiosk Thermal Printer
Basis information:
KP-300V is a 80mm thermal kiosk printer. It features compact, high printing speed, auto feeding, easy-paper loading, etc. This kiosk thermal printer could support the function of recycling bills and printer presenter.
Feature:
1. Fully opening paper cover provides easy paper insert
2. 250mm/s printing speed
3. 80mm kiosk/ticket printer module
4. Auto feeding/easy-paper loading
5. Full or partial cutter
6. Near paper end detector
7. Take out paper sensor
8. Printer presenter for your option
Specification:
| Model No. |
KP-300V |
| Print |
print mode |
Thermal line printing |
| print width max. |
72mm/80mm |
| print resolution |
203 dpi |
| print speed max. |
250mm/s (max) |
| Character |
Character set |
GBK(24x24); |
| ASCII:9x17,9x24,16x18,12x24 |
| Font |
Font A(12x24):32; |
| Font B(9x17):42; GBK:16 |
| Paper spec. |
Paper Type |
Thermal paper / Label paper |
| Paper Diameter |
250mm(Max.) |
| Paper Thickness |
0.055-0.09mm, 0.10-0.20mm |
| Paper Width |
58/60/80/82.5mm |
| Paper Diameter(O.D): |
Max.150mm, Max.80mm as optional |
| Roll Core Inner Diameter |
18mm(min) |
| Paper supply method |
Drop-in easy loading/ Automatic feed |
| Reliability |
TPH |
100km |
| Cutter |
0.055-0.09mm paper : 1million |
| 0.10-0.20mm paper: 0.5milion |
| Detection |
No paper detection |
| Paper near end detection |
| Paper presence |
| Black mark detection |
| Label gap detection |
| Barcode |
1D |
UPCA,UPC-E,JAN13(EAN13),JAN8(EAN8),CODE39,ITF,CODABAR,CODE128,CODE93 |
| 2D |
QR CODE |
| Command |
Compatible with ESC/POS command set |
| Driver/SDK |
Windows Driver, Linux Driver, Android SDK, Windows SDK |
| Interface |
USB+RS232/ USB+RS232+LAN(as optional) |
| Power adapter |
24VDC , 2A |
| Temperature |
Operating:-10°C~50°C |
| Storage:-20°C ~ 60°C |
| Humidity |
Operating:10%RH~80%RH |
| Storage:10%~90%RH |
| External dimensions |
w/o paper presenter |
114.8(W)x171.0(D)x234.3(H)mm |
| with paper presenter |
114.8(W)x232.8(D)x234.3(H)mm |
Applications:
1. Kiosk banking
2. Gaming/lottery kiosk
3. Car park payment kiosk
4. Info and multimedia kiosks
5. Currency change
6. Information stands
FAQ:
Q: Can I get samples for testing?
A: Yes, samples are available.
Q: What is the delivery date?
A: The delivery date for samples is within 3 days after payment received. Approximately 2 weeks for bulk order.
Q: How can I do the payment?
A: Via T/T, Paypal and Western Union.
Q: What is the warranty on my products?
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with reasonable price to the customer.
