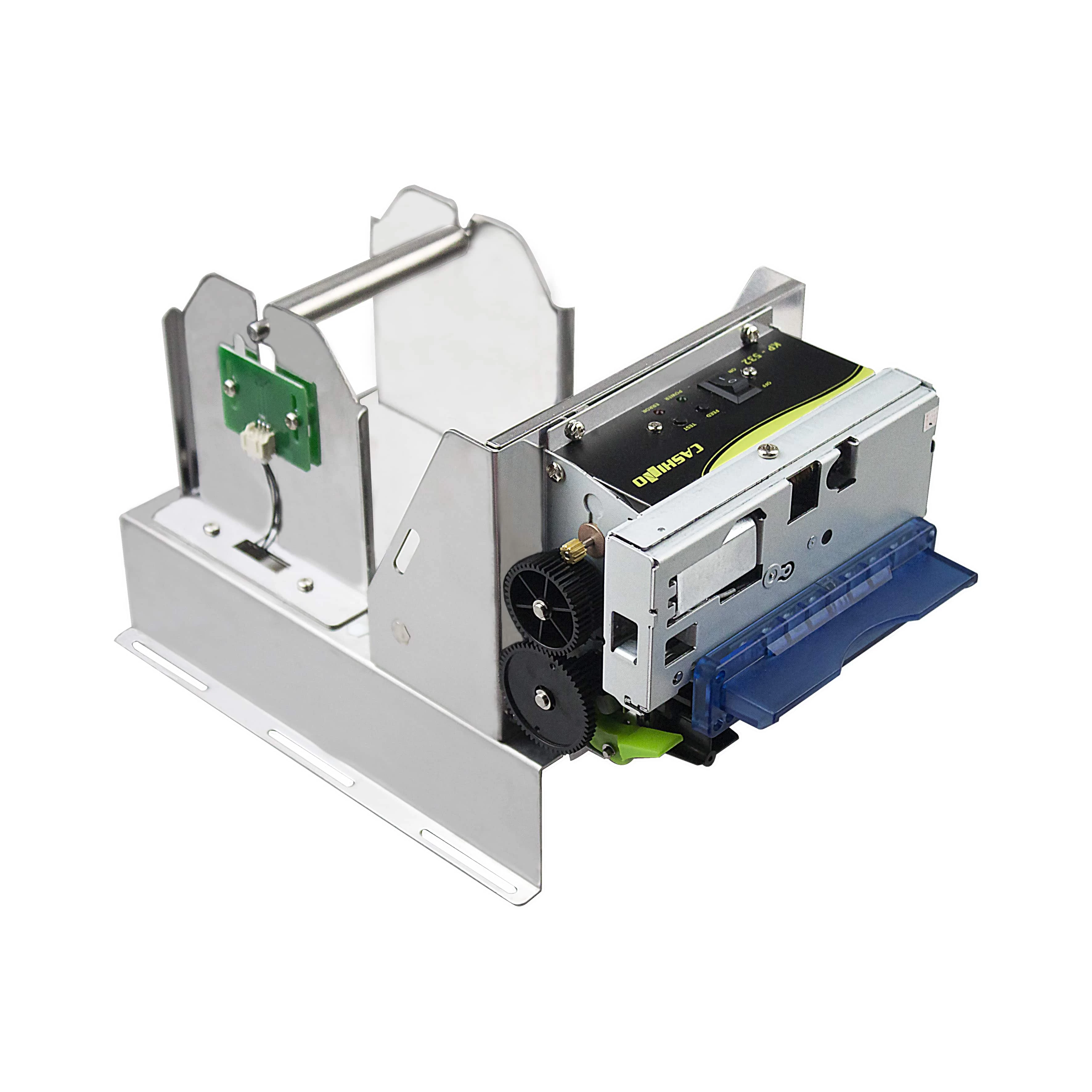

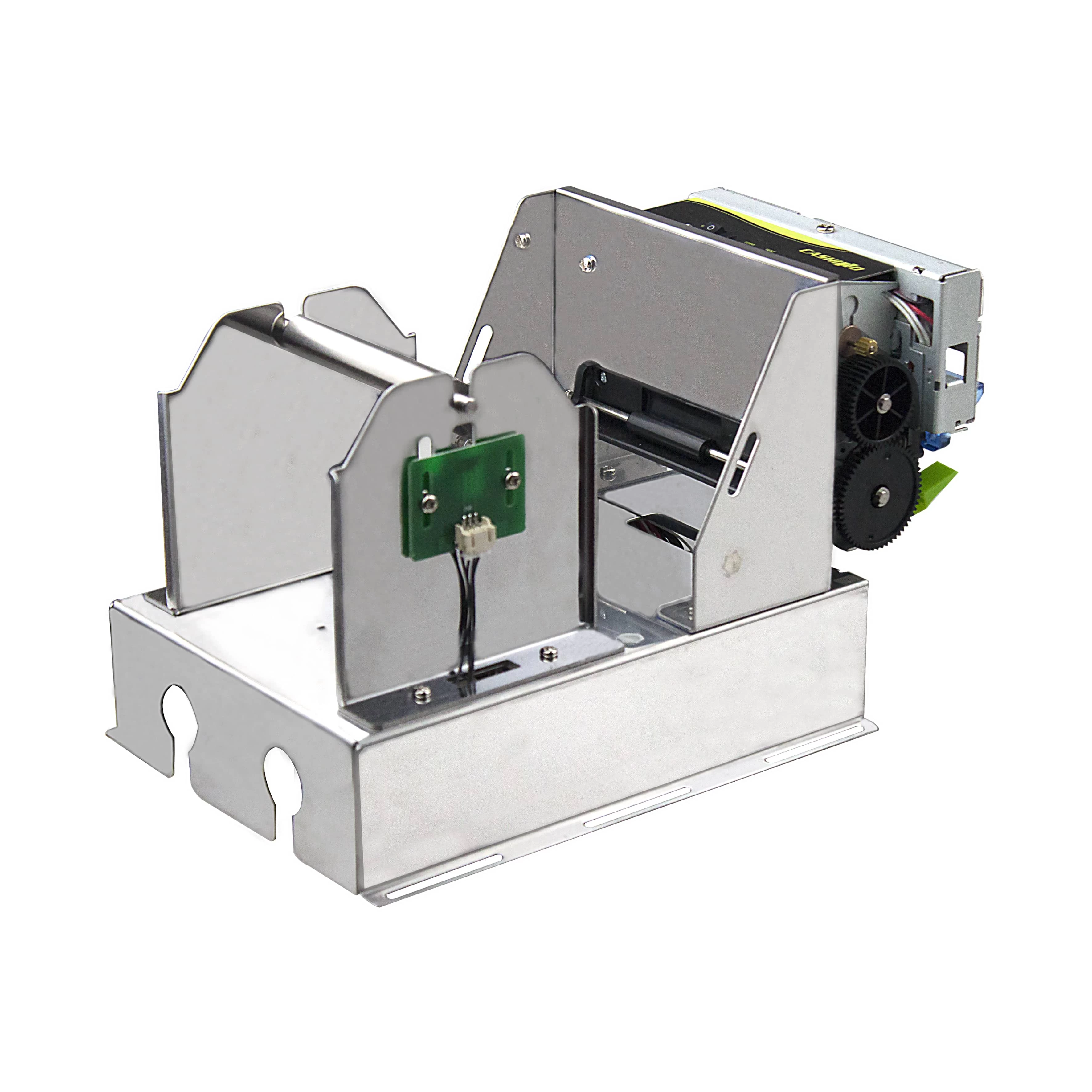

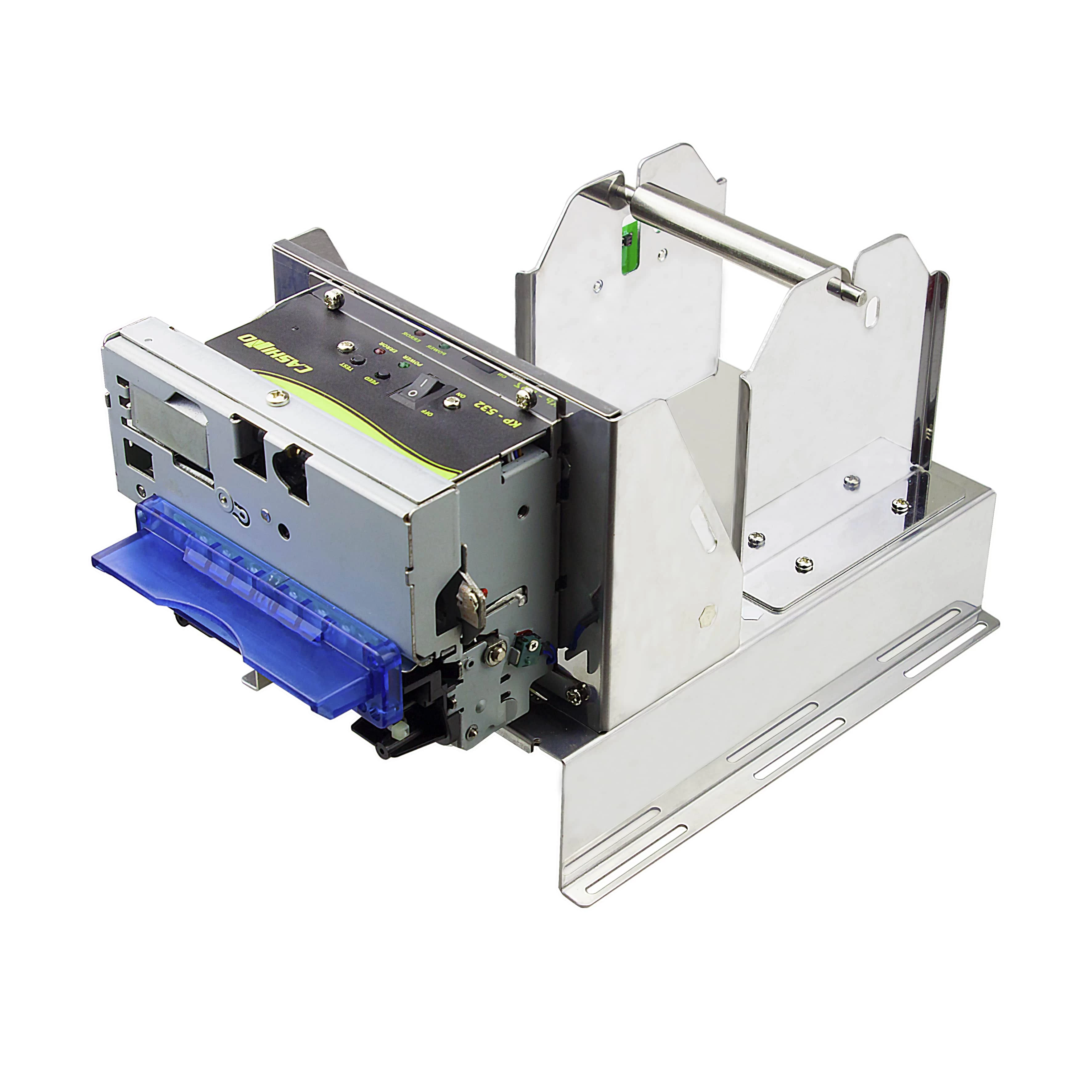

KP-532 80mm width high speed Kiosk Thermal Printer
Feature:
Serial+Parallel+USB interface
Full or partial cutter
Compatible with EPSON M-T532
DC24V power supply
LED bezel support
Specification:
| Model No. |
KP-532 |
| Print |
Printing method |
Thermal Line Printing |
| Printing speed(Max.) |
200mm/s |
| Resolution |
203dpi(8dots/mm) |
| Printing width |
72mm |
| Character |
Character Set |
ACSII,GBK,BIG-5 |
| Print Font |
ANK:9×17,12×24,Chinese:24×24 |
| Character per line |
Font A:32;Font B:42 |
| Paper spec. |
Paper Type |
Thermal Paper |
| Paper Width |
80mm |
| Paper Thickness |
0.055-0.20mm |
| Paper Roll Diameter(O.D) |
Max:150mm |
| Roll Core Inner Diameter |
18mm(min) |
| Reliability |
TPH |
100km or more(12.5% print ratio) |
| Cutter |
0.055-0.09mm paper : 1million |
| 0.10-0.20mm paper: 0.5milion |
| Cutting Method |
Full and Partial cut |
| Interface |
Serial+Parallel+USB |
| Power Supply |
DC24V, 2A(average) , Peak:8A |
| Barcode |
1D |
UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93 |
| 2D |
QR Code,PDF417 |
| Environment |
Operating Temp |
0°C~50°C |
| Operating Humidity |
10%~80% |
| Storage Temp |
-20°C~60°C |
| Storage Humidity |
10%~90% |
| Outline Dimension (WxLxH) |
147.6mm*256.5mm*146mm(with LED bezel, w/o paper roll) |
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
