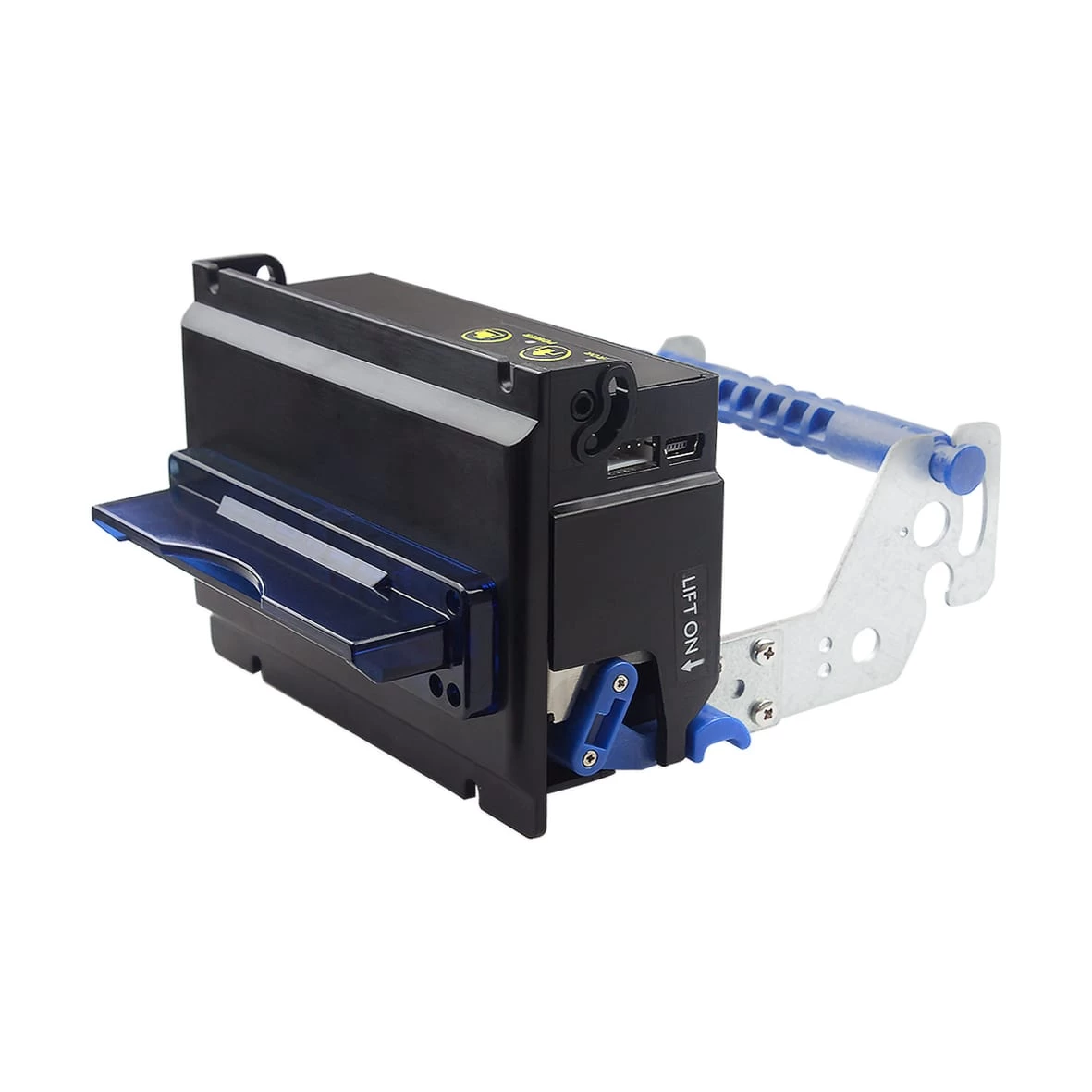

KP-347 80mm Kiosk Thermal Printer
The KP-347 is a compact kiosk printer. Its roll holder separates from the printer body, which made paper roll be placed horizontally or vertically, suitable for all types of kiosks. It features print speeds up to 6 inches per second.
Feathures:
1. 150mm/sprinting speed
2. 80mm kiosk/ticket printer module
3. Auto paper loading type
4. Auto Feeding/easy-paper loading
5. Full or partial cutter
6. Near paper ending detector
7. Take out paper sensor
Specifications:
| Model No. |
KP-347 |
| Print |
Printing method |
Thermal Line Printing |
| Printing speed |
150mm/s |
| Resolution |
203dpi(8dots/mm) |
| Printing width |
72mm |
| Character |
Character Set |
ACSII,GBK,BIG-5 |
| Print Font |
ANK:9×17,12×24,Chinese:24×24 |
| Character per line |
Font A:32;Font B:42 |
| Paper spec. |
Paper Type |
Thermal Paper |
| Paper Width |
80mm |
| Paper Thickness |
0.055-0.09mm |
| Paper Roll Diameter(O.D) |
Max:80mm |
| Roll Core Inner Diameter |
13mm(min) |
| Reliability |
TPH |
100km or more(12.5% print ratio) |
| Cutter |
1,000,000 cuts or more |
| Cutting Method |
Full and Partial cut |
| Interface |
Serial+USB, Cash Drawer port (optional) |
| Power Supply |
DC24V, 2A(average) , Peak:4A |
| Barcode |
1D |
UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93 |
| 2D |
QR Code |
| Environment |
Operating Temp |
0°C~50°C |
| Operating Humidity |
10%~80% |
| Storage Temp |
-20°C~60°C |
| Storage Humidity |
10%~90% |
| Outline Dimension (WxLxH) |
KP-347H(Horizontal) |
110.7(W)x113.2(D)x81.2(H)mm |
| KP-347V(Vertical) |
110.7(W)x55.9(D)x138.7(H)mm |

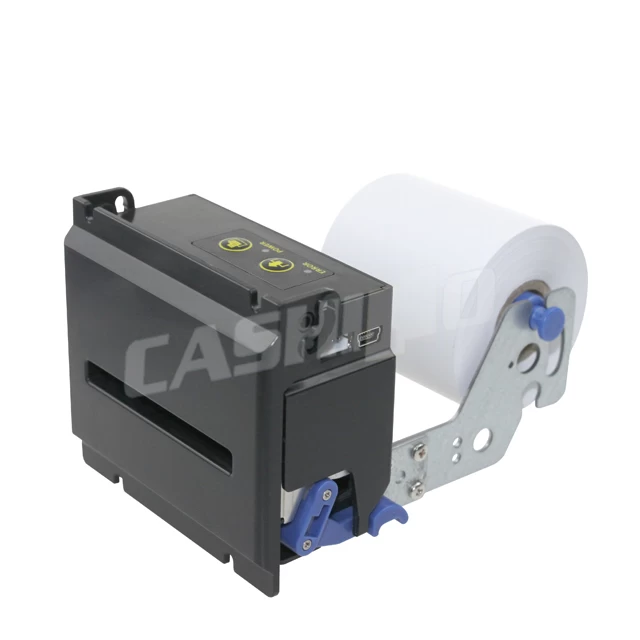

KP-347H (Horizontal):

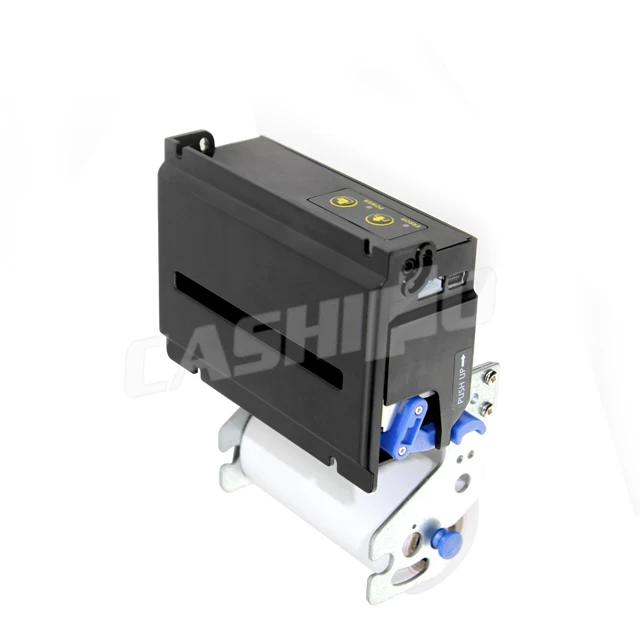

KP-347V (Vertical):
Applications:
1. Banking machines and cash dispensers
2. Vending machines
3. Queuing machines
4. Parking payment terminals
5. Self-service kiosks
6. Gas station
Company Information:
We are a professional manufacturer of thermal printers since 2011.Our main products are handheld thermal printer, impact dot matrix printer, panel thermal printer, kiosk ticket printer, POS receipt printer and label barcode printer, etc. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
