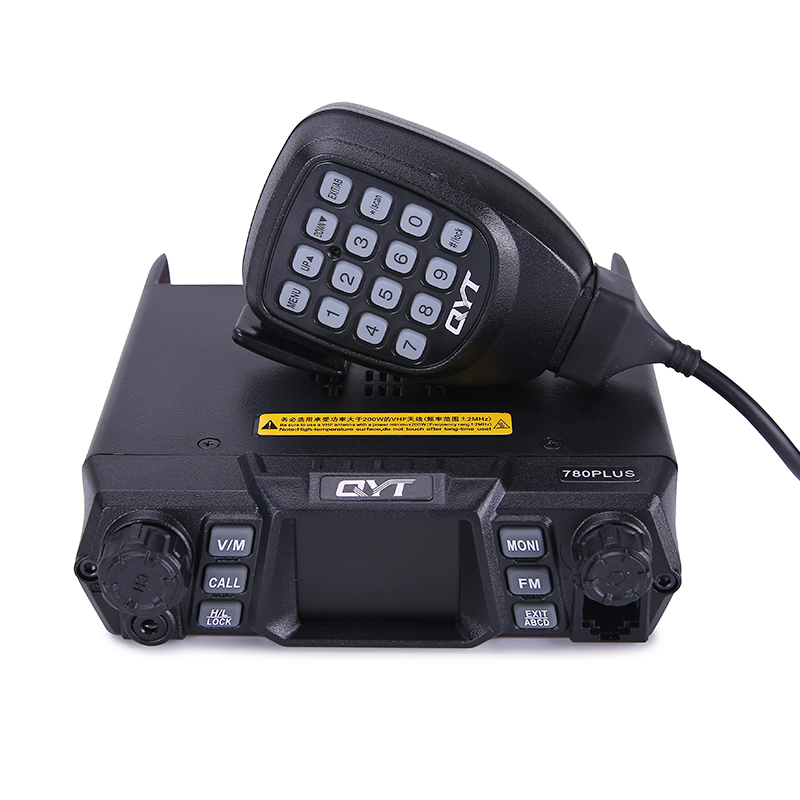

The Analog Mobile Ham Radio KT-780Plus(UHF) own fashionable appearance, with color LCD screen, is favored by large groups of users on the market. Don't just be attracted by its gorgeous appearance, it also has powerful functions. Optional 12V power supply, 75W output.
Excellent performance in steamer shipping, port programming, working on base and large truck transportation industry.
The QYT KT-780Plus(UHF) features 200 channels with CTCSS and DSC, channels scan and DTMF technology. It includes Lone worker mode, an emergency alarm and VOX capability. Programmable function keys on the console, a hand microphone with programmable keys, a built-in LEDs and a DTMF keypad.
The QYT KT-780Plus(UHF) is also repeater capable and compatible with all brand analog walkie talkie and mobile ham radios.
Power cable besides the standard cigarette lighter power supply, we also have the Adapter which use household electricity consumption input voltage of 220-240V AC/DC and an output voltage of 13.8V DC±15%.
USB Programming Cable to connects your QYT radios to your computer and software to programming your radio!
The KT-780Plus(UHF) Kit includes:
-
Radiostation
-

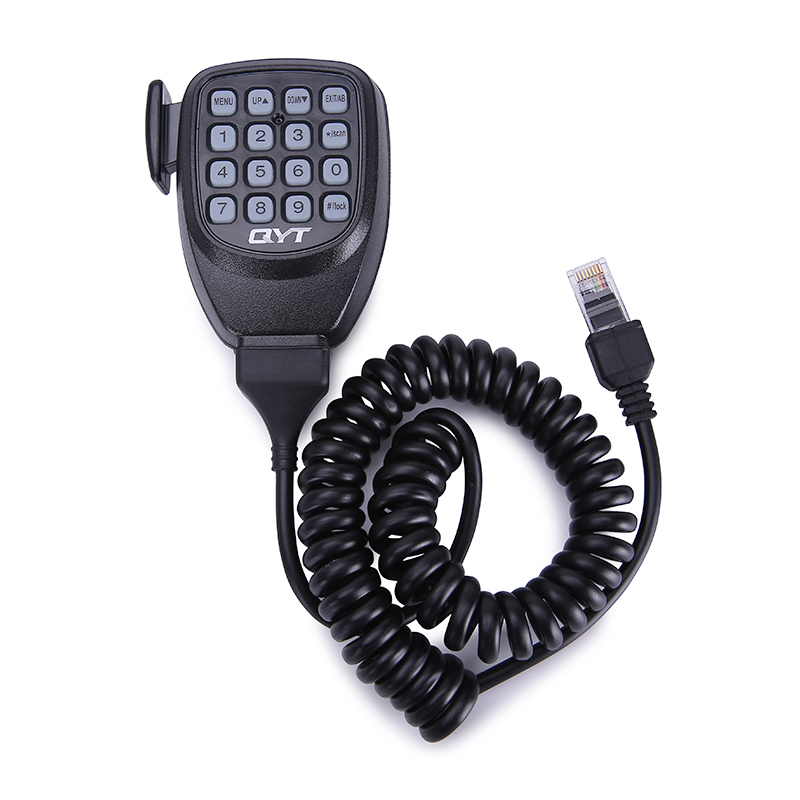

Microphone
-

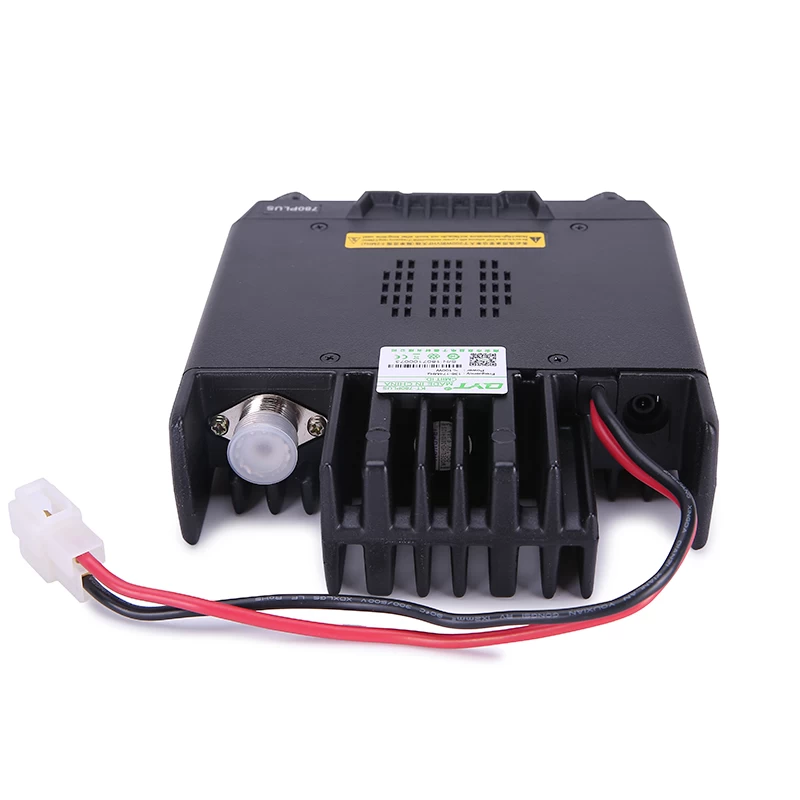

DC power cable
-

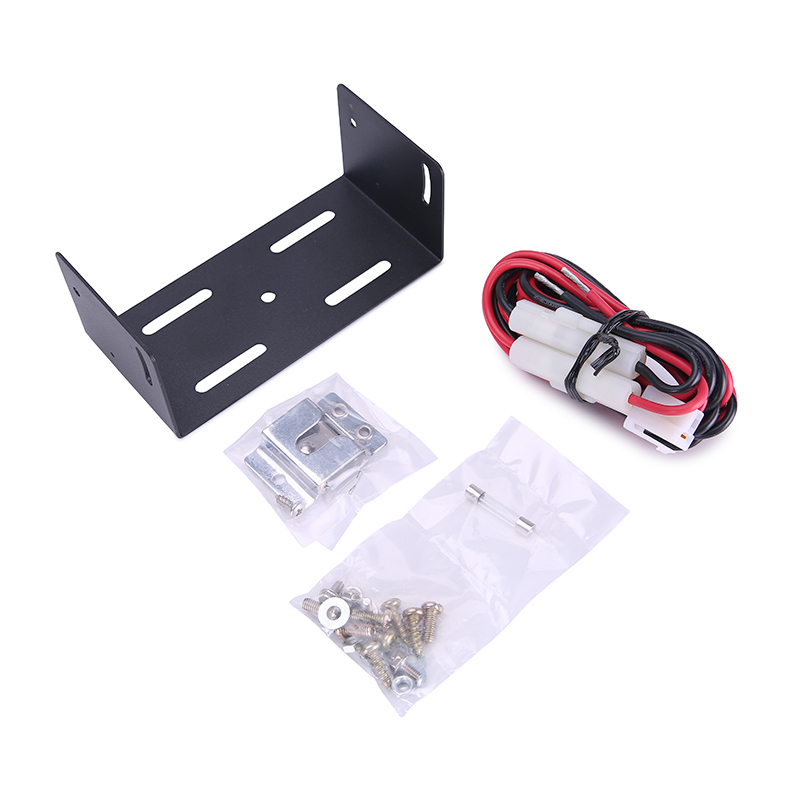

Mobile mounting bracket
-
Mounting hardware
-
User's manual
|
General Specifications
|
|
Frequency Range
|
UHF: 400-480MHz
|
|
Channel Capacity
|
200 channels
|
|
Channel Spacing
|
25KHz, 20KHz, 12.5KHz
|
|
Channel Step
|
2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz
|
|
Working Voltage
|
13.8V DC ±15%
|
|
Squelch way
|
CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF
|
|
Frequency Stability
|
±2.5ppm
|
|
Operating Temperature
|
-20℃~+60℃
|
|
Dimension(W*H*D)
|
140(W)*43(H)*172(D)mm
|
|
Weight
|
1.03KG
|
|
Receiver (ETSI EN 300 086 Standardized.Test)
|
|
|
Wide Band
|
Narrow band
|
|
Sensitivity
|
≤0.25μV
|
≤0.35μV
|
|
Channel chioce
|
≥70dB
|
≥60dB
|
|
Intermodulation
|
≥65dB
|
≥60dB
|
|
Spurious Rejection
|
≥70dB
|
≥70dB
|
|
Audio response
|
+1~ -3dB(0.3~3KHz)
|
+1~ -3dB(0.3~2.55KHz)
|
|
Signal to noise ratio
|
≥45dB
|
≥40dB
|
|
Audio distortion
|
≤5%
|
|
Audio output power
|
≥2W±10%
|
|
Transmitter (ETSI EN 300 086 Standardized.Test)
|
|
|
Wide Band
|
Narrow band
|
|
Output power
|
UHF H 80W (16A) M 40W (9A) L 20W (6A)
|
|
Modulation Mode
|
16KΦF3E
|
11KΦF3E
|
|
Channel Power
|
≥70dB
|
≥60dB
|
|
Signal noise ratio
|
≥40dB
|
≥36dB
|
|
Parasitic harmonic
|
≥60dB
|
≥60dB
|
|
Audio response
|
+1~ -3dB(0.3~3KHz)
|
+1~ -3dB(0.3~2.25KHz)
|
|
Audio distortion
|
≤5%
|
