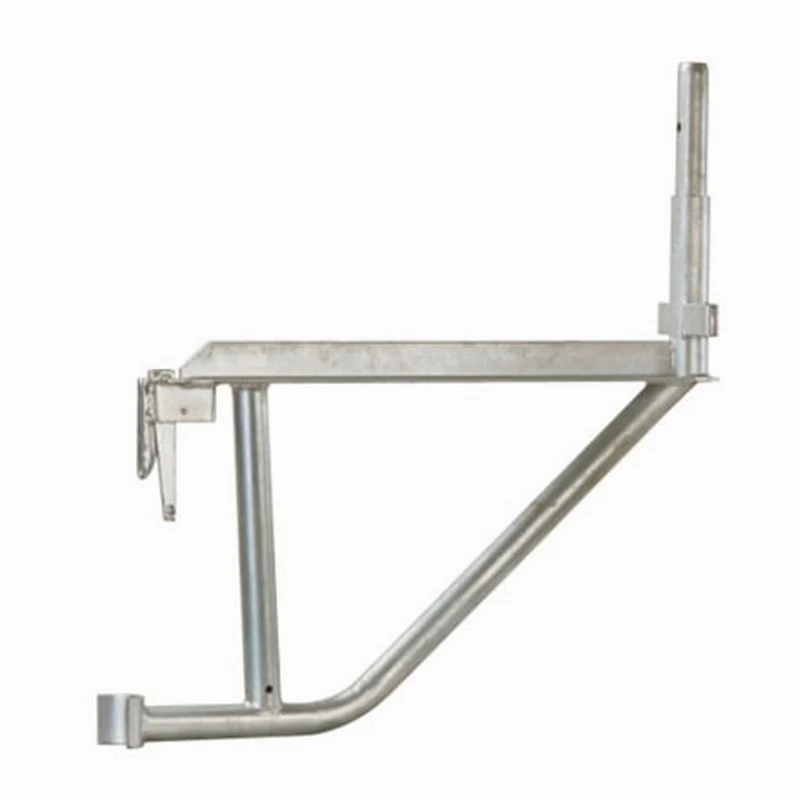

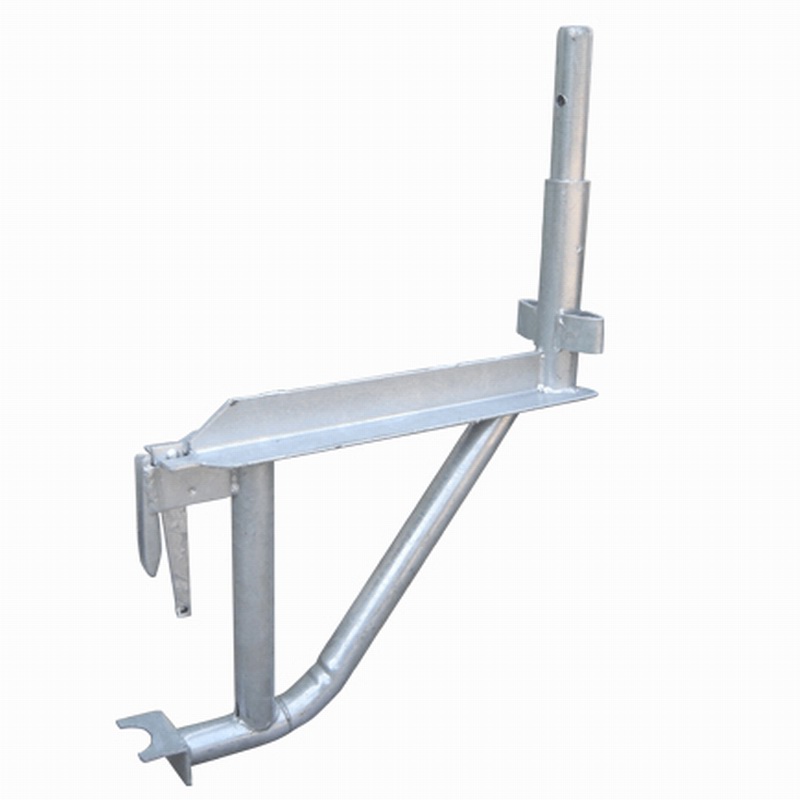

Kwikstage Scaffolding System Hop Up Bracket with Post and Spigot

Kwikstage Scaffolding Hop Up Brackets are used to give an extra work platform for scaffolding. Normally located on the inside face of the scaffold, these are 1, 2 and 3 board sizes. Hop Up Bracket with Post and Spigot allows to install scaffold vertical and ledger for safety railing.


  • MaterialSteel

Kwikstage Scaffolding Hop Up Bracket with Post and Spigot

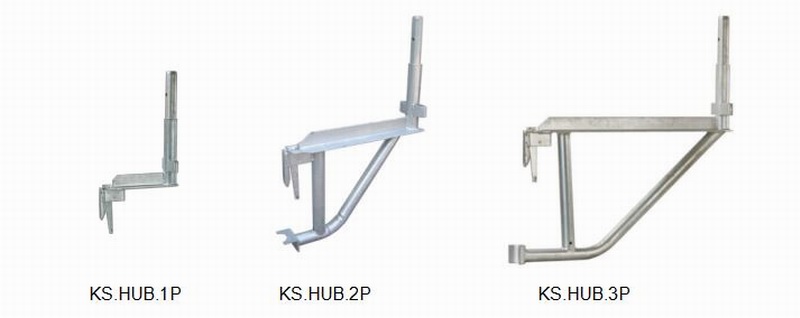

Code Description Material Weight(kg) Weight(lbs)

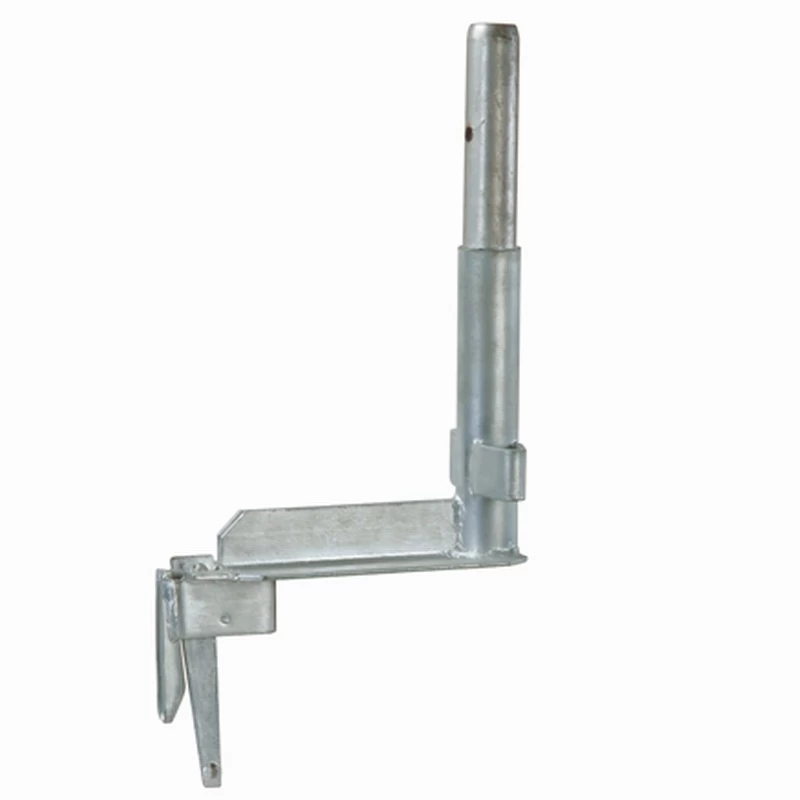

KS.HUB.1P Hop Up Bracket 1 Board w/Post Angle steel 50x5mm; Q235 3.82  8.42
KS.HUB.2P Hop Up Bracket 2 Board w/Post 7.62  16.80
KS.HUB.3P Hop Up Bracket 3 Board w/Post 11.03  24.32



Features:

Dimension: Angle Steel 50x5mm. 4mm thickness angle steel is also available by request.

Supporting tube can be circle tube or square tube.

Steel Grade: Q235

Wedge Pin: t=6mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

Quality Standard: AS/NZS 1576

Welding Process: CO2/Mixture Gas Shielding Welding
