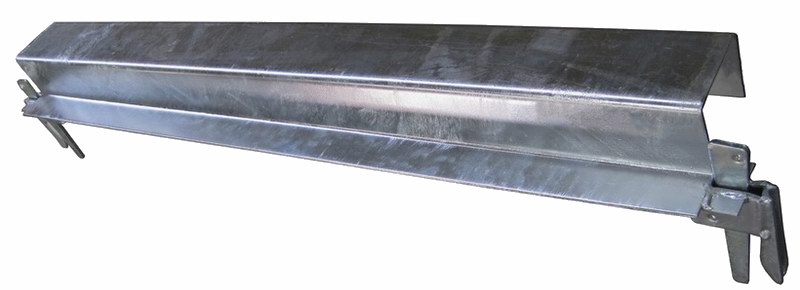

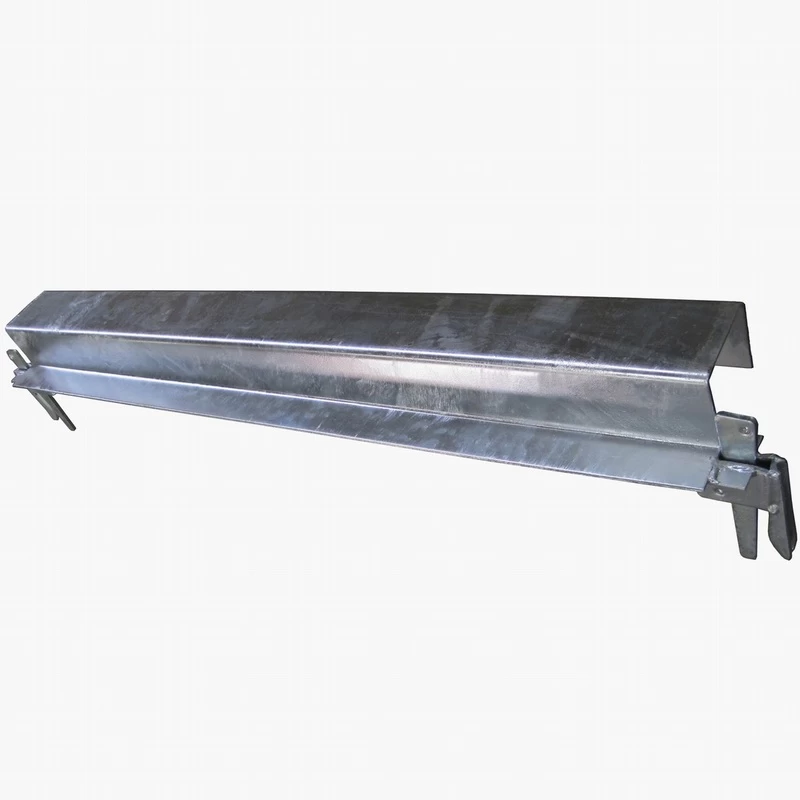

Kwikstage System Scaffolding Return Transom

Kwikstage Scaffolding Return transom allows a 90 degree turn in the scaffold and sit over the ledger allowing boards to run at right angles in adjacent bays.  It can also be used to change direction. The use of Return Transoms eliminates the " gap " between runs at right angles.


  • MaterialSteel

Kwikstage Scaffolding Return Transom

Code Description Material Size Weight (kg) Weight (lbs)
KS.RT.244 2.44M Return Transom Plate thickness 5mm; Q235 2438mm (8') 29.66  65.40
KS.RT.183 1.83M Return Transom 1829mm (6') 22.17  48.88
KS.RT.152 1.52M Return Transom 1524mm (5') 18.56  40.92
KS.RT.127 1.27M Return Transom 1268mm (4'2") 15.52  34.22
KS.RT.122 1.22M Return Transom 1219mm (4') 14.94  32.94
KS.RT.091 0.91M Return Transom 914mm (3') 11.32  24.96
KS.RT.076 0.76M Return Transom 762mm (2'6") 9.52  20.99

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted


Quality Standard: AS/NZS 1576


Welding Process: CO2/Mixture Gas Shielding Welding

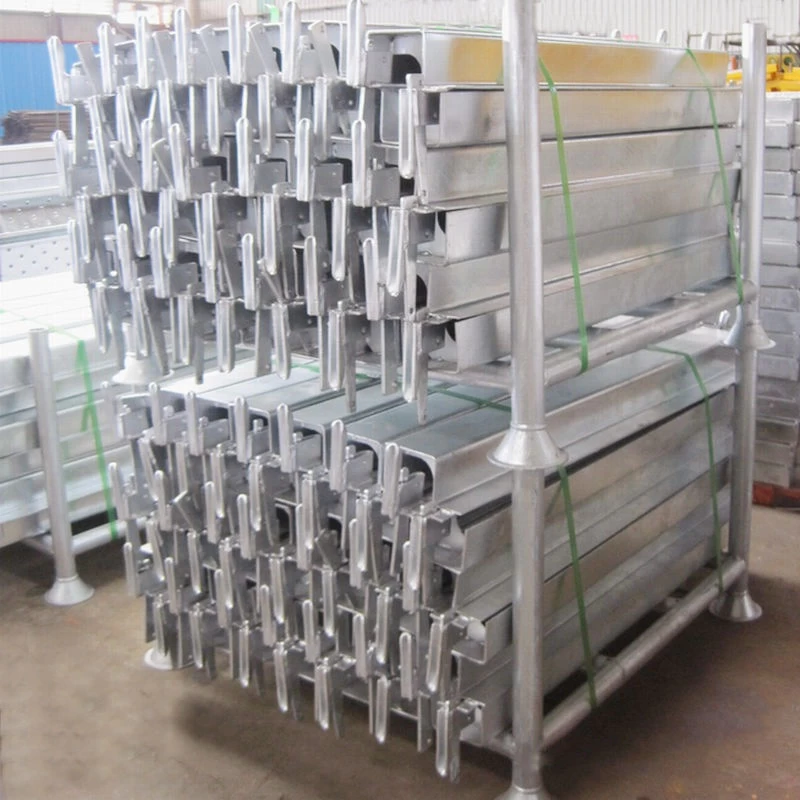

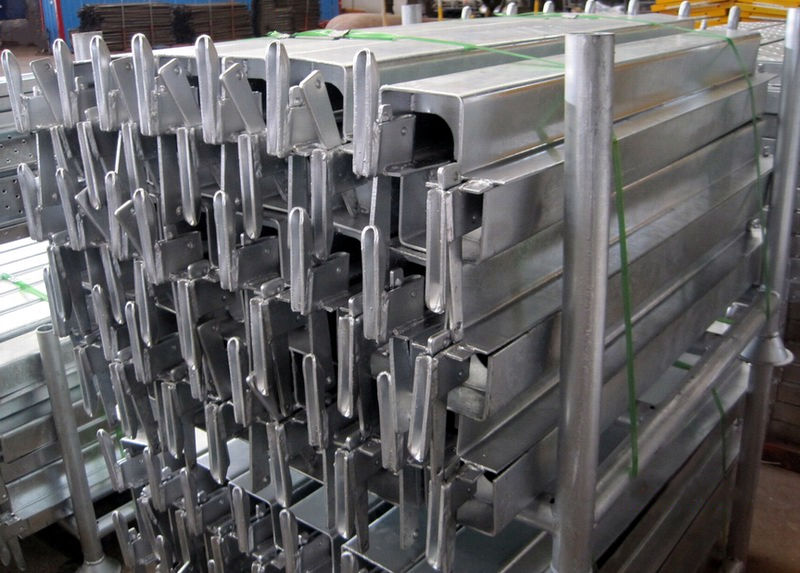

Kwiksatge Scaffolding Packing and Loading:
