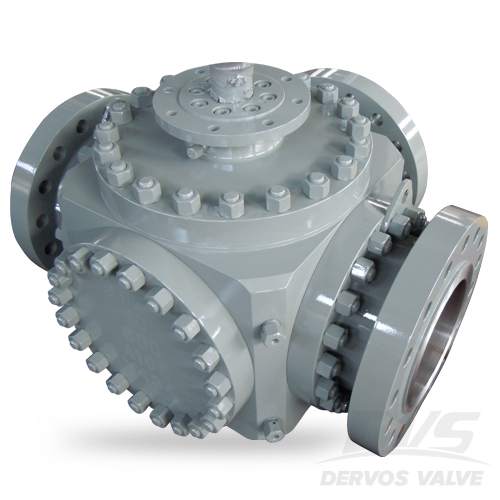

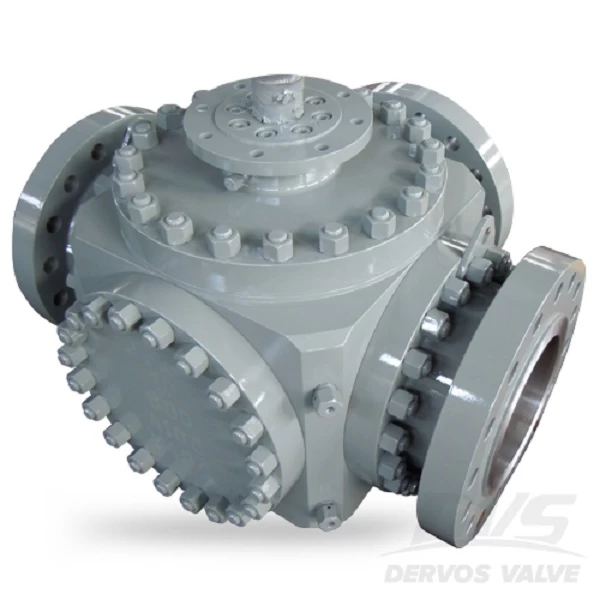

L Type Three Way Ball Valve 600LB 12 Inch A105N


  • MaterialForged Steel
  • Method of OperationGearbox

The L port 3-way ball valve could connect the port in the center with any other two side ports. This multi-way ball valve is designed as per API 6D with 12 inch in size and Class 600 in pressure rating, made of forged steel A105N.


Quick Detail

Type

Ball Valve

Size

12 Inch

Pressure

ANSI 600, Class 600, 600LB

Construction

3 Way Ball Valve, L Port

Connection

RF Flange

Operation Mode

Gear Operated

Body Material

A105N

Ball Material

SS304

Manufacture and Design

API 6D

Pressure & Temp

ASME B16.34

End to End

ASME B16.10

End Connection

ASME B16.5

Inspection

API 6D, API 598

Temperature Range

-29℃~+120℃

Medium

Water, Oil, Gas


Product Range

Body material: Carbon Steel (CS), Stainless Steel(SS), Alloy Steel.

Normal diameter: 2"~24"

End connection: Flange, Weld

Pressure range: 150 lb~1500 lb

Operation: Lever, Gearbox, Electric Actuator, Pneumatic Actuator

L Port Three Way Ball Valve
