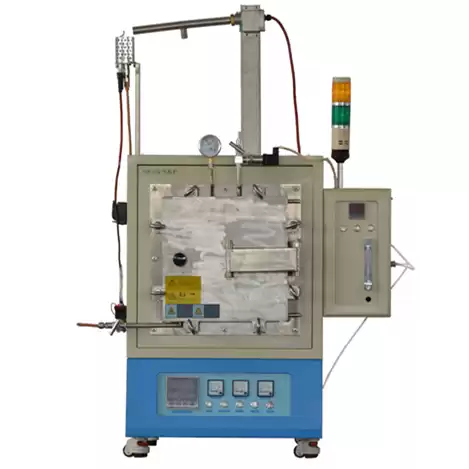

Lab 1200C High Temperature Hydrogen Atmosphere Furnace

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • Warranty Two years limited warranty with lifetime technical support
  • Certificate CE, IOS, ROHS, SGS, UL Certificate

Lab 1200C High Temperature Hydrogen Atmosphere Furnace

Detailed technical parameters

Model

1200C-I

1200C-II

1200C-III

Power

4KW

9KW

16KW

Chamber size(mm)

300X200X200

400X300X300

500X400X400

Dimension(mm)

520X610X765

700X 700X880

810X850X1060

Supply voltage

220V

380V

Phase

single phase

three phase

Heating element

Resistance wire Sweden Kanthal A1 (resistance wire can promise 2 years warranty)

Control mode

UAV program temperature control instrument (standard)

1, 30-stage program temperature control intelligent PID adjustment.

2, with over-temperature protection, the electric furnace heating circuit is automatically cut off when the break-up protection is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown,

The AC relay on the main circuit will be automatically disconnected, the main circuit will be disconnected, the ON light on the panel will be off, the OFF light will be on, and the electric furnace will be limited.

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5, the meter has the function of temperature self-tuning


(replacement of imported instrument requires extra payment, optional)



FP93 temperature controller              EUROTHERM                 Touch screen instrument

(shimazu, Japan)

Chamber material

 1. High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Formed by Japanese technology.

3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by the thermal software.

Control precision

 +/- 1℃

Trigger

Phase-shifted trigger

Electric appliance

Zhejiang chint

Silicon controlled

106/16ESEMIKRON

Maximum temperature

 1200℃

Rated temperature

 1100℃

Heating rate

 ≤20℃/ Min(it can be modified as required)

Recommended rate of temperature rise

≤15℃/ Min

Thermocouple model

K Type

Peripheral surface temperature

   ≤45℃

Open cover protection system

The furnace is equipped with a travel switch, which automatically cuts off the main power when the cover is opened, effectively ensuring the safety of the user.



H2 furnace


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
