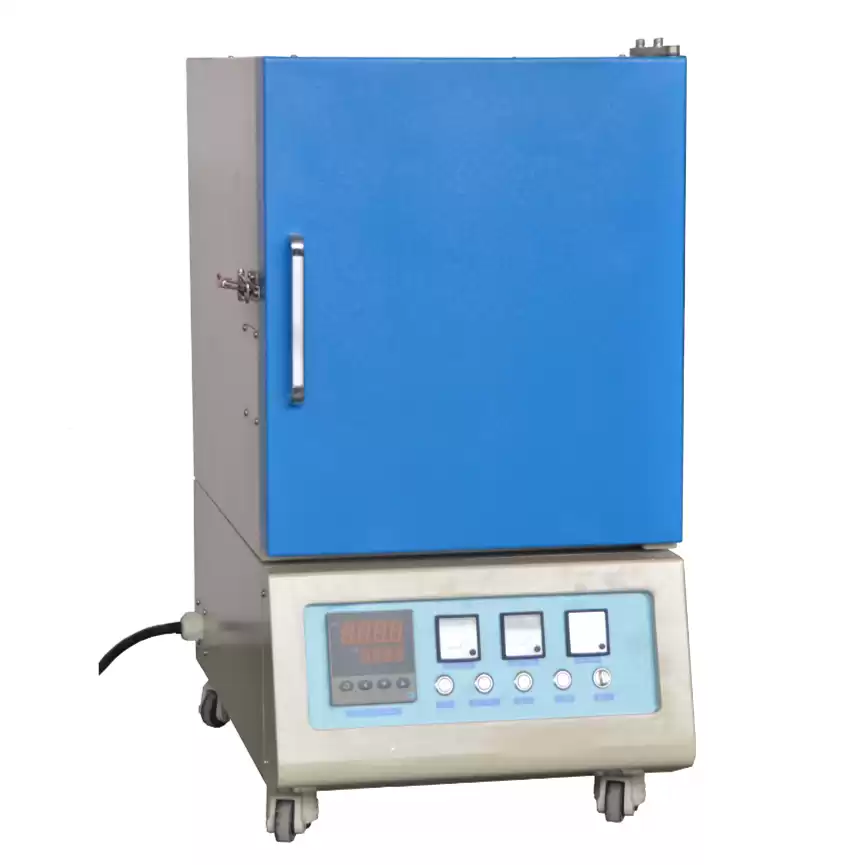

Lab 1400C Box Muffle Furnace with Many Chamber Size Available
Detailed technical parameters
|
Modle
|
1400-I
|
1400-II
|
1400-III
|
1400-Ⅳ
|
1400-Ⅴ
|
1400-Ⅴ
|
|
Power
|
3 KW
|
5 KW
|
7KW
|
9 KW
|
12KW
|
18KW
|
|
Chamber（DXWXH）
|
160X150X150mm
|
200X200X200mm
|
300X200X200mm
|
300X250X250mm
|
400X300X300mm
|
500X400X400mm
|
|
Dimensions
|
520X490X880
|
564X530X930
|
600X630X970
|
620X630X1020
|
670X760X1110
|
840X870X1740
|
|
Supply voltage
|
220V
|
220V
|
220V
|
380V
|
380V
|
380V
|
|
Phase
|
single phase
|
three phase
|
|
Heating element
|
Silicon carbide rod
|
|
Control mode
|
UAV
program temperature control instrument
1,
30-stage program temperature control intelligent PID adjustment.
2. With
over-temperature protection, the electric furnace heating circuit is
automatically cut off when the temperature is over-temperature or broken,
(when the electric furnace temperature exceeds 1420 degrees or the thermocouple
is blown, the AC relay on the main circuit will be automatically
disconnected, the main circuit is broken. On, the ON light on the panel is
off, the OFF light is on, and the limited protection electric furnace).
3, with
485 communication interface (standard when purchasing software)
4, with
power-off protection function, that is, when the power is turned on after the
power is turned off, the program does not start from the starting
temperature, but the furnace temperature rises from the time of power failure.
5, the meter has the function of temperature self-tuning
|
|
Heating rate
|
≤30℃/ Min
|
|
Recommended rate of temperature rise
|
15℃/ Min
|
|
Chamber material
|
1600 alumina polycrystalline fiber
|
|
Control precision
|
+/- 1℃
|
|
Maximum temperature
|
1400℃
|
|
Rated temperature
|
1350℃
|
|
Peripheral surface temperature
|
≤35℃
|
|
Thermocouple Type
|
S
|
|
Trigger
|
Phase-shifted trigger
|
|
Electric appliance
|
Zhejiang chint
|
|
Silicon controlled
|
106/16ESEMIKRON
|
|
Travel switch
|
A travel switch is installed on the furnace
door. When the furnace door is opened, the power supply is automatically cut
off to prevent the risk of electric shock from hitting the heating element.
|
