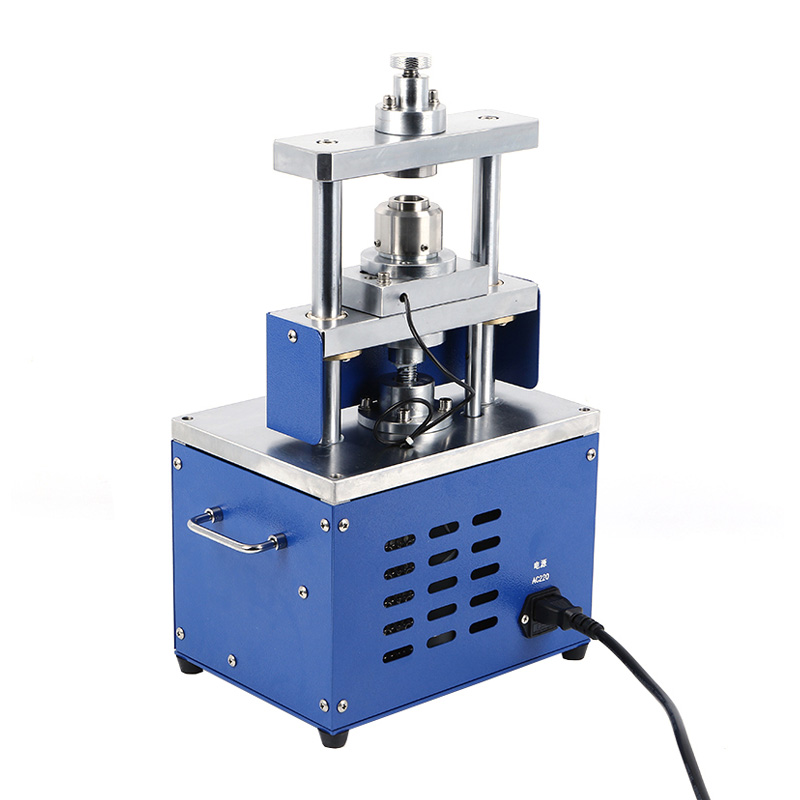

Lab Automatic Electric Coin Cell Crimping Machine for All CR20XX Button Battery
FAQ
Q: Is the crimper suitable to work in Argon atmosphere?
A: Yes, you can use it in a Argon filled glovebox.

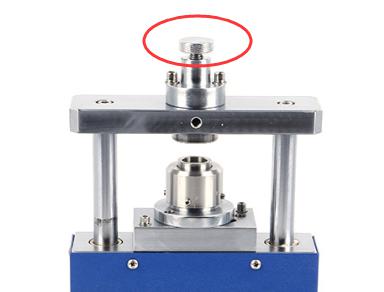

Q:Could you also describe the function of the screw in the picture?
A: It is using for taking out the cases when it is stucked during the crimping process.Clockwise rotation and you can take cases out, and then contrarotate the screw back to the previous position.
Brief Introduction
This crimper can be used for most kinds of button battery automatic crimping. Standard configuration is used for assembling and disassembling CR20XX series coin cell cases. The equipment has the advantages like small size, easy operation, stable crimping etc. Equipped with different mould can also be used for other lab use like pressed powder tablet making, pressing and thinning the metal sheet etc.
Features

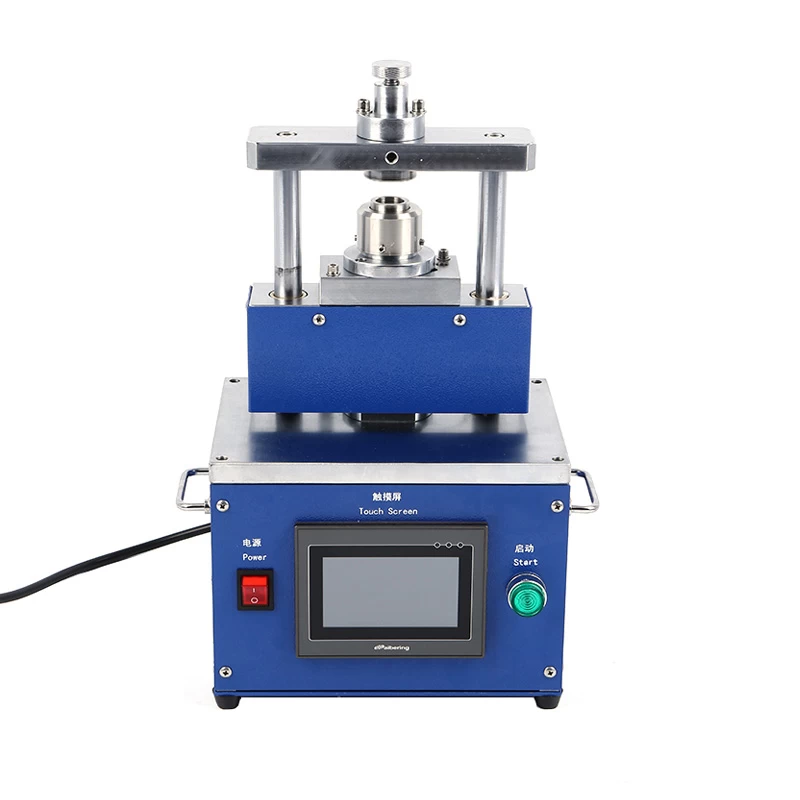

1.Electric operation with touch screen display and control.
2.High precision mould design to ensure stable sealing.
3.Simply change crimping die to disassembling die.
4.Small size can be put inside the glove box through Dia.360 antechamber.
5. It has the advantages of small size, convenient operation, accurate molding, beautiful appearance, easy maintenance.
Technical Parameter
|
Model
|
Lab Electric Coin Cell Crimping Machine AOT-ECM-20
|
|
Voltage
|
110-240V AC 50/60Hz
|
|
Die Set &
Compatibility
|
1.Assembling and disassembling dies for CR2032, CR2025, & CR2016 coin cells.
2.Please read operation manual before you change crimping dieto disassembling die.
3.Optional Die CR1220, CR2325 or CR2450,AG3, AG5
|
|
Structure
|
Heavy Duty Steel Platform,High strengthen chrome steel or alloy aluminum, the surface treated through environmental electroplating and painting and never rusts.
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Maintenance
Notes
|
Electrolyte are highly corrosive materials, and therefore the die set must be cleaned
with alcohol after use to avoid corrosion and maintain the equipment's integrity.
|
|
Dimension
|
250mm*185mm*450mm
|
|
Net Weight
|
30 kg
|
|
Warranty
|
One Year limited warranty with lifetime support
|
※ Caution
1. Strictly carry out the operation of the mold without the battery case, which will cause damage to the mold. The company is not responsible for the damage caused.
2. It is necessary to regularly check whether the upper die on the front of the template is locked. If it is loose, it needs to be tightened before use.
3. After use, please clean the mold in time to prevent the electrolyte from corroding the mold.
