Lab Digital Temperature Controlled Recirculating Chiller
TMAX-KJ6200 recirculating chiller provides a clean, reliable source of temperature-controlled fluid for both open tanks and closed loop systems up to 58L/min ( 15 G/min ). It eliminates scale buildup, sewerage cost, and tap water cooling expenses.
This recirculating chiller provides high cooling at low cost and has a convenient digital reading and setting display. The standard magnetic drive centrifugal pump quietly produces high flow at moderate pressure. Positive displacement pump models provide less flow but have higher adjustable pressure for more demanding applications. Chiller has a temperature stability of ± 0.3°C and four wheels on the bottom for easy moving. Temperature range can be adjusted from 5 to 35°C.
Specification
|
Power Supply
|
AC 208 -240V ( 50Hz or 60Hz can be selected in options bar ).
|
|
Max Power Input
|
800W
|
|
Cooling Capacity
|
5004W (17500Btu/hour)
|
|
Compressor
|
Rotary Compressor (1.68 KW)
|
|
Refrigerant
|
R22
|
|
Temperature Control
|
5~30 °C
|
|
Temperature Accuracy
|
± 0.3 °C
|
|
Heating Exchanger
|
Stainless steel
|
|
Water Flow Rate (Head Pressure)
|
58 Liter / minute ( 28 meters high, 40psi )
|
|
Water Tank
|
15 Liters made of stainless steel
Water chiller should not be connected to a system with the capacity more than the tank's capacity itself.
Use coolant instead of water for longer service life.
Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time.
|
|
Pipe Connection
|
Φ12mm PTC connector
8mm I.D, 12mm O.D. polyurethane tube is included
|
|
Water Filter
|
One water filter is included for immediate use.
Replace water filter every 3 to 6 months based on water quality and usage. Please click pictures below to learn more.
|
|
Noise
|
80dBA
|
|
Protection
|
Protected from over-temperature and Min 2 L/min water flow
|
|
Overall Dimensions
|
60 X 47 X 89 cm
|
|
Shipping Weight
|
300 lbs
|
|
Compliance
|
CE approval
MET Certification (UL 1450) is available upon request at extra cost, please contact our sales representatives for a quote.
|
|
Warranty
|
One-year limited warranty with lifetime support
|
|
Application Notes
|
Must use Rust Protection coolants to prevent rust and corrosiom The use of tap water is prohibited.
Please connect the chiller water outlet to the equipment water inlet, and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to wrong water flow direction
|

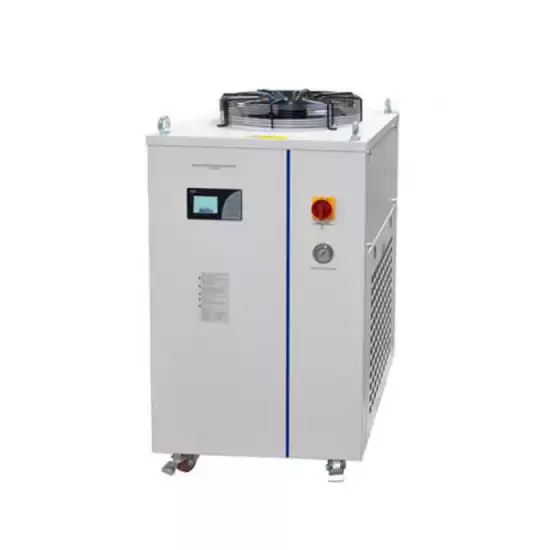

Product Images
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
