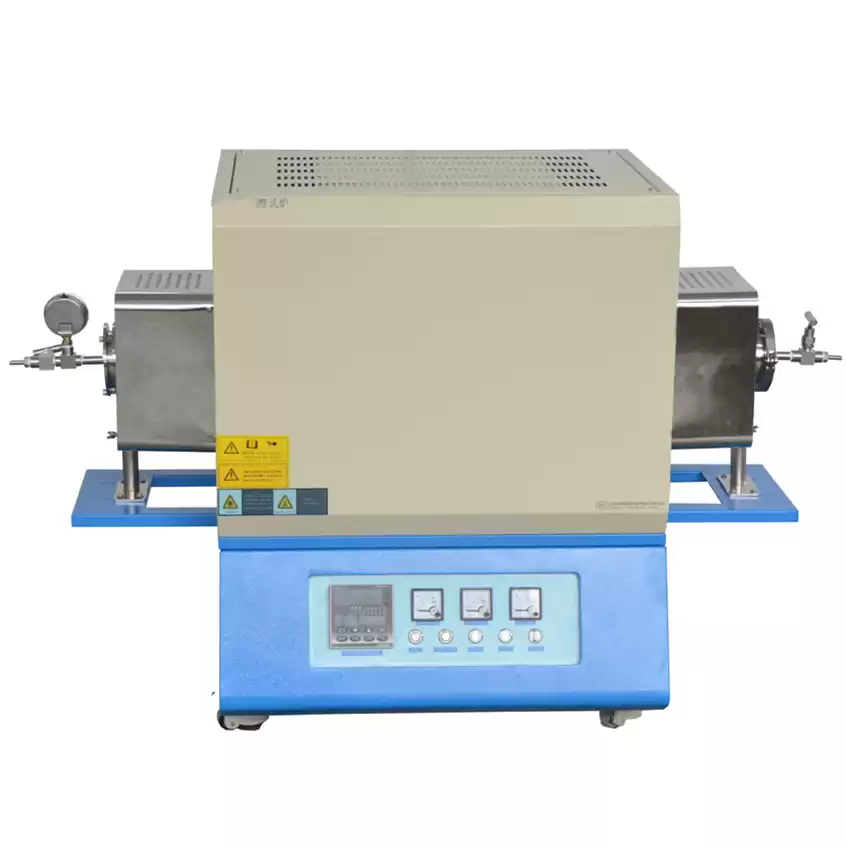

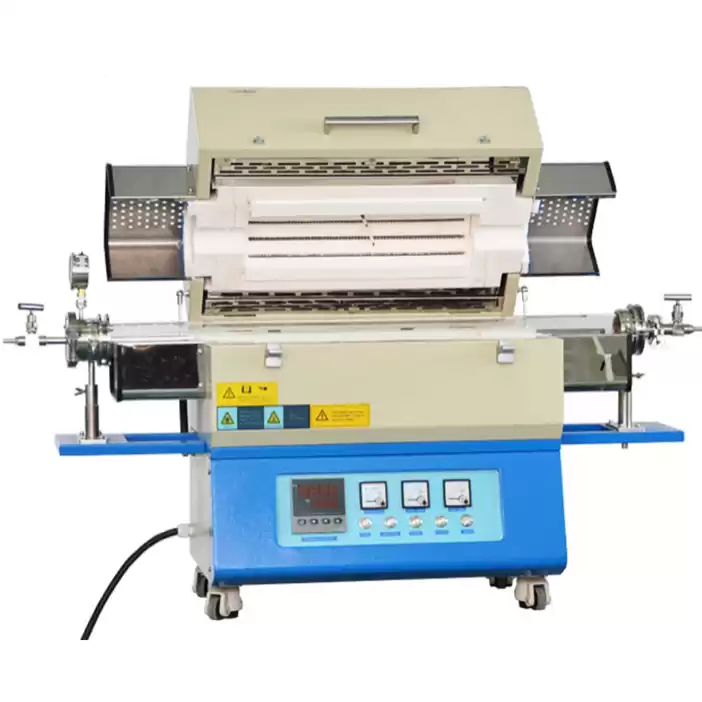

Lab High Temperature 1600C Single Zone Tube Furnace for Atmosphere Sintering
This tube furnace uses silicon
molybdenum rod as heating element, adopts double-layer shell structure and
temperature control instrument. It can carry out 30-stage program temperature
control, phase-shift trigger, and thyristor control. The furnace is made of
alumina polycrystalline fiber material. Both ends of the furnace tube are
sealed with stainless steel flanges, and gas nozzles, valves and pressure
gauges are installed on the stainless steel flanges. The vacuum degree can
reach 10-3 Pa when evacuating. The furnace has the advantages of balanced
temperature field, low surface temperature, fast rise and fall temperature
rate, and energy saving. It is an ideal product for high-temperature atmosphere
sintering, atmosphere reduction, CVD experiment, vacuum annealing in
universities, scientific research institutes, and industrial and mining
enterprises.
Detailed technical
parameters
|
Model
|
TL1600-I
|
TL1600-II
|
TL1600-III
|
|
Power
|
5KW
|
5KW
|
6kw
|
|

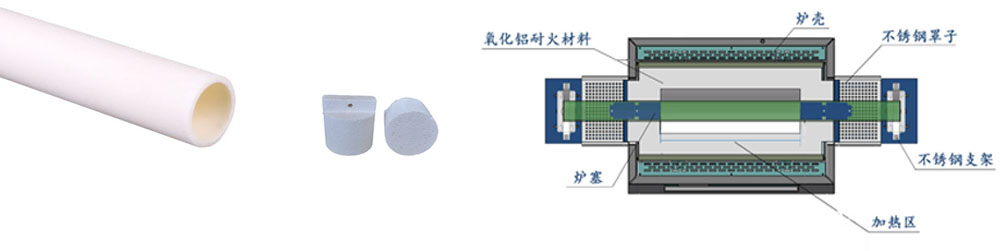

Tube size（OD）(mm)
|
High-purity corundum tube: 60/80/100*1000mm (optional
tube diameter)
Two furnace plugs are placed on each side. The
furnace plug can block the heat radiation in the center of the furnace tube
and must be placed in the correct position in the furnace before heating.
|
|
Dimension
|
1120X490X855
|
1120X490X855
|
1120X520X945
|
|
supply voltage
|
220V
|
|
phase
|
single phase
|
|
heating element
|
1800 model silicon molybdenum bar
|
|
Temperature control type
|
Use
Yudian program temperature control instrument (standard)
1.
30-segment program temperature control intelligent PID adjustment.
2.
With over-temperature protection, the electric furnace heating circuit will
be automatically cut off when the temperature is over-temperature or when the
couple is broken. ON, the ON light on the panel is off, the OFF light is on,
and the electric furnace is limitedly protected).
3.
With 485 communication interface (standard with optional software)
4.
It has a power failure protection function, that is, when the furnace is
powered on after the power is turned off, the program does not start from the
initial temperature, but starts from the furnace temperature when the power
is off.
5.The
meter has the function of temperature self-tuning
(you need to pay extra for the replacement of imported
instruments, optional)

FP93 instrument EUROTHERM instrument Touch screen instrument
(shimaden, Japan)
|
|
Chamber material
|
1. The hearth material is made of high quality
alumina polycrystalline fiber.
2. The surface of the inner furnace is coated with
imported 1800 degree high temperature alumina coating, which can increase the
emissivity and make the temperature field more balanced.
|
|
Valves and flanges
|
|
|
control precision
|
+/- 1℃
|
|
trigger
|
Phase-shifted trigger
|
|
electric appliance
|
Zhejiang chint
|
|
silicon controlled
|
106/16E SEMIKRON
|
|
Max. temp
|
1600℃
|
|
Rated temp
|
1550℃
|
|
heating rate
|
≤20℃/
Min(Can be modified as required)
|
|
Recommended rate of heating
|
≤10 ℃/
Min
|
|
Thermocouple model
|
B Type
|
|
Length of heating section
|
300mm
|
|
Temperature calibration (optional)
|
Regular temperature calibration of the tube furnace
can maintain the accuracy and uniformity of the furnace temperature. You can
buy a simple calibration tool from our company to assist you in this task.
The complete calibration kit includes standard thermocouples, temperature
calibrators, and compensation leads.
|
|
Ambient surface temperature
|
≤45℃
|
