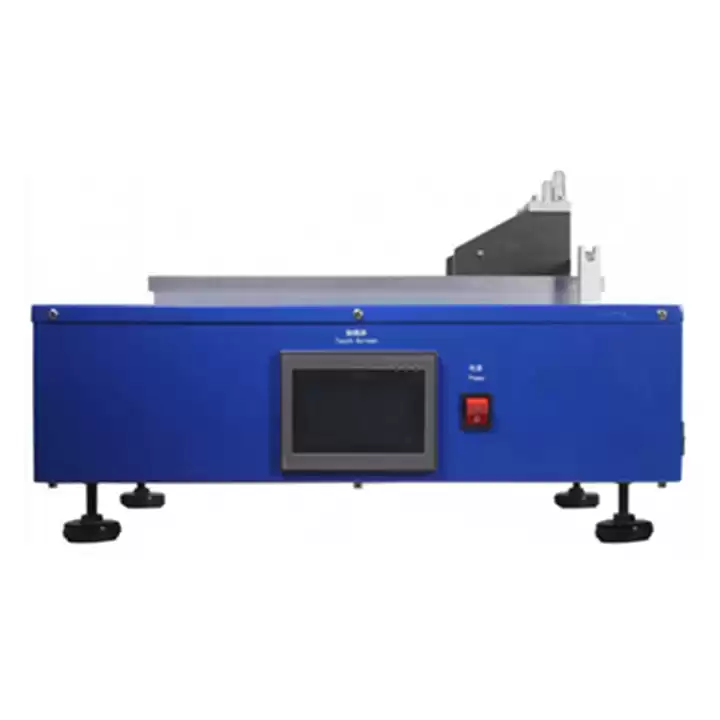

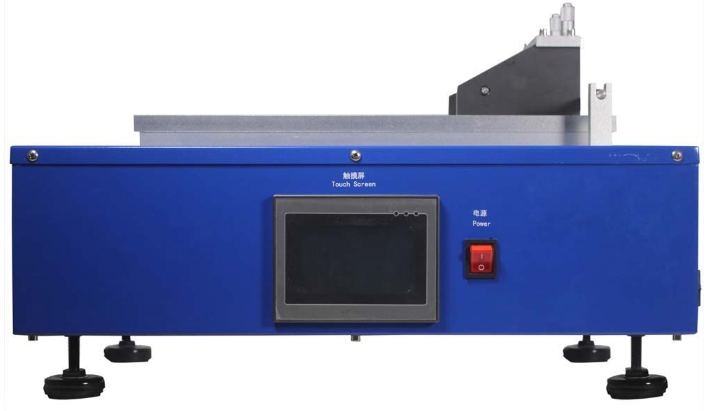

Lab Large Automatic Film Coater With Vacuum Chuck And Adjustable Doctor Blade

TMAX-TM is a CE Certified Large Automatic Film Coater with vacuum chuck designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed thickness applicators. It has a unique driving system to produce the smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when coating on the thin substrate and making uniform tape casting. One micrometer adjustable applicator is included for immediate use. This machine can be used for research on ceramic tape casting and Li-Ion battery electrode coating. We are committed to providing high quality vacuum coating machine for you!



Specifications

Model	TM300-100	TM300-150	TM300-200	TM600-300	TM500-310	TM550-250
Stroke Length	10 - 300 mm adjustable by using Adjustable Position Switch	10 - 300 mm adjustable by using Adjustable Position Switch	10 - 300 mm adjustable by using Adjustable Position Switch	10 - 600 mm adjustable by using Adjustable Position Switch	10 - 500 mm adjustable by using Adjustable Position Switch	10 - 550 mm adjustable by using Adjustable Position Switch

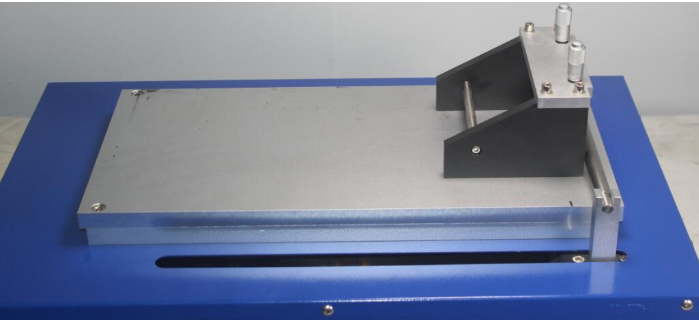

Platform	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 410mm(L) x 100mm(W)	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 410mm(L) x 150mm(W)	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 410mm(L) x 200mm(W)	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 700mm(L) x 300mm(W)	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 600mm(L) x 310mm(W)	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 650mm(L) x 250mm(W)
Accessories: Film Applicator	Optional 50 upto 250 mm width micrometer adjustable film applicator is included, with adjustable thickness from 0.01 mm - 5 mm Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating Note: Thinnest film can be achieved is > 10 micron
Optional Heating Cover Voltage and Power	110VAC or 220VAC
Traverse Speed	0 - 150 mm/sec variable Accuracy: 10mm/sec
Vacuum Pump	Vacuum pump is included
Compliance	CE Certificate
Warranty	One Year limited warranty with lifetime support
