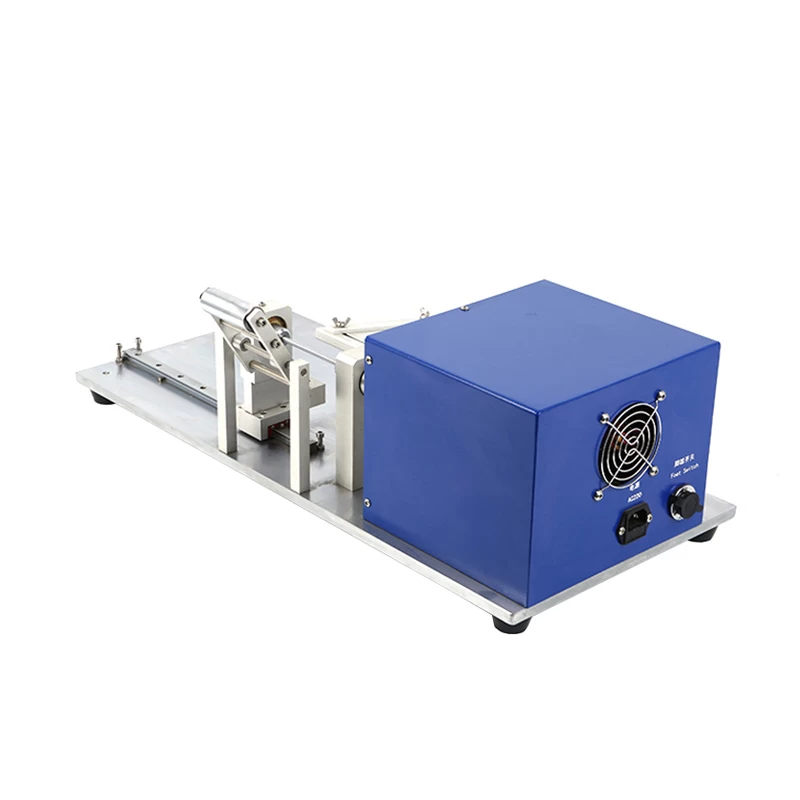

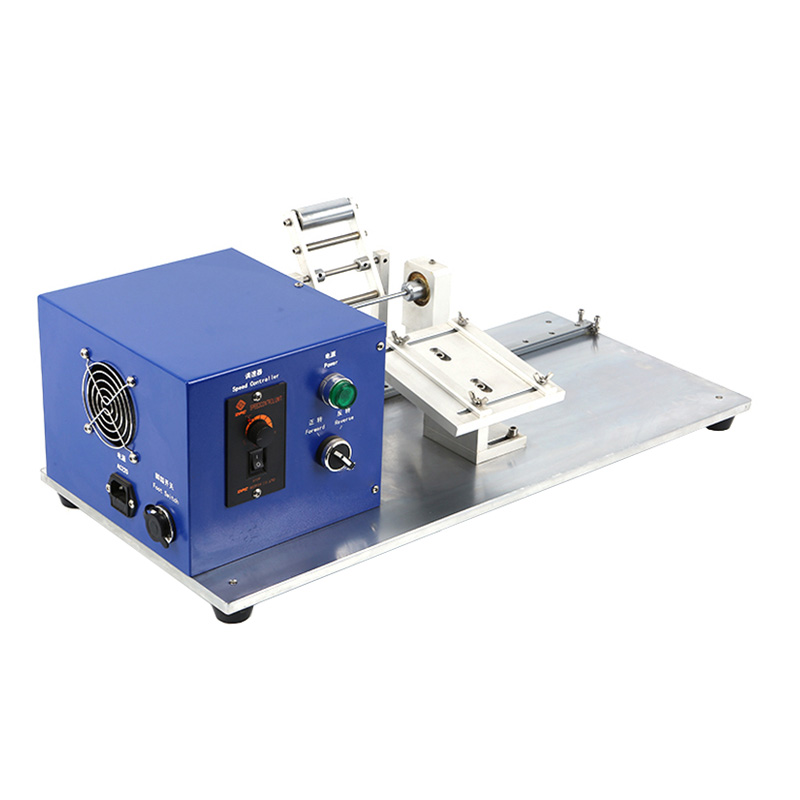

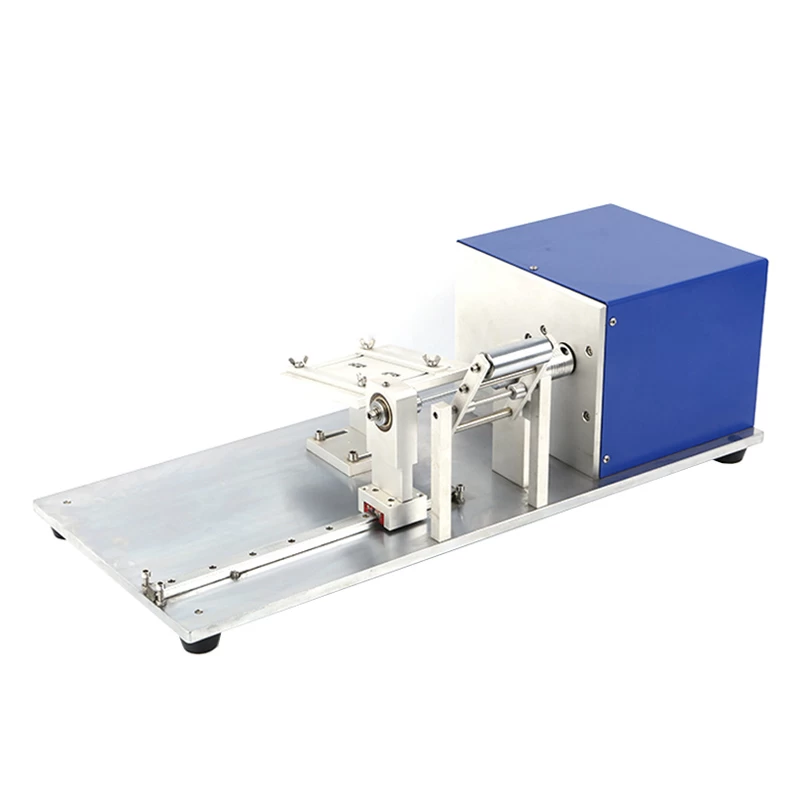

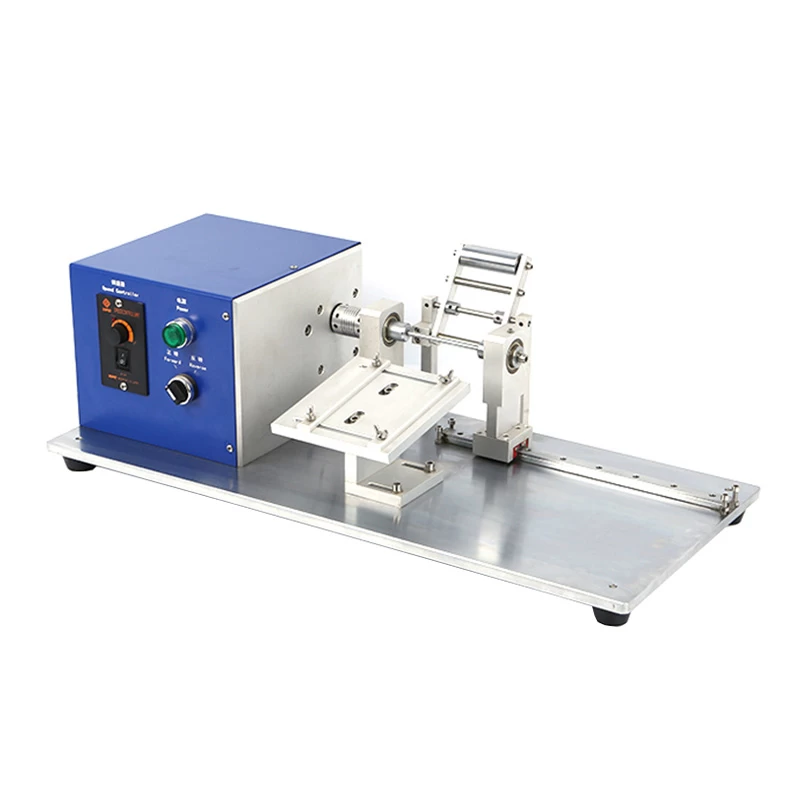

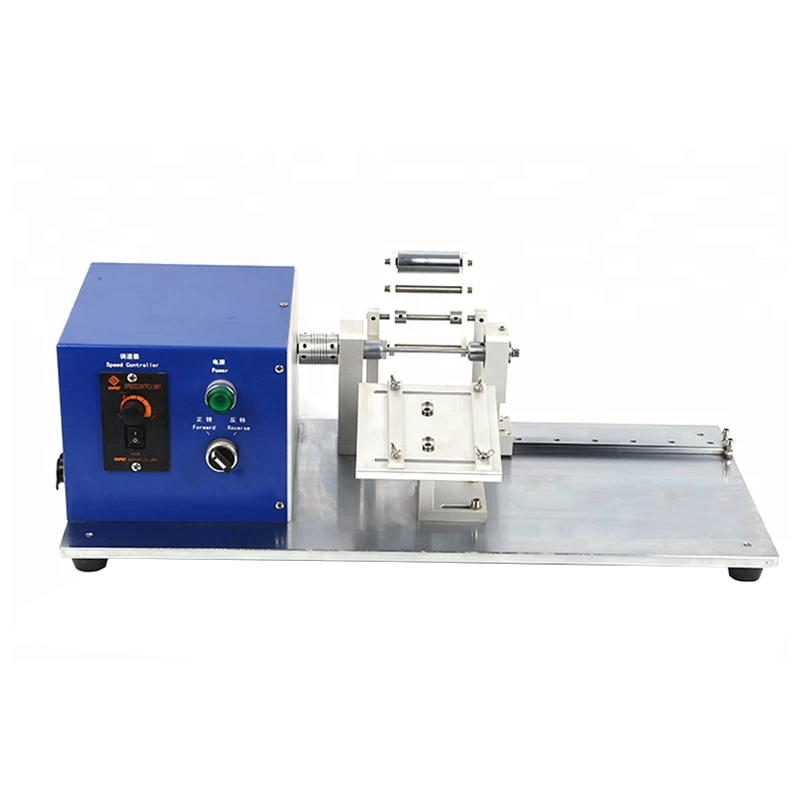

Lab Manual Cylindrical Battery Winding Machine for 18650 Cylinder Cell

This manual battery winding machine suitable for super capacitors, cylindrical batteries, and pouch cell lithium battery. The cathode and anode electrodes and battery separators are wound into cells.



Lab Manual Cylindrical Battery Winding Machine for 18650 Cylinder Cell


Manual Cylindrical Battery Winding Machine for winding electrodes with separator together in the research of Li-ion cylinder cell batteries in laboratory.

Features :

1. Feeding electrode channel can be regulated from up to down, left to right, front to back.

2. Winding support wheel ensures the winding tightness of battery core.

3. End winding supporter increases the winding accuracy of battery core.

4. Froward & reverse is optional ,he speed can change steplessly.

5. Small dimension, nice appearance, simple operation.


Specifications:

Model

Manual Winding Machine AOT-MWM-90C

Working Voltage

AC110V/220V, 50/60HZ

Power

40W

Warranty

One Year limited warranty with lifetime support

Winding Speed

0 - 170 RPM Adjustable

Winding Shaft

Dimensions: 4mm(OD) x 65mm(L) for 18650 cylinder battery core,

Other sizes like 26650 and 32650 are available upon request

Winding Mode

Switchable between clockwise and counterclockwise

Output

70-100EA/h, according to battery size and maunal

Product Dimensions

L360mm*W310mm*H280mm

Net weight

About 20kg (45 lbs)

Application Notes

Thismachine can be used for cylinder battery with round winding shaft, and you can also choose the square winding shaft for pouch cell core winding,

We will supply with the suitable winding accessories according to your battery model

Lithium-battery-winding-machine

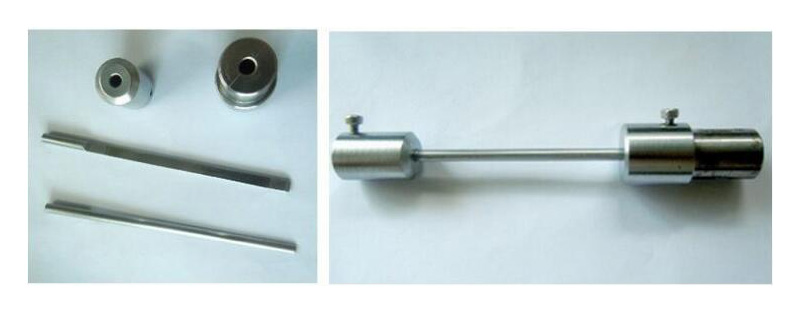

Cylinder Cell Winding Shaft

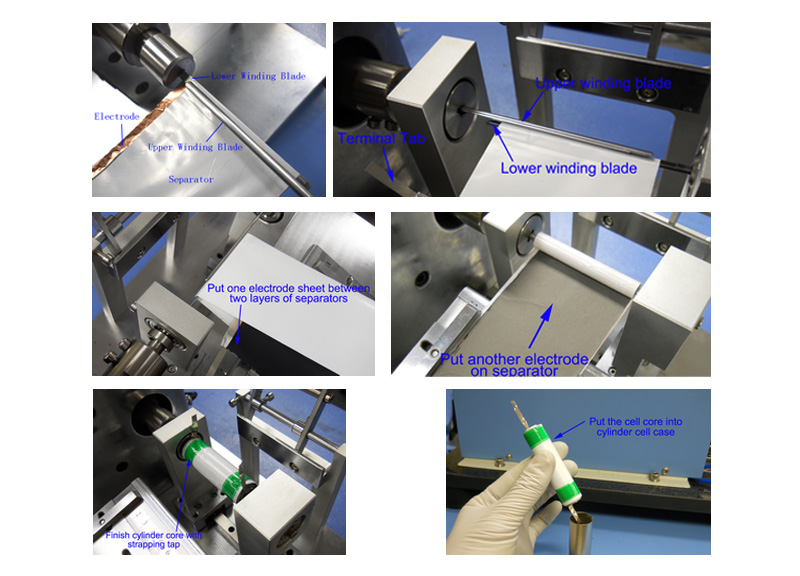

Battery Winding Machine Winding Process
