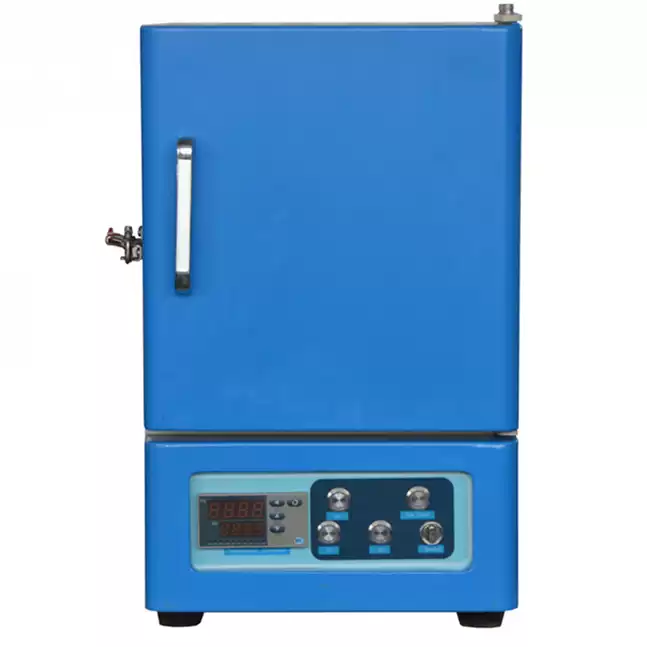

Lab Mini 1050C Box-type Muffle Furnace with Chamber Size 100*100*100mm
This box furnace uses a resistance wire as a heating element, a double-shell structure and a Xiamen Yudian 30-stage program temperature control
system. The furnace is made of alumina polycrystalline fiber material, and the
double-layer furnace shell is equipped with an air-cooling system. Rapid
temperature rise and fall, can reach 1000 degrees in 30 minutes, and has the
functions of over temperature, broken couple, over current protection, etc. The
furnace has the advantages of temperature field balance, low surface
temperature, fast temperature rise and fall, energy saving, etc. It is a
university, research institute. The industrial and mining enterprises are ideal
products for high temperature sintering, metal annealing and quality testing.
UAV program
temperature control instrument
1, 30-stage program
temperature control intelligent PID adjustment.
2. With
over-temperature protection, the electric furnace heating circuit is
automatically cut off when the temperature is over-temperature or broken, (when
the electric furnace temperature exceeds 1620 degrees or the thermocouple is
blown, the AC relay on the main circuit will be automatically disconnected, the
main circuit is broken. On, the ON light on the panel is off, the OFF light is
on, and the limited protection electric furnace).
3, with 485
communication interface (standard when purchasing software)
4, with power-off
protection function, that is, when the power is turned on after the power is
turned off, the program does not start from the starting temperature, but the
furnace temperature rises from the time of power failure.
5, the meter has the function of temperature self-tuning
Main technical parameters：
|
Power
|
1.2 KW
|
Standard configuration
|
|
Chamber size
|
100X100X100（DXWXH）
|
High
temperature gloves: 1 pair
Clamps: 1
Alumina
tile: 1 block
|
|
Supply
voltage
|
220V
|
|
Phase
|
single phase
|
|
Heating
element
|
resistance
wire
|
|
Control mode
|
30 sections of program temperature control
|
|
Chamber material
|
Alumina polycrystalline fiber
|
|
Control precision
|
+/- 1℃
|
|
Maximum
temperature
|
1050℃
|
|
Rated
temperature
|
1000℃
|
|
Thermocouple Type
|
K Type
|
|
Silicon controlled
|
SEMIKRON 106/16E
|
