Lab Polygonal Mold
The polygonal mold used in the laboratory is to press the powder sample material into a polygonal sample through this mold, such as triangle, pentagon, hexagon, semicircle, etc. The commonly used tablet size is 3-20mm. Other special mold sizes, specifications, shapes, materials, etc. can be customized according to customer needs.
Specifications
|
Name
|
Polygonal mold
|
|
Actual drawing of molding sample
|
|
|
Compressible sample shape
|
Polygon, semicircle or other shapes
|
|
Common mold specifications
|
Between 3-20m
|
|
Mold material
|
Alloy tool steel: Cr12MoV (can be customized hard alloy steel)
|
|
Hardness of die indenter
|
HRC60-HRC62
|
|
Mold cavity depth
|
40mm
|
|
Mould dimensions
|
Ф53×120mm
|
|
Mould weight
|
1.4kg
|
|
Calculation formula of die pressure
|
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
|
|
Mould remarks
|
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
|

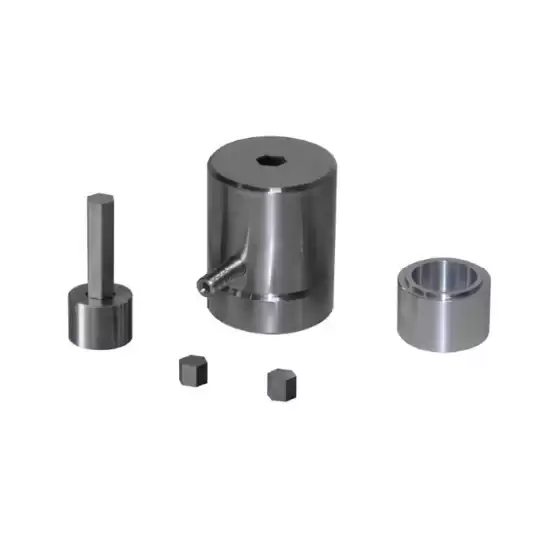

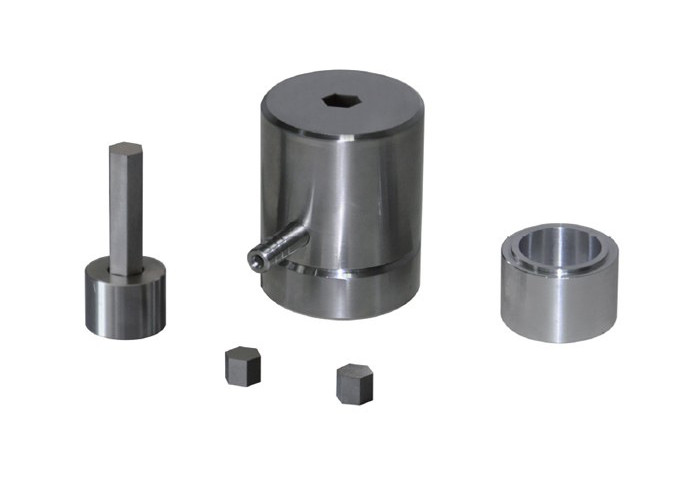

Product Images
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
