Lab Quantitative Heating Mold

Quantitative heating mold, the quantitative mold added thickness and diameter quantitative ring on the basis of common plate mold, the quantitative diameter is generally 25 m m, the quantitative thickness is 10μm，15μm，50μm，100μm，250μm，500μm, etc.; it is a supporting equipment for engineering technicians in Colleges and universities and research institutes to carry out spectrum detection and qualitative analysis.

Standard configuration

Electric heating mold(customizable)  1 set

High temperature insulation board  1 set

Temperature controller 1 set

Optional

Hydraulic press machine

Water cooler→It is recommended to configure water-cooled machine if rapid cooling is required after mold heating.

Specifications

Shape of compressible sample	Circular sheet with diameter of Ф25mm
Mold heating temperature	Room temperature - 300℃

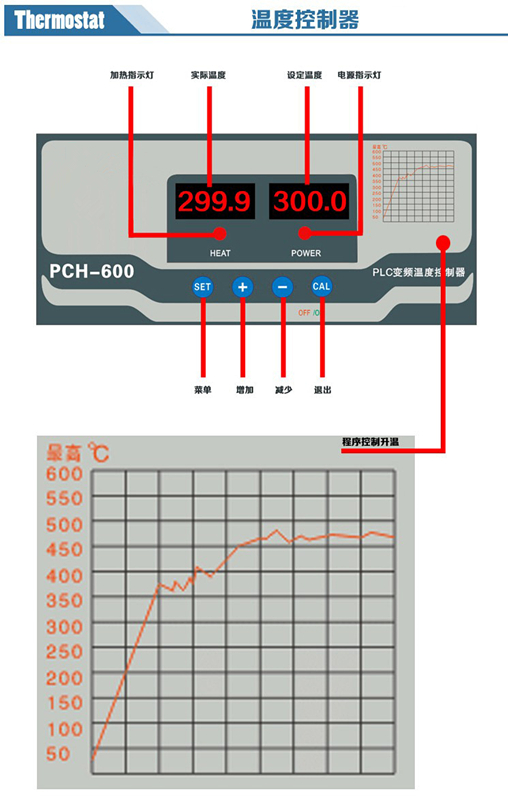

Thermostat type	PLC program digital temperature controller, room temperature - 600.0 ℃, accuracy 0.1 ℃
Power supply	220V/200W
heating rate	5-10℃/min
Temperature overshoot	Above 200 ℃ / < 1 ℃
Mold material	Alloy tool steel: Cr12MoV
Mold specification	Round heating: fixed diameter Ф 25mm
Quantitative thickness ring	10μm，15μm，50μm，100μm，250μm，500μm, etc
Boundary dimension	260×290×160mm
Die weight	20kg (complete set)
Standard configuration	Electric heating mould 1 set + heat shield 1 set + intelligent temperature controller 1 set+6 quantitative rings(selected by customer) (hydraulic press and water cooler are optional)
Mold notes	The above indicators are for standard model reference only, we can customize various specifications, materials, shapes of molds according to customer needs

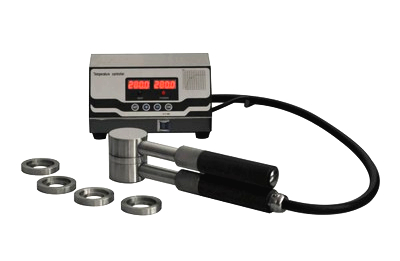

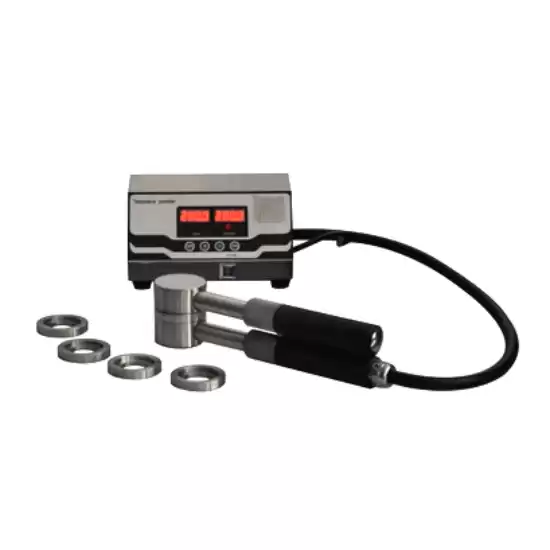

Product Images

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
