Lab Ring Mold Hole Mold
This series laboratory-use ring molds are mostly used in the catalytic industry or for the molding of samples that require holes. Square and porous samples can be customized. Commonly used sizes: diameter Ф3-20mm, height 1-20mm, common mold specifications ：Outer circle and inner hole diameter, outer Ф7-inner Ф3mm, outer Ф10-inner Ф5mm, Ф12-inner Ф6mm, outer Ф20-inner Ф10mm, etc. Other special mold sizes, specifications, shapes, materials, etc. can be customized according to customer needs.
Specifications
|
Name
|
Ring mold/Hole mold
|
|

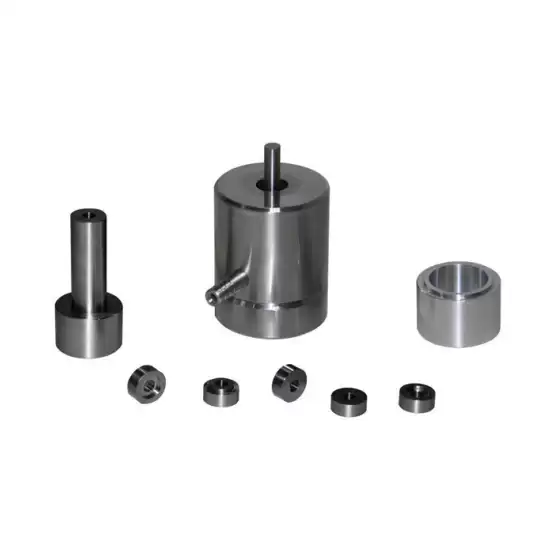

Actual drawing of molding sample
|
|
|
Compressible sample shape
|
Round hole shape, square hole shape or semi-arc hole shape, etc.
|
|
Common mold specifications
|
Outer diameter and aperture: Ф7-Ф3mm, Ф10-Ф5mm, Ф12-Ф6mm, Ф20-Ф10mm, etc.
|
|
Mold material
|
Alloy tool steel:Cr12MoV(Can be customized hard alloy steel)
|
|
Hardness of die indenter
|
HRC60-HRC62
|
|
Mold cavity depth
|
40mm
|
|
Mould dimensions
|
Φ53*120mm
|
|
Mould weight
|
1.4kg
|
|
Calculation formula of die pressure
|
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
|
|
Mould remarks
|
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
|

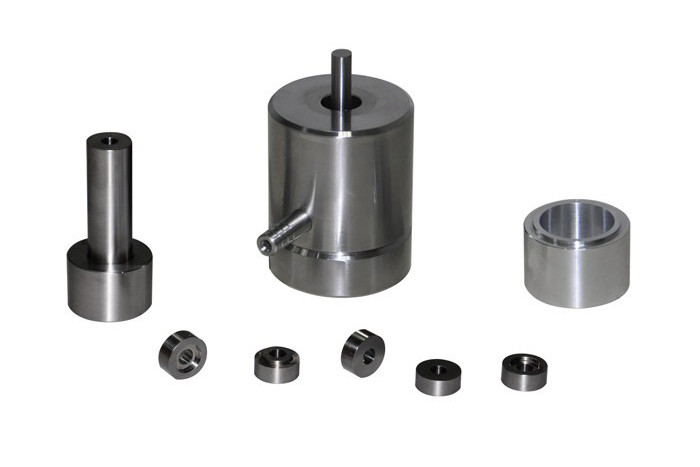

Product Images
