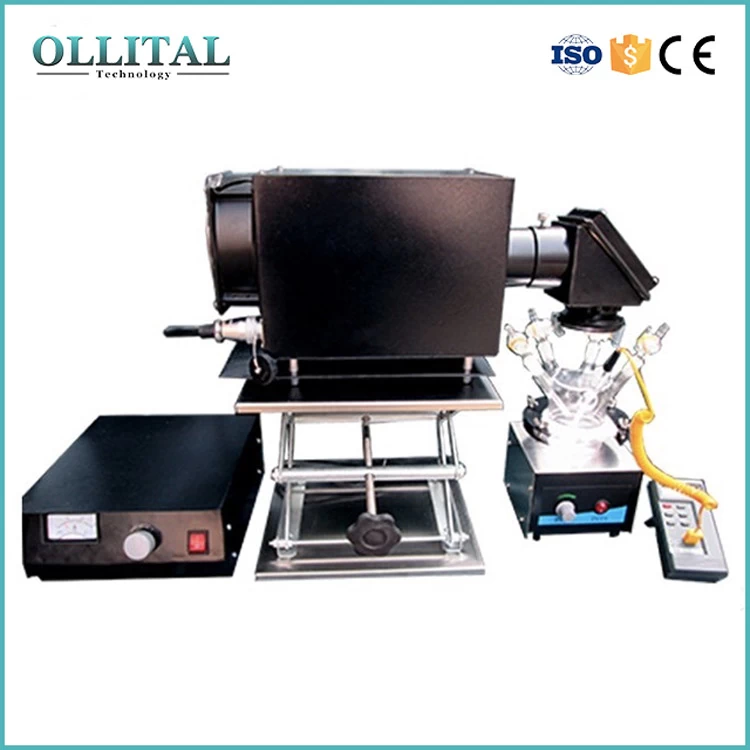

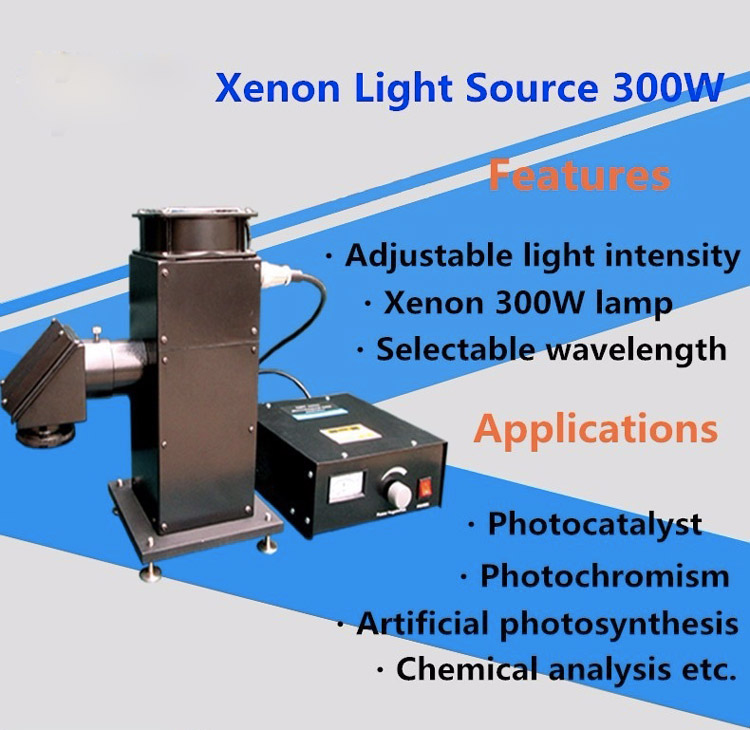

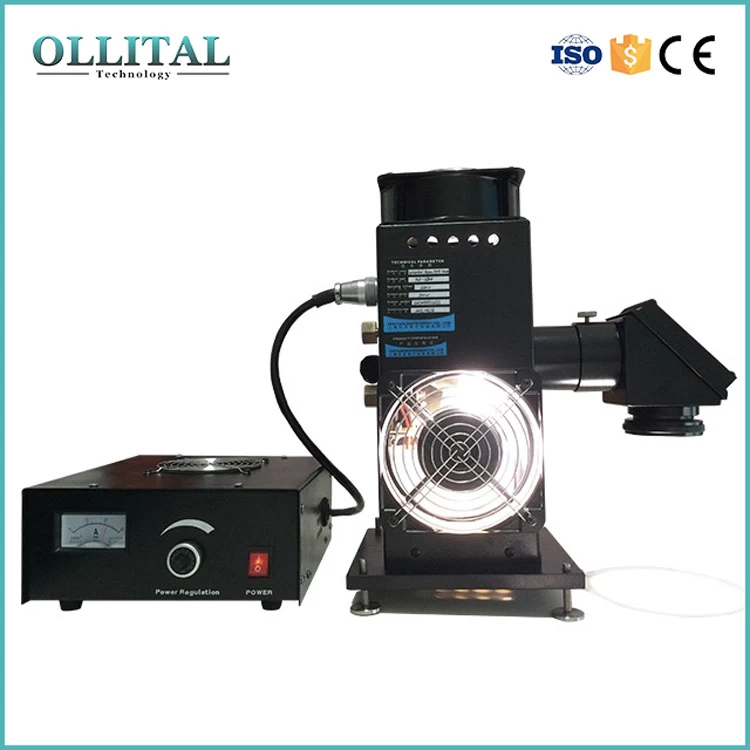

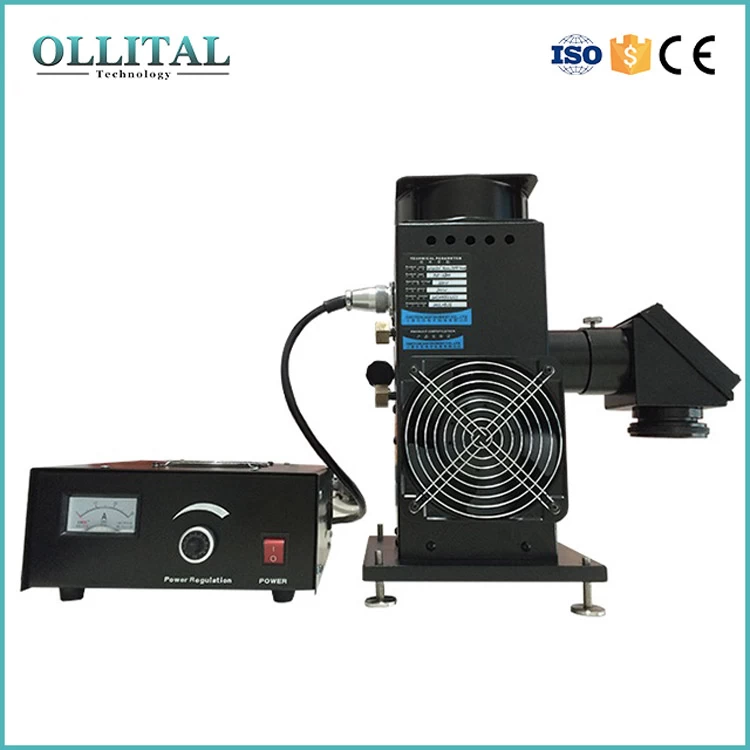

Lab Short Arc Xenon Lamp Source Uv Photochemical Reactor Light Source
Features
♦Adjustable light intensity
♦Selectable wavelength
♦Fan cooled housing
Applications
♦Photocatalyst ♦Photochromism ♦Artificial photosynthesis
♦Chemical analysis ♦Spectroscopy ♦Fluorescent observation
♦Inspection lighting ♦UV light disinfection ♦Photodynamic therapy
|
model
|
TOP-X300
|
|
lamp type
|
xenon lamp 300w
|
|
output type
|
200-250nm*design value (it depends on the lamp and the filter you choose)
|
|
xenon lamp life
|
more than 800h(average)
|
|
input voltage
|
AC108V'-240V
|
|
lamp max. current
|
22A
|
|
light intensity control range
|
150~300w
|
|
filter wheel
|
dia 52mm
|
|
parallel light source spot diameter
|
30~52mm (base on irradiation distance)
|
|
cooling form
|
imported metal ventilator + metal cooling modules
|
|
optical window diameter
|
24.0mm (vipera)
|
|
working spot dia
|
40-52mm (vipera)
|
Xenon lamp lightsource can realize high energy density, long time continuous irradiation. Combine with all sorts of filter as various methods, to realize the narrow waveband catalyst improvement effect evaluation and broad waveband overall catalytic effect evaluation. This product can cooperate with various reactor (system), to analysis solid, liquid, and gas phases in online and offline experiment.
