Lab Spherical Cylinder Mold
This series laboratory spherical molds are often used in the pharmaceutical industry and small batch testing. Commonly used mold pressing size: diameter Ф3-20mm, height 1-20mm, bulk powder height: 15-35mm, used in laboratories and other industries to sample powder The compression molding is spherical or cylindrical. Other special mold sizes, specifications, shapes, materials, etc. can be customized according to customer needs.
Specifications
|
Name
|
Spherical mold
|
|
Actual drawing of molding sample
|
|
|
Compressible sample shape
|
Round sphere, hemisphere, spherical cylinder, etc., such as tablets
|
|
Common mold specifications
|
Ф3, Ф6, Ф8, Ф10, Ф12, Ф15, Ф20mm, etc.
|
|
Mold material
|
Alloy tool steel: Cr12MoV (can be customized hard alloy steel)
|
|
Hardness of die indenter
|
HRC60-HRC62
|
|
Mold cavity depth
|
40mm
|
|
Mould dimensions
|
Ф53×120mm
|
|
Mould weight
|
1.4kg
|
|
Calculation formula of die pressure
|
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
|
|
Mould remarks
|
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
|

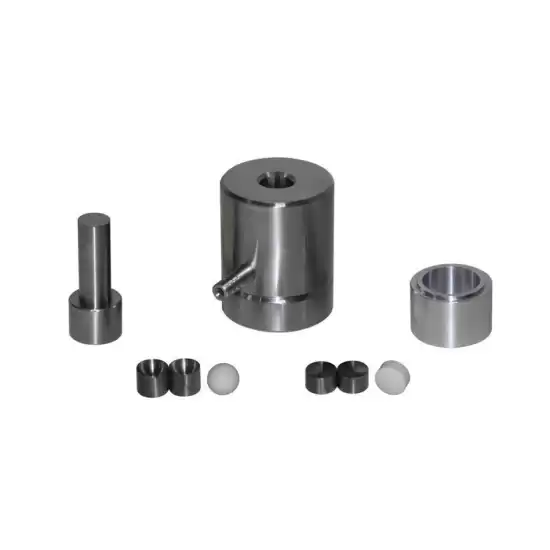

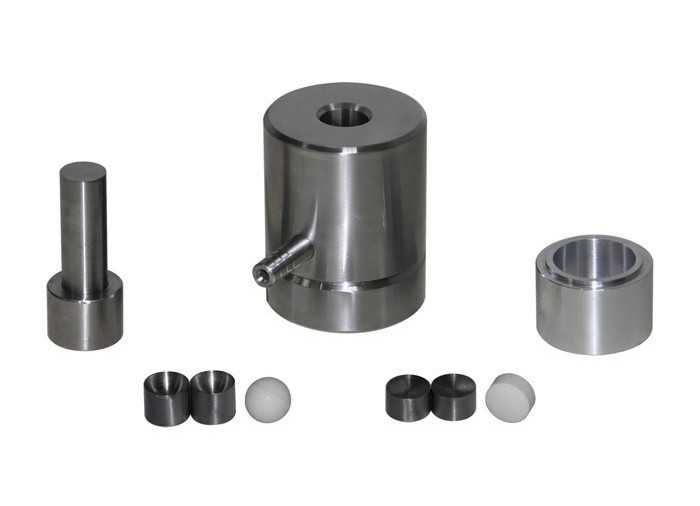

Product Images
