Lab X Fluorescence Special Steel Ring Mold
The special fluorescent steel ring mold is used for the molding of X-ray fluorescence spectrometer samples. The stainless steel ring is used as the support ring of the sample. The tablet pressing speed is fast and the molding effect is good. There are two common steel ring mold specifications on the market. The most common size is: Ф40-Ф32mm, that is, the outer diameter of the steel ring is Ф40mm, the inner diameter of the steel ring is Ф32mm, and the sample size is Ф32mm. The second is: Ф32-Ф24mm, that is, the outer diameter of the steel ring is Ф32mm, the inner diameter of the steel ring is Ф24mm, and the sample size is Ф24mm. The sheet thickness is 5-8mm high. Other special mold sizes, specifications, shapes, materials, etc. can be customized according to customer needs.
Specifications
|
Name
|
X fluorescence special steel ring mold
|
|
Actual drawing of molding sample
|
|
|
Compressible sample shape
|
Cylindrical
|
|
Common mold specifications
|
Ф outer 32-Ф inner 24mm or Ф outer 40-Ф inner 32mm
|
|
Mold material
|
Alloy tool steel: Cr12MoV
|
|
Hardness of die indenter
|
HRC60-HRC62
|
|
Mold cavity depth
|
45mm
|
|
Mould dimensions
|
Ф73×133mm
|
|
Mould weight
|
3.2kg
|
|
Calculation formula of die pressure
|
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
|
|
Mould remarks
|
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
|

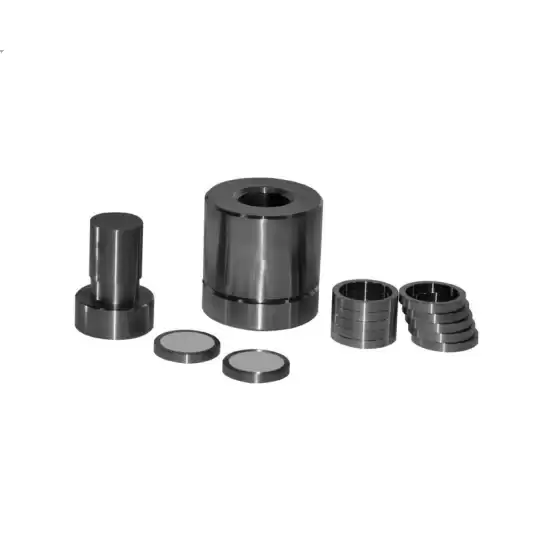

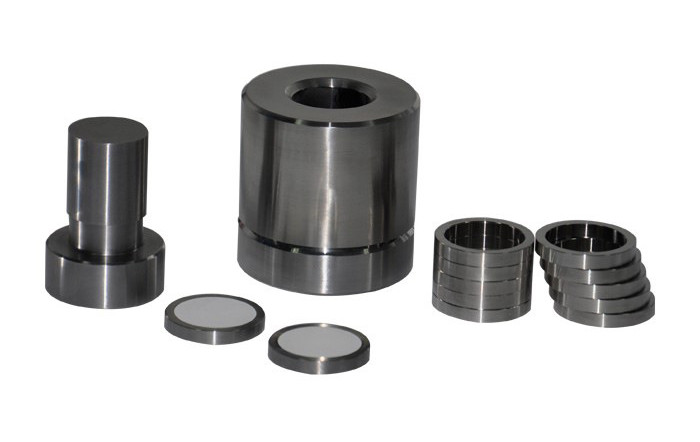

Product Images
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
