Laboratory Manual Lithium Battery Stacking Machine for Pouch/Polymer Cell
Product specification
1. LIO-M-DP200 Battery stacking machine is a manual stacking machine. It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell.
2. The battery stacking machine is used for lithium battery stacking process, put the cathode, anode electrode and battery separator Z shaped lamination.
|
Model
|
Battery Stacking Machine LIO-M-DP200
|
|
Voltage supply
|
AC 110v-220V Customized by requirements, 50HZ±10%
|
|
Power
|
100W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Stacking Layer Length
|
L(0-200)mm, W(0-200)mm
|
|
Max separator feeding diameter
|
Φ250mm
|
|
Fixed travel distance
|
400mm
|
|
Travel cycle
|
1 - 9999 cycles
|
|
Air supply
|
0.25-0.55MPa
|
|
Machine dimension(L*W*H)
|
650*450*600mm
|
|
Weight
|
70kg
|
|
Package dimension(L*W*H)
|
750*570*800mm
|
|
Package weight
|
90kg
|

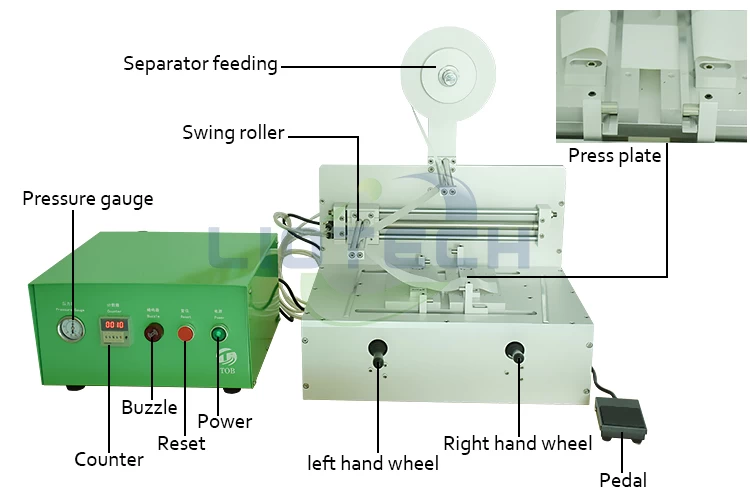

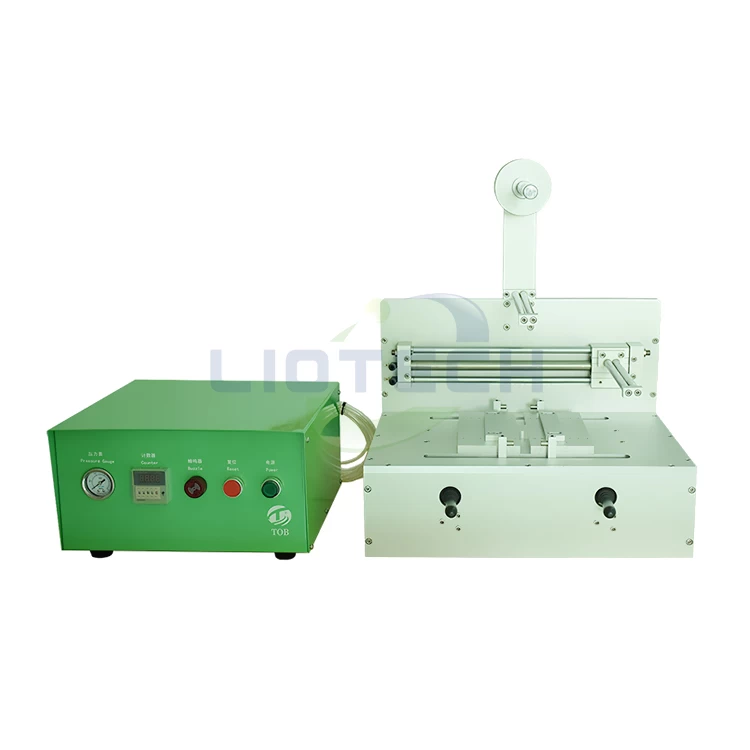

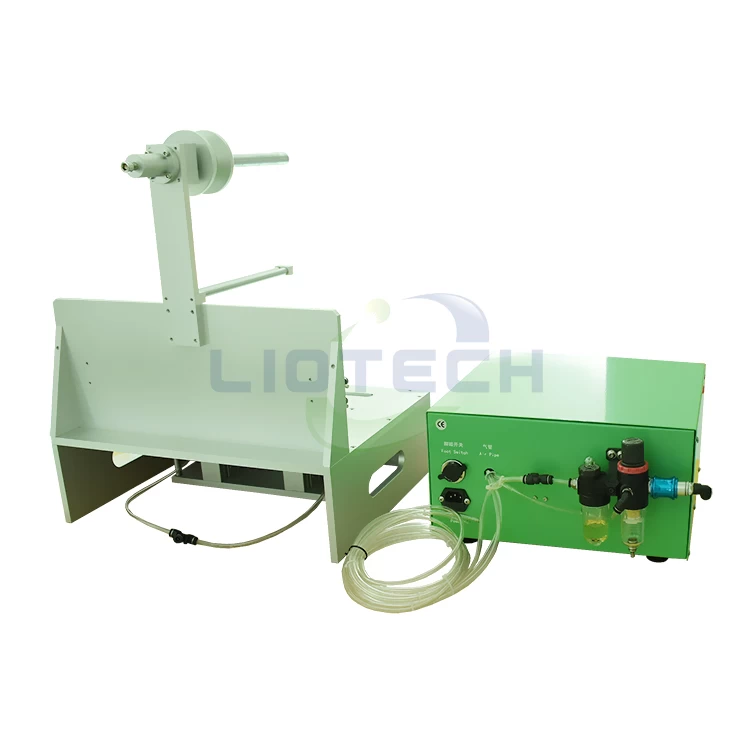

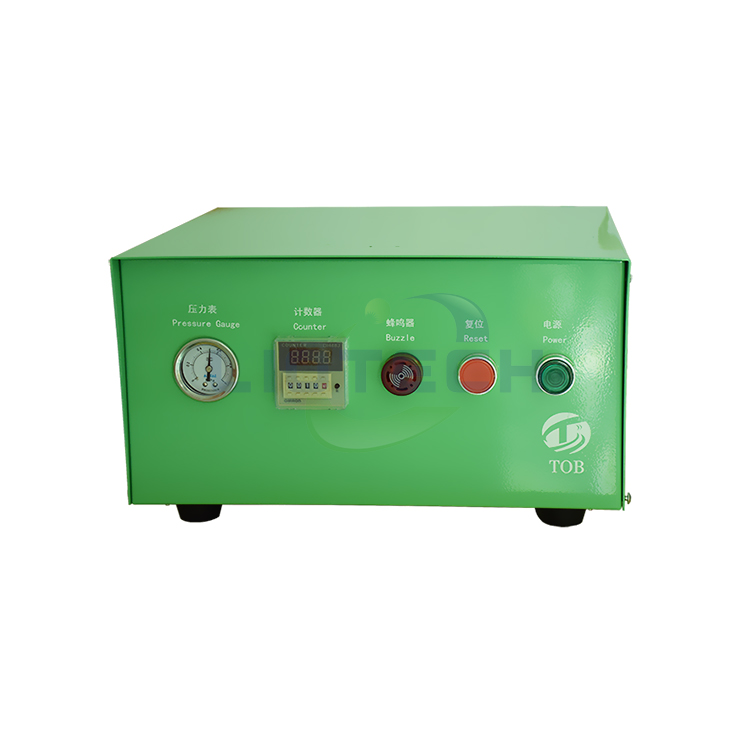

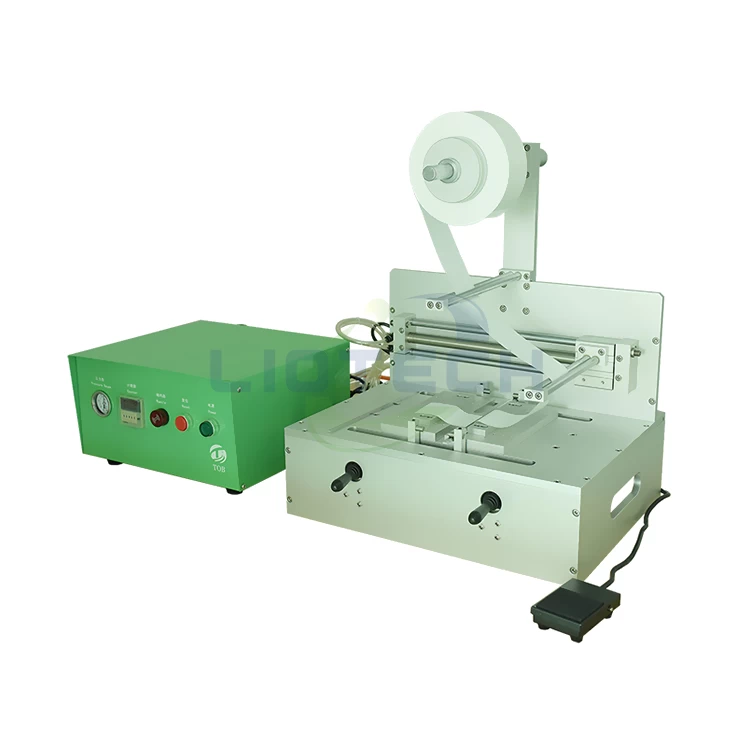

Product Images
Product Packing
