Laboratory Powder Horizontal Planetary Grinding Ball Mill Machine

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • Warranty Two years limited warranty with lifetime technical support
  • Certificate CE, IOS, ROHS, SGS, UL Certificate

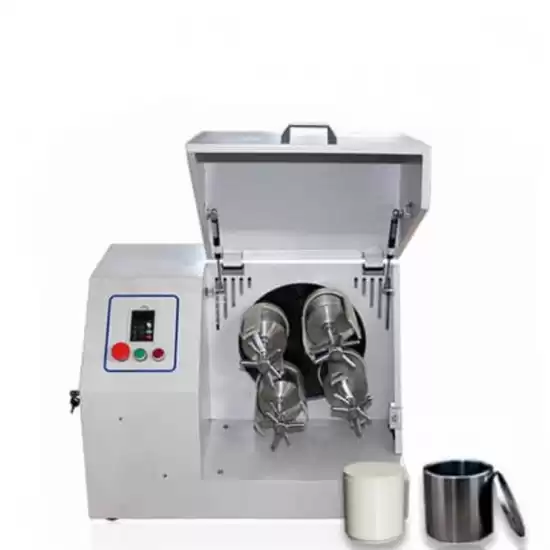

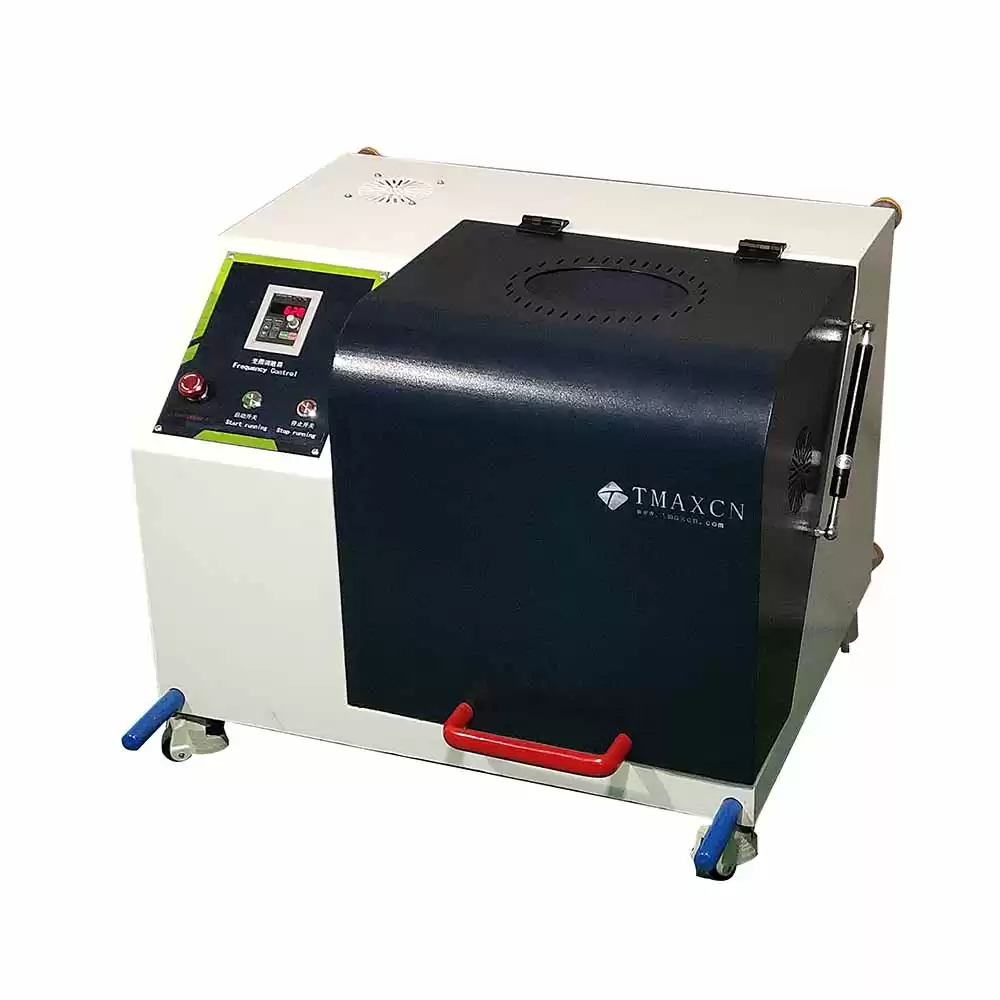

Laboratory Powder Horizontal Planetary Grinding Ball Mill Machine





Visual Window

It is convenient to see the running status of the ball mill jar inside the ball mil.






Frequency conversion control

The ideal speed can be set according to the experimental requirements, the speed precision is high, the inverter has undervoltage, over current, overload protection, can be equipped with intelligent panel, easy to operate.







Planetary gear

Integral casting molding main plate, with manual relaxation locking device (optional automatic locking device), the appearance is very beautiful; Stable speed, high efficiency, good safety performance.







Cooling fan hole

High speed operation of the equipment, through a reasonable layout of the fan hole in and out, to achieve the external circulation of air flow inside and outside the equipment, effectively control the temperature rise in the equipment, improve the heat dissipation speed, protect the normal ball mill material, ensure the stability of the equipment.







A. Introduction

Light horizontal planetary ball mill is mainly aimed at the material proportion is bigger, easy to sink agglomerate and custom, the relative vertical transmission planetary ball mill into 90 ° structure, in the process of grinding materials, tank grinding balls and material in the revolution and rotation of two centrifugal force at the same time, influenced by their weights, speeding up the curve speed grinding balls and material without rules, and improve the effect of ball mill Efficiency. Can better solve the material part of the bottom, agglomeration plate problems. The light horizontal planetary ball mill has the advantages of simple structure and convenient operation, and is suitable for laboratory experiment and research of small batch samples.





B. Character

Equipment through professional appearance modelling design, the shell is made of high precision mold stamping forming, generous and delicate, high-end sedate, planetary disc is made of casting forming, numerical control processing technology on structure component processing, transmission gear combination of high-temperature resistant non-metal and metal precision gear, metal heat treatment process of nitriding, can ensure abrasion resistance to prevent the broken shaft axis of rotation, to ensure that the equipment run time at a high speed Smooth and quiet, can watch the device monitor grinding jar can be self-locked locking synchronization at the same time, the operation is convenient, safe and reliable, increase the handheld flip agencies, convenient user take pot and put the pot, more human operation, the product color shell, new vitality to products, and activate the product new life, in line with the international and domestic aesthetic demand, in line with the ergonomics.







C. Parameter

Mode of transmission

Gear transmission

Mode of working

Two and four ball grinding jars work simultaneously

Mode of transmission

Two thirds of the volume of the ball mill jar

Ball mill tank volume

0.05-1L per jar, total volume 0.2-4L

Feed granularity

Soil material≤10mm, and other materials≤3mm

Granularity of discharge

Up to 1 micron

Mode of speed regulation

Infinitely adjustable-speed



Model

Volume(L)

Configurable ball mill specifications

Qty

Configurable vacuum ball mill volume

Locking device (optional automatic)

HPBM-0.4

0.4L

50-100ml

4

50ml

manual

HPBM-1

1L

50-250ml

4

50-100ml

manual

HPBM-2

2L

50-500ml

4

50-250ml

manual

HPBM-4

4L

250-1000L

4

50-500ml

manual



Model

Power supply (single-phase)

Power(kw)

Total time to run the set(min)

Alternating positive and negative running time(min)

Adjustable speed

Revolution(rpm) Rotation(rpm)

HPBM-0.4

Single phase 220V-50HZ

0.75

1-9999

1-9999

35-370

70-740

HPBM-1

Single phase 220V-50HZ

0.75

1-9999

1-9999

35-370

70-740

HPBM-2

Single phase 220V-50HZ

0.75

1-9999

1-9999

35-370

70-740

HPBM-4

Single phase 220V-50HZ

0.75

1-9999

1-9999

35-370

70-740



Model

Standard panel (optional intelligent, touch screen)

Lubrication way

Mode of speed regulation

Weight(kg)

Size(Length * width * height)

Noise≤db

HPBM-0.4

ordinary

grease

Frequency control

88

720*570*530

55±5

HPBM-1

ordinary

grease

Frequency control

90

720*570*530

60±5

HPBM-2

ordinary

grease

Frequency control

90

720*570*530

60±5

HPBM-4

ordinary

grease

Frequency control

92

720*570*530

60±5



horizonrtal ball mill




 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
