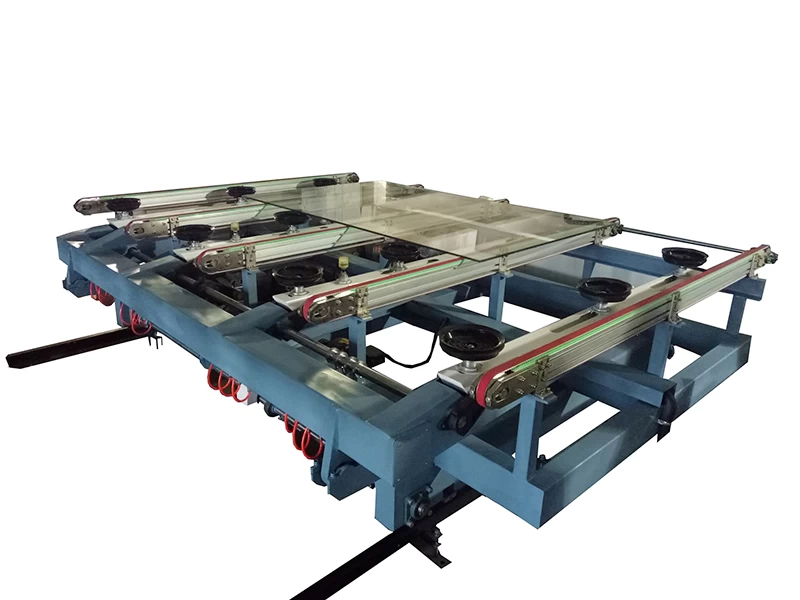

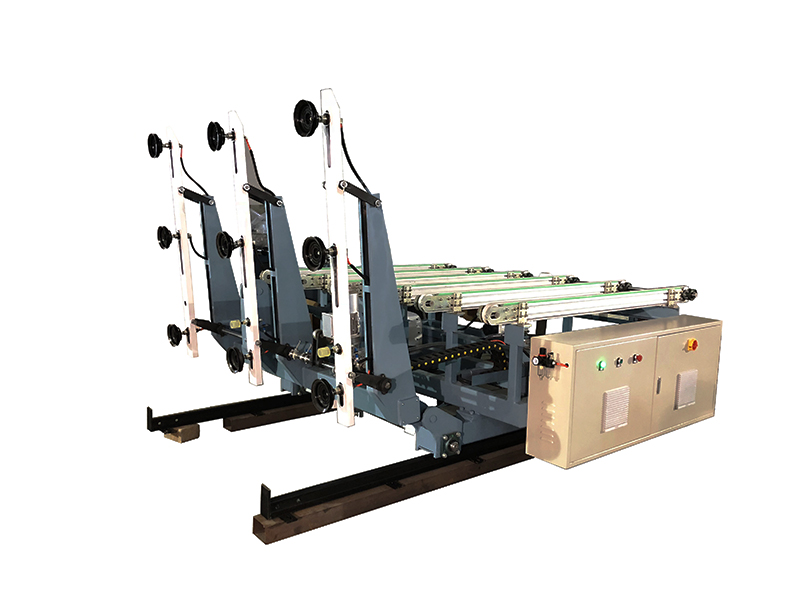

Laminated Glass Loading Machine

Laminated glass loasing machine with belt conveyor for large weight glass.


  • Processing RangeHeavy glass
  • Size Rangecustomized
  • Warranty1 Year


Equipment Parameters

Flip sprocket chain: special high-precision reinforced type.

Transmission roller: imported pu material

Vacuum sucker: imported  natural rubber material (double adsorption structure)

Transmission / flip motor: Bonnie motor

Vacuum pump: Wenling stone bridge vacuum pump

Bearing: Harbin, China.


Electrical components

PLC controller: Panasonic Japan

Frequency converter: Taiwan Delta

Optoelectronic switch: Shanghai SONON

Circuit breaker and motor protector: China CHINT

Control elemer: imported flexible shielded elemer

Contactor: Siyan technology

Main control vacuum solenoid valve pneumatic original: Zhejiang Yongqing manufacturing

Technical Parameter

Loading glass size range: minimum size: 1500*1000mm, maximum size: 3700*2500mm

Loading thickness 3-25mm

Fastest loading time 40s

Transport speed 0-40m/min (adjustable )

Maximum suction depth: 700mm

Maximum loading weight : 1000KG

Number of loading arm on one side: 4 arms

Number of suckers on one arm :3

Flip side: single

Loading station: single

Voltage: 308V/50hz (could be customized)

Power: 12KW

Compressed air: 0.3~0.5Mpa

Vacuum pressure: -70 ~ 90 KPA (adjustable according to glass thickness)

X axis conventional walking speed: 25m / min (variable frequency adjustable)

Y-axis conventional walking speed: 5 m / min (variable frequency adjustable)

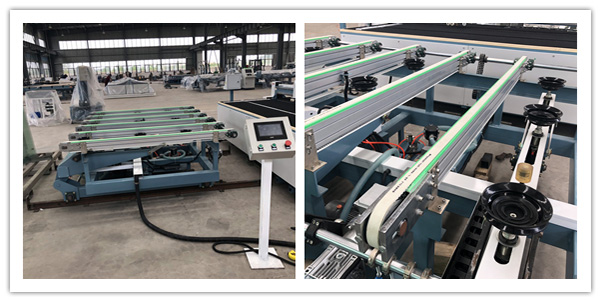

Related Pictures
