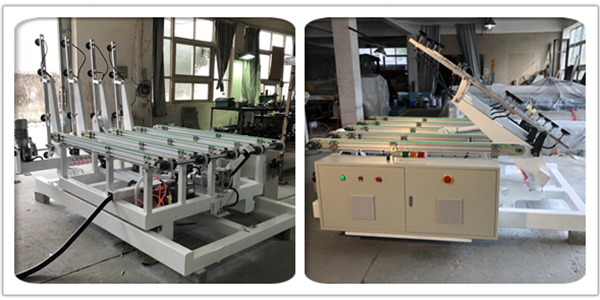

Related pictures

The scope of loading size:

                Minimum size: 800*1000mm

                Maximum size:1800*1500mm

Loading Thickness 0.75---6mm

The fastest loading time period 35 seconds.

Transfer speed 0-40m/min (adjustable)

Maximum absorbtion depth 650mm

Maximum loading weight: 500kg

One side loading arm Quantity: 3 Arms.

Single arm chuck quantity: 3 pieces.

Loading side: Single

Loading station: single station.

Voltage/Power

Voltage: 380/50HZ (Can be Customized according to customers’ requirements)

Voltage: about 12kW

Compressed Air: 0.3Mpa

Vacuum pressure - 70-90Kpa (Can adjust according to glass thickness)

X-axis regular walking speed : 25m/min (Frequency adjustable)

Y-axis regular walking speed: 15m/min (Frequency adjustable)

Technical Description

Automatic loading processes description：

Walking -- Flip arm uplift -- Automatic sensing glass -- Sucker suction glass -- Sucker lift to separate the glass from the frame -- back to original place -- Flip arm reset --  transport glass.
