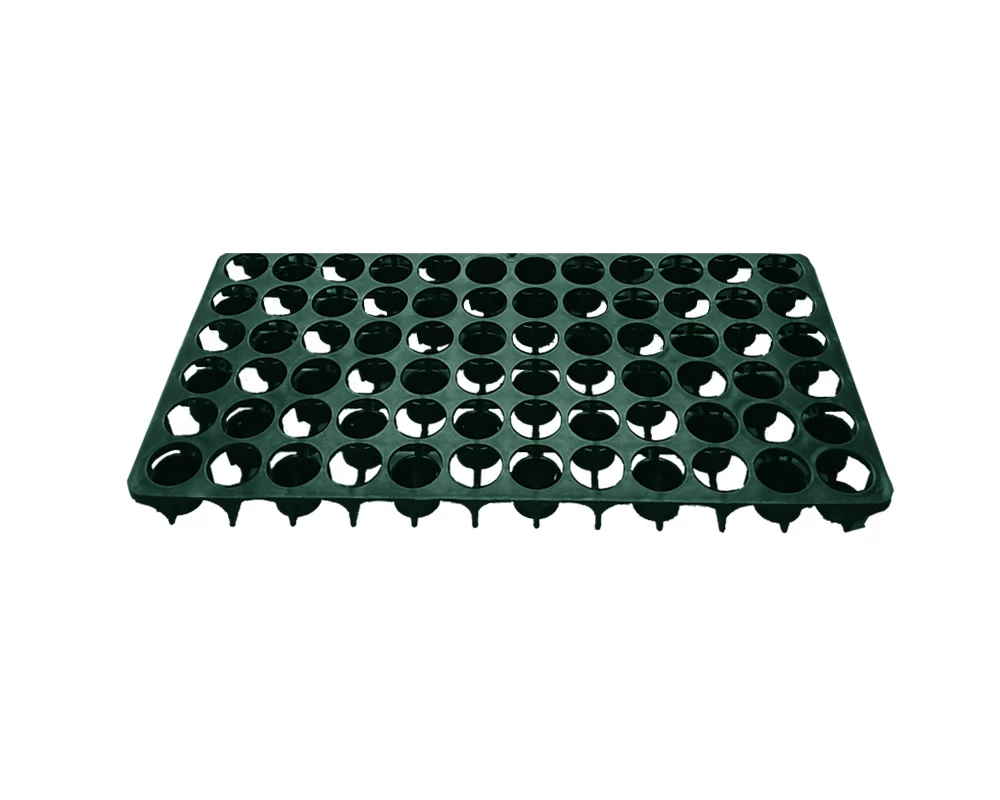

Landscape Drainage Storage Water Board

As the raw material, HDPE ensure Landscape Drainage all the best function. This environmental protection material won't damage to underground water sources, ecological environment, human health and the environment.


  • Press Strength745KN
  • Total Volume0.06m3/bundle
  • Size410x200x25mm
  • ColorDark Green
  • MaterialHDPE

Landscape Drainage Storage Water Board Specifications:

 Item No.  SB-25A  SB-25B  SB-25C
 Color  Light green  Dark green  Black
 Picture  Landscape Drainage Storage Water Board  Landscape Drainage Storage Water Board  Landscape Drainage Storage Water Board
 Size(mm)  410x200x25  410x200x25  410x200x25
 Unit weight(g/m2)  3150g/m2  3150g/m2  3150g/m2
 Material  HDPE  HDPE  HDPE
 Pressure strength(Kpa)  855KN  745KN  695KN
 Hardness  135  113  92
 Water Drainage  90%  90%  90%
 Vertical Circulating  Capacity(cm3/s)  25cm3/S  25cm3/S  25cm3/S
 Water retention(L/m2)  2.6L/m2  2.6L/m2  2.6L/m2
 Loading Capacity

 1100SQM=1x20FT CONTAINER

 2233SQM=1x40FT CONTAINER

 2533SQM=1x40FT CONTAINER

 1100SQM=1x20FT CONTAINER

 2233SQM=1x40FT CONTAINER

 2533SQM=1x40FT CONTAINER

 1100SQM=1x20FT CONTAINER

 2233SQM=1x40FT CONTAINER

 2533SQM=1x40FT CONTAINER

 Package  18pcs/bundle,0.06m3/bundle  18pcs/bundle,0.06m3/bundle

 18pcs/bundle,0.06m3/bundle

 MOQ  1x20FT CONTAINER  1x20FT CONTAINER  1x20FT CONTAINER

Drainage Plate

LEIYUAN Storage Water Board to replace the drainage layer pebbles treatment not only save time,effort and energy, saving investment, but also reduce the load of the building. Good Drainage system for normal use and life cycle of civil construction and the building has an important role. Long and short cylindrical Landscape Drainage and geotextiles to form a drainage system, to form a water seepage, water and drainage systems.



Drainage Water Board light of its own weight, the roof structure will not increase the load. 100% recycled, not cause secondary pollution to the environment. Loading capacity per square can reach 80 tons weight, suitable for create a variety of landscape.

Drainage Plate

Strength Drainage Plate Application:

Roof greening

Bridge abutments

Underground

Tunnels

Play ground

Retaining walls

Golf courses water drainage

Fire truck access paths

Golf buggy

Trolley paths

Modern factory building

Noble living communities

Emergency vehicle access roads through fields


Drainage Plate

Features and Benefits:

Lightweight

High compression strength

Seepage proof

Available in different sizes

Cost save

Water drainage and storage

Easy installation

No surface drains required

Reduces surface temperature around building

High load bearing 148.58t/m2 unconfined

Replenishes water supply to landscaped areas

Unique and easy to use interlocking system

Promotes fast and excellent plant growth

Strong structure can support heavy loads

Retains a minimum of approximately 76L/m2 of perched water above the cells

Drainage Plate

Strength Drainage Plate Construction:

Drainage Water Board

Drainage Plate

Strength Drainage Plate Projects View:

Storage Water Board

Leiyuan Strength Drainage Plate: Good water feature, Long life service!
