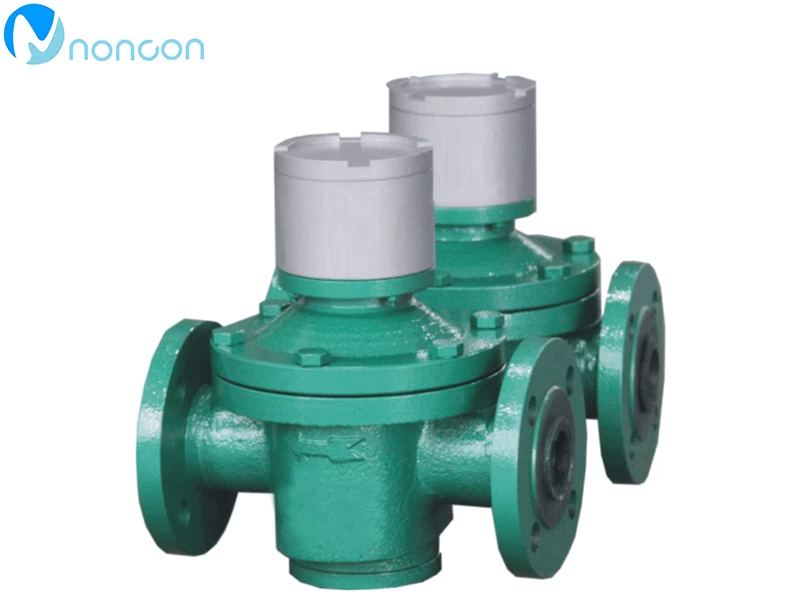

LC Digital Oval Gear Flow Meter

LC series oval gear flow meter is a direct reading accumulative meter. It is a volumetric Flow meter that measures the summation of liquid flow through the pipeline. Can be widely used in petroleum, chemical, medical and health departments of the flow measurement.



Instrument characteristics

▪High accuracy, wide flow range and good repeatability;

▪The spiral rotor has uniform rotation, small vibration and long life;

▪It is not sensitive to the change of the viscosity of the tested liquid, especially suitable for the measurement of the liquid with higher viscosity;

▪Simple structure, small size and light weight;

▪Easy to install, no straight pipe segments need to be installed before the table.


Type selection coding

                                                                                                                                Table 1

Model

Description

LC-

¨/

¨

¨

¨

Diameter

10

10mm

15

15mm

20

20mm

25

25mm

40

40mm

50

50mm

80

80mm

100

100mm

150

150mm

200

200mm

Instrument type

1

Standard type

2

High temperature type

3

High viscosity type

Instrument material

1

Cast iron

2

Cast steel

3

Stainless steel

Signal output mode

1

No output

2

Pulse output

3

4-20mA output

LC-

50/

1

1

1

Selection example

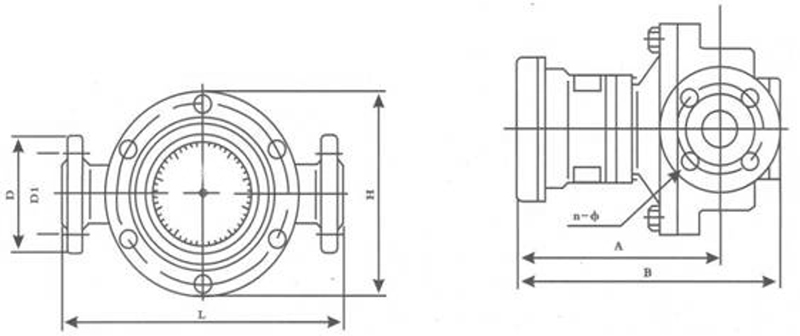

Shape size diagram

Fig.2

Profile dimension of oval gear flowmeter

                                                                                                                                  Table 2

Nominal diameter

Instrument material

L

H

B

A

D

D1

n (number)

ɸ

DN10

Cast iron

150

100

210

165

90

60

4

14

DN15

Cast iron

170

118

226

175

95

65

4

14

Cast steel

200

138

232

180

105

75

4

14

Stainless steel

245

120

226

172

95

65

4

14

DN20

Cast iron

200

150

238

180

105

75

4

14

Cast steel

250

164

220

160

125

90

4

18

Stainless steel

236

150

238

225

105

75

4

14

DN25

Cast iron

260

180

246

194

115

85

4

14

Cast steel

300

202

252

185

135

100

4

18

Stainless steel

287

195

246

232

115

85

4

14

DN40

Cast iron

245

180

271

200

145

110

4

18

Cast steel

300

202

293

208

165

125

4

23

Stainless steel

265

178

349

265

145

110

4

18

DN50

Cast iron

340

250

372

285

160

125

4

18

Cast steel

384

262

394

312

175

135

4

23

Stainless steel

265

178

349

265

160

125

4

18

DN65

Cast iron

420

325

433

360

195

160

8

18

Stainless steel

365

260

436

319

180

145

4

18

DN80

Cast iron

420

325

433

360

195

160

8

18

Cast steel

450

337

452

332

210

170

8

23

DN100

Cast iron

515

418

458

380

220

180

8

18

Cast steel

555

442

478

310

250

200

8

25

DN150

Cast iron

540

510

557

400

280

240

8

23

Cast steel

540

510

557

347

300

250

8

26

DN200

Cast iron

700

650

720

476

335

295

12

23

Cast steel

650

650

720

476

360

310

12

26
