PRODUCT DESCRIPTION:

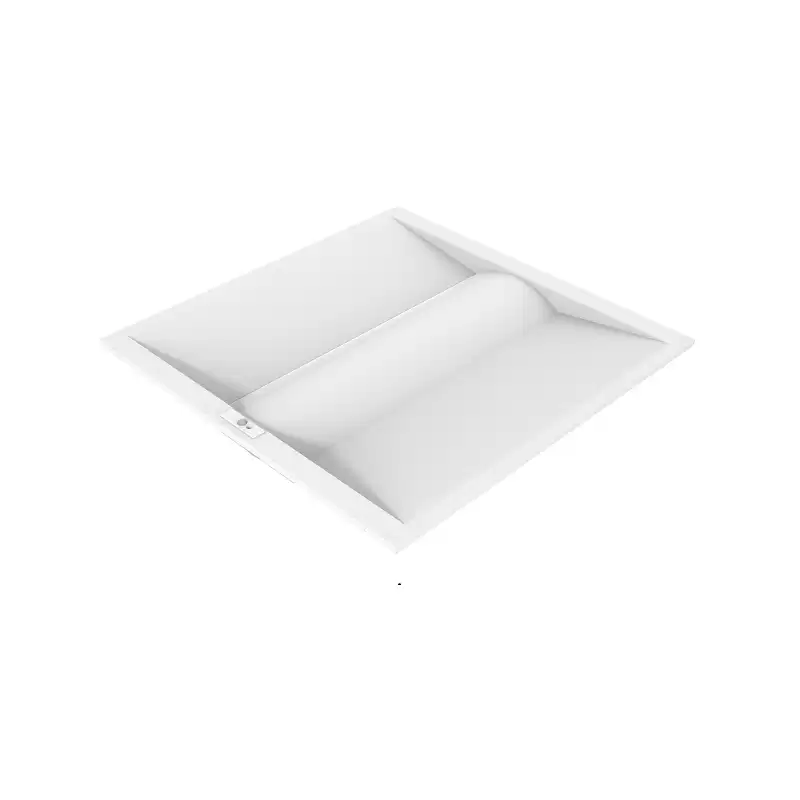

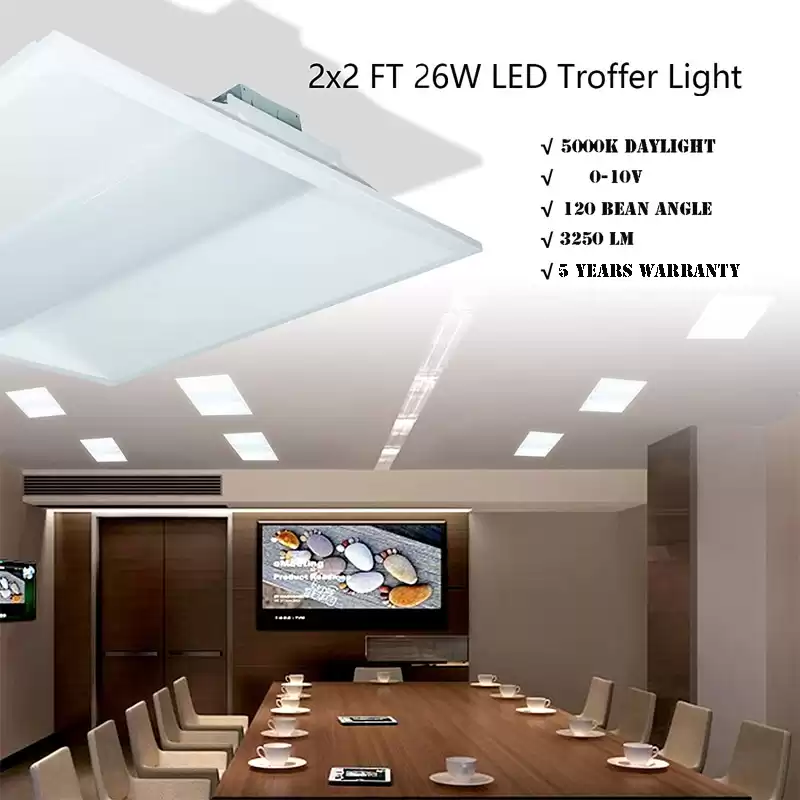

AirTunes LED Troffer delivers soft, glare-free, ambient lighting in popular center-basket design. The center-basket LED troffer is a low-profile design that offers a clean, versatile style and volumetric
distribution. Compared with traditional light sources, the slim profile appearance and high-efficiency LED light engine can save energy and reduce maintenance costs, making it an ideal choice for new
buildings. Provides a series of dark slots, which can be used in conjunction with MORSTAR Bluetooth APP to control fixtures.
FEATURES:
• Long-life LEDs, coupled with high-efficiency drivers, provide superior quality of illumination for extended service life
• Excellent luminaire efficacy provides significant energy savings power efficiency up tp 88%
• To ensure trouble-free operation, protection is provided against output over-current, output over-voltage
• Short circuit. LED boards are easily accessible from below
• Options: CCT+Power Adjustable; APP Smart control :Bluetooth；daylight+PIR sensor
CONSTRUCTION:
• Cold-rolled steel light body increases durability. Only 2.60'' thickness
• Diffuser are extruded from impact modified polycar-bonate, easy maintenance.
RECOMMENDED USE:
• The modern architectural style compliments any space, such as shool,
office, hospitality, education, bank, healthcare and more.
• Working temp:-20~40ºC(-4~104ºF). Storage temp.:-30~60ºC
WARRANTY:
7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -4°F to 104°F.
|
FAMILY
|
SERIES CODE
|
SIZE CODE
|
WATTAGE
|
CCT
|
OPTIONS1
|
OPTIONS2
|
|
MA-HTF= LED Troffer
Light
|
301B
|
22=2X2FT
24=2X4FT
|
26W
|
30K=3000K
40K=4000K
50K=5000K
57K=5700K
|
Blank
CP=CCT+Power
Adjustable
|
Blank
AP=Bluetooth+
Daylight Sensor+
PIR Sensor
|
DIMENSION:
SPECIFICATION:
|
|
HTF301B22
|
HTF302B22
|
HTF303B22
|
HTF303B24
|
HTF304B24
|
HTF305B24
|
|
ITEM
|
SPECIFICATION
|
Normal Type
|
|
GENERAL
PERFORMANCE
|
Power Consumption
|
26W 2X2ft
|
32W 2X2ft
|
40W 2X2f
|
32W 2X4ft
|
40W 2X4ft
|
50W 2X4ft
|
|
Equivalent Wattage
|
60W CFL
|
80W CFL
|
120W CFL
|
80W FCL
|
120W CFL
|
140W CFL
|
|
Lumens Delivered
|
3,250 lm
|
80W CFL
|
5,000 lm
|
3,250 lm
|
5,000 lm
|
6,250 lm
|
|
Efficacy
|
125 lm/W
|
|
CRI
|
>80
|
|
Color Temperature
|
WW:3465±245K; NW:3985±175K; DW:5028±285K
|
|
L70 Lumen maintenance
|
100,000 hours
|
|
ELECTRICAL
|
Power Factor
|
>0.9
|
|
Input Voltage
|
100-277V
|
|
Dimming
|
1-10v Dimming Range:10%-100%
|
|
PHYSICAL
|
Mounting
|
Suspending,Hanging, Surface mounted
|
|
Operating Temperature
|
-4°F to 104°F
|
|
Humidity
|
20% to 80% RH non-condensing
|
|
QUALIFICATION
|
Qualifications
|
ETL Listed, DLC Premium
|
|
Material Usage
|
RoHS compliant; no mercury
|
|
Environment
|
Indoor IP20
|
|
Warranty
|
7 Years warranty
|
LUMINOUS INTENSITY DISTRIBUTION CURVE:
|
|
HTF301E
22CP
|
HTF302E
24CP
|
HTF303A
22AP
|
HTF304A
24AP
|
HTF305A
22AP
|
HTF306A
24AP
|
|
ITEM
|
SPECIFICATION
|
CCT+Power Adjustable
|
APP Smart Fixture :
Bluetooth; daylight+PIR sensor
|
|
GENERAL
PERFORMANCE
|
Power Consumption
|
26-32-40W
2X2ft
|
32-40-50W
2X4ft
|
33W
2X2ft
|
50W
2X4ft
|
26W
2X2ft
|
40W
2X4ft
|
|
Equivalent Wattage
|
120W CFL
|
140W CFL
|
100W CFL
|
140W FCL
|
100W CFL
|
130W CFL
|
|
Lumens Delivered
|
5,000 lm
|
6,250 lm
|
3,750 lm
|
6,250 lm
|
3,770 lm
|
5,800 lm
|
|
Efficacy
|
125 lm/W
|
125 lm/W
|
125 lm/W
|
|
CRI
|
>80
|
>80
|
|
Color Temperature
|
WW:3465±245K;
NW:3985±175K;
DW:5028±285K
|
WW:3465±245K;
NW:3985±175K;
DW:5028±285K
|
|
L70 Lumen maintenance
|
100,000 hours
|
100,000 hours
|
|
ELECTRICAL
|
Power Factor
|
>0.9
|
|
Input Voltage
|
100-277V
|
|
Dimming
|
1-10v Dimming Range:10%-100%
|
|
PHYSICAL
|
Mounting
|
Suspending,Hanging, Surface mounted
|
|
Operating Temperature
|
-4°F to 104°F
|
|
Humidity
|
20% to 80% RH non-condensing
|
|
QUALIFICATION
|
Qualifications
|
ETL Listed, DLC Premium
|
|
Material Usage
|
RoHS compliant; no mercury
|
|
Environment
|
Indoor IP20
|
|
Warranty
|
7 Years warranty
|
ACCESSORIES (For APP Smart Fixture):
|
MODEL NUMBER
|
DESCRIPTION
|
|
|
MA-SW101S
|
Surface-mounted Bluetooth Wall-Switch(US)
With Bottom Cap
|
|
|
MA-SW101R
|
Recessed Bluetooth Wall-Switch(US)
W/out Bottom Cap
|
