Letterpress Label Printing Press

Intermittent Rotary Letterpress label Printing Press carry the patented technology - Automatic Registration Function widely use in sticker printing, film printing.



Description for the Rotary Intermittent Label Printing Press Manufacturer

1. This machine adopts Japan Yaskawa motion control chip (different from PLC),  control the printing servo motor and the pull servo motor accurately. The various steps of the machine drive at 100% synchronously to ensure the printing precision.
2. Except for the independent touch screen operation on each printing stand, the central touch control screen can also complete the fine-tuning overprint of each color seat to reduce human resources.
3. Preset the total quantity of printing, reaching quantity automatic stop, first printing / second printing free conversion.
4. Touch-controller model ink system can convert manual/automatic ink discharge, and the panel is more straightforward and more intuitive

Specification for Intermittent Printing Machine

Max. web width  :280 mm
Max. Printing Area  : Intermittent Rotary: 50-230(L) x 270(w)
Max. Speed  : 30- 200 RPH ,12000 imp / hr
Power  supply :3 phase, 80 A, 15 kW
Machine weight  : 3500KG(N.W.), 4500 KG(G.W.)

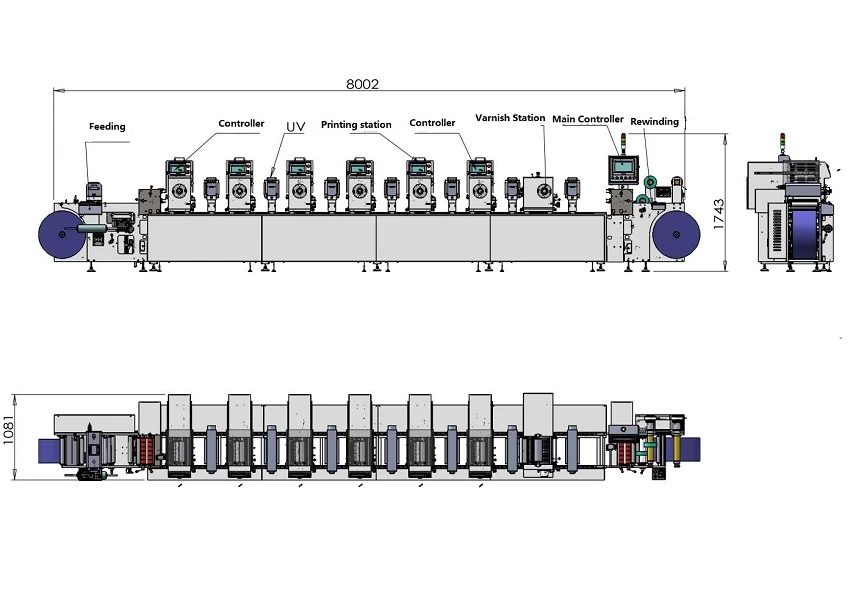

Mechanical installation dimensions  :L 450 x W 120 x H 140 (CM)


Features for Intermittent Printing Machine Manufacturer

1.UV light system ensures printing drying effect and source material.

2. UV lamp time monitoring system know the UV drying effect, the lamp using time, and facilitate regular replacement.
3. Multi-stage adjustment system to meet customers' different light-solid power in different printed materials, saving a lot of electricity.
4. Fault detection and alarm protection system ensure to shut down urgently under the mistake operation
5. Speed detection system, which can be adjusted automatically light solid power according to the online speed of the printing press.

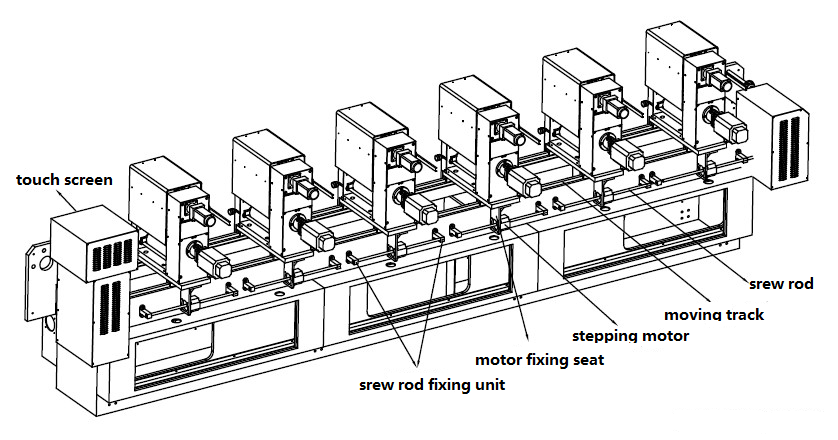

6, The operator according to the size of the printed matter,  setting in the main touch panel, after pressing the registration button, the machine can automatically calculate the coordinates of each printing station according to the set size (automatic alignment accuracy can be achieved ±0.5 mm), then the motor automatically enters the locked state to prevent the wrong operation  from affecting the printing accuracy.

7. After the machine is started, the operator can fine-tune precision according to the printing effect by manually printing the seat moving button, and the best overprinting precision reaches 0.01 mm - 0.02 mm.


What's the price of the Rotary Letterpress Machine?

1, How many colors do you want to print? (2-7)

2, What kind of ink do you use? the oil-based ink or water-based ink or UV ink?

3, Do you want the letterpress full rotary printing or letterpress intermittent rotary printing?

4, what is the max. Web width?

5, what is the max. Printing area of your paper?

6, Could you send some photos?
