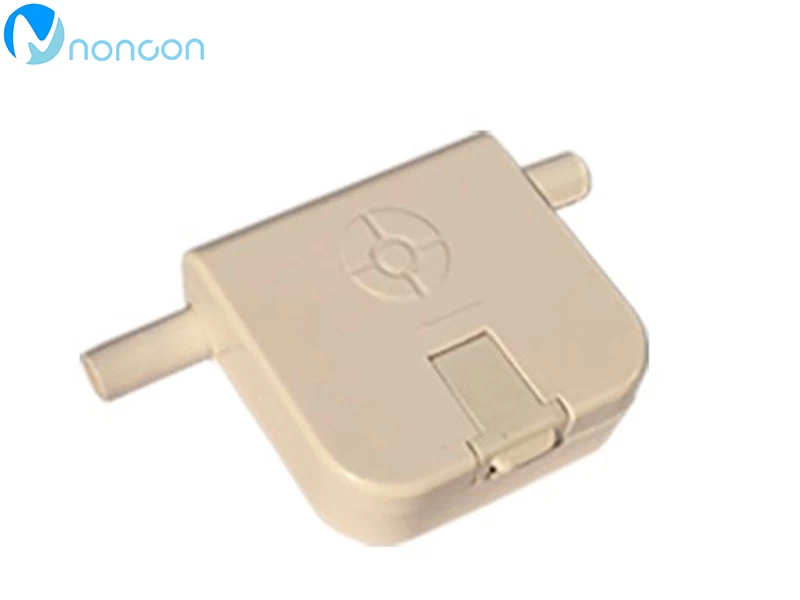

LF2600 Series Liquid Flow Sensors

The LF2600 series liquid flow sensor adopts the MEMS flow sensor technology and sensor packaging technology of Guangzhou Nan Kong Automation Equipment Co.,Ltd., which integrates the thermal flight time (TOF) and thermal sensing principles.



Product features

The shell material of the sensor is polycarbonate with stable chemical performance. The unique MEMS sensor chip structure and special packaging technology enable the maximum working pressure of the sensor to reach 0.5MPa.

The liquid velocity reached 400mL/min.

High precision(±5%).

Fast response time(40ms).

Super large volume ratio(100:1).

Excellent reliability.

Low cost application.

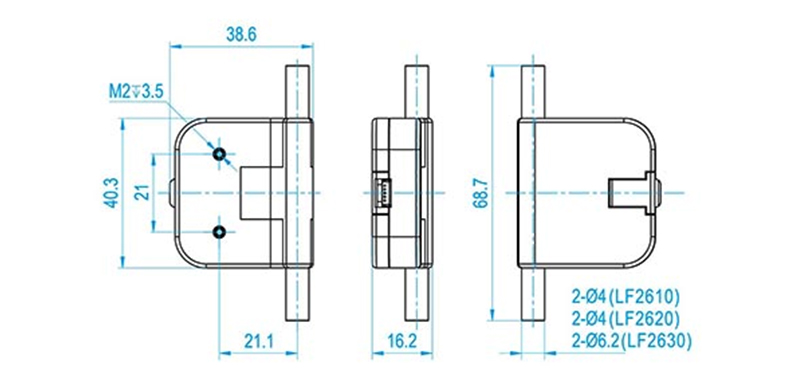

Mechanical dimensions

Liquid flow sensor size


Technical parameters

Parameter

LF2610

LF2620

LF2630

Unit

Maximum flow

±200

uL/min

          ±25       ±400

mL/min

Range than

100:1

Precision

±5%or±0.5%FS(Larger)

Repetitive

±0.5

%

Zero output drift

±0.3

Working pressure

5~15

Vdc

Power dissipation

60

mW

Working current

12

mA

Response time T63

40

ms

Output way

Linear,I2C/analog voltage 0.5~4.5VDC

Maximum working pressure

1.0

MPa

Working temperature

5~50

Electrical interface

SM05B-SRSS-TB(JST)

Calibration mode

Deionized water20101.325kPa

Packaging materials

Polycarbonate

Mechanical dimensions

68.7×38.6×16.2

mm3

Weight

15

g

Storage temperature

-10~+60

Storage humidity

<95%RH(No icing or condensation)

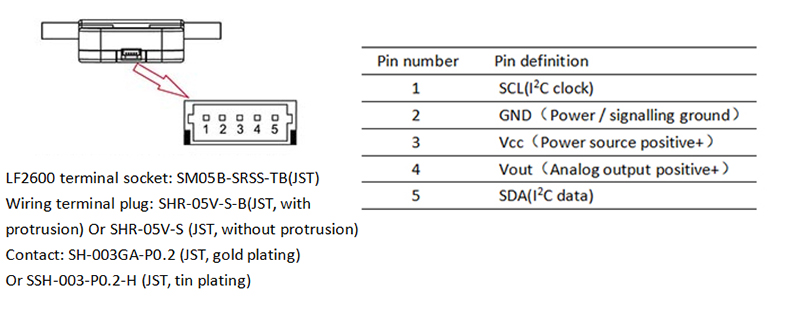

Electrical interface

Electrical interface for liquid flow sensor
