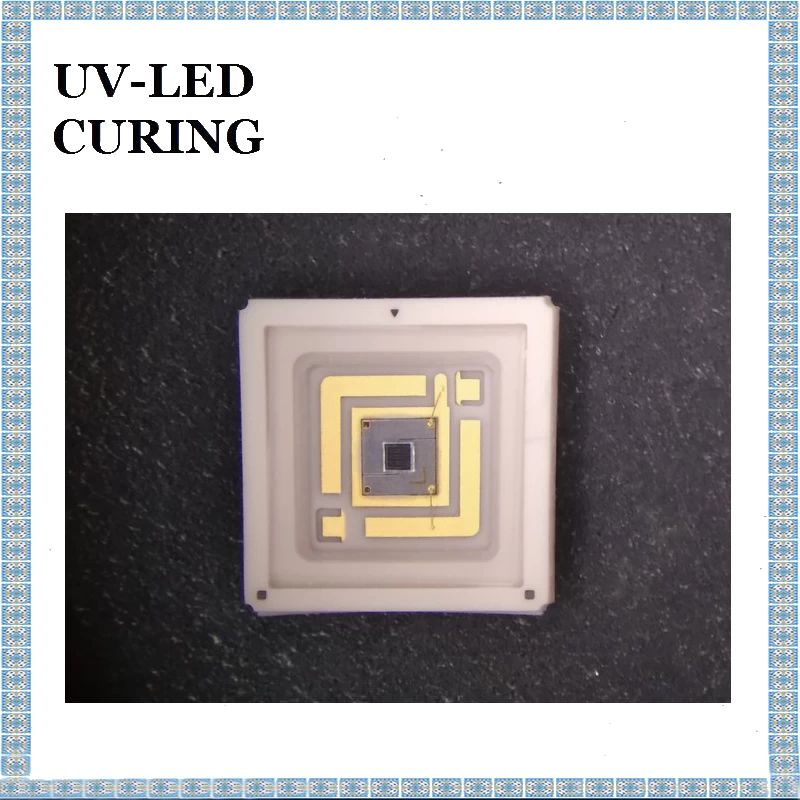

LG UVC LED UV Disinfection Light LEUVA66G00HF00 10mW 278nm Original Direct Supply
High Power UVC LED 275nm-278nm-280nm, LG Original Shipment, Deep UV 10mW, High Power Model: LEUVA66G00HF00, Size 6060, Quartz Glass, in Stock, Original Factory Direct Sale
Dedicated UV lamp beads for sterilization, ozone detection, surface or water contamination, protein analysis, DNA identification, drug development, optical sensing, image tonal measurement, fluorescence excitation, etc.

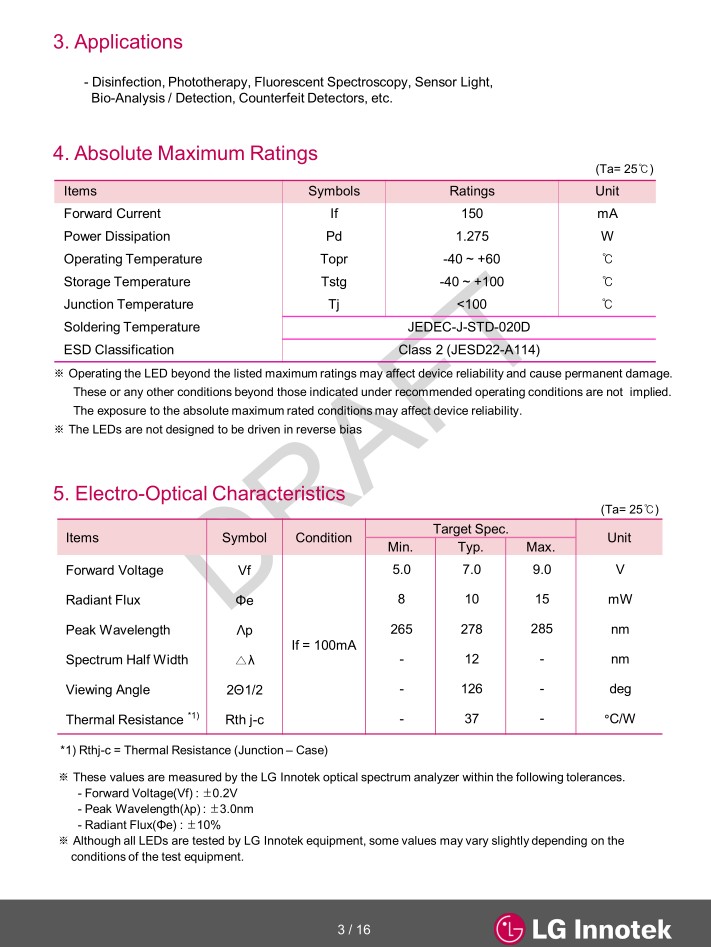

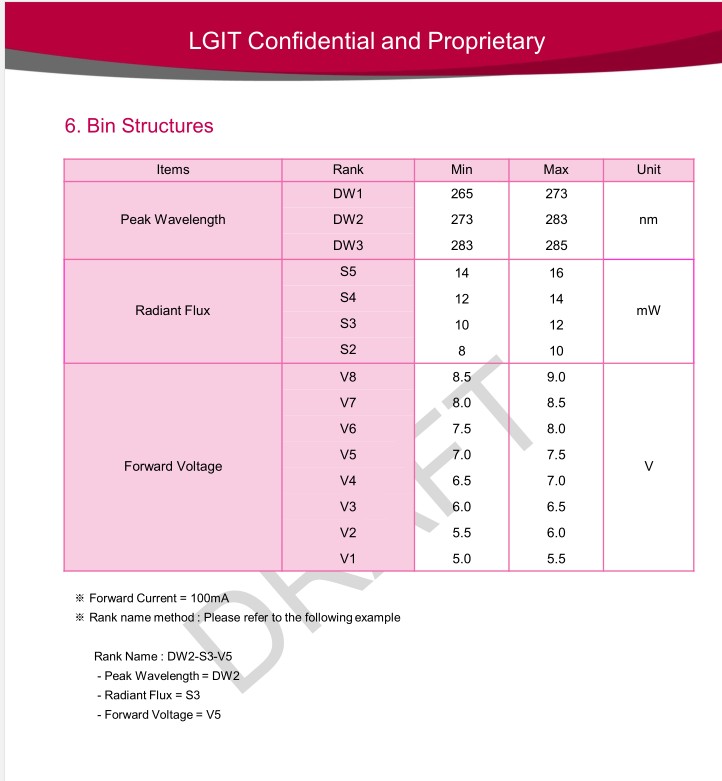

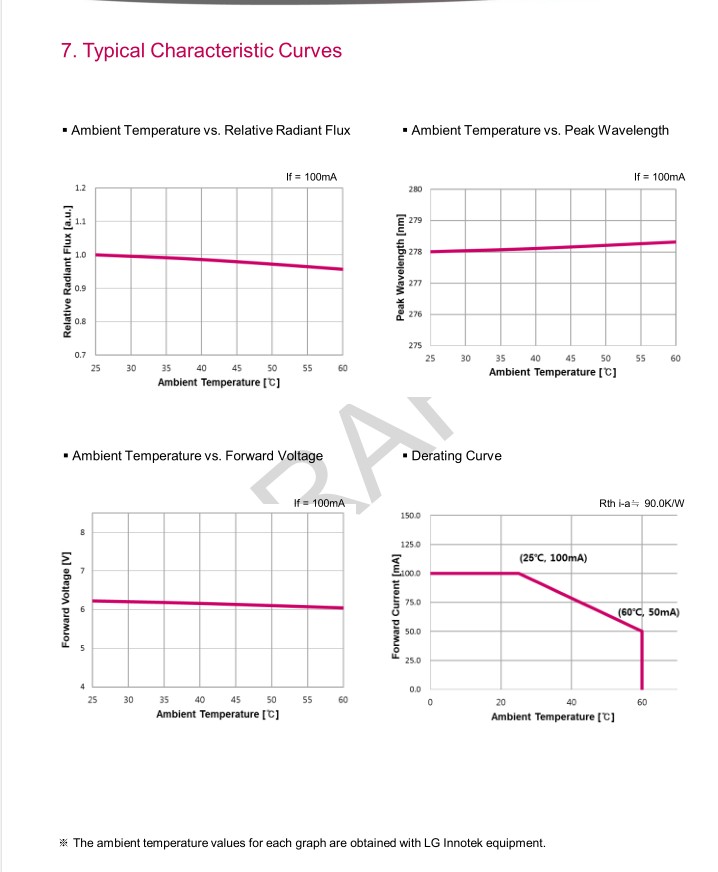

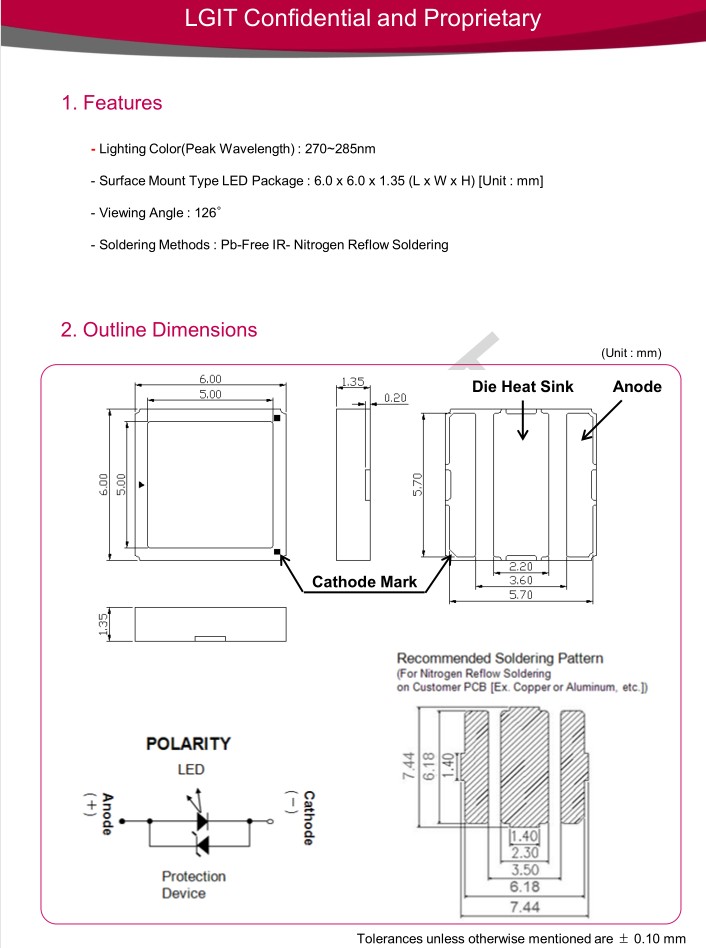

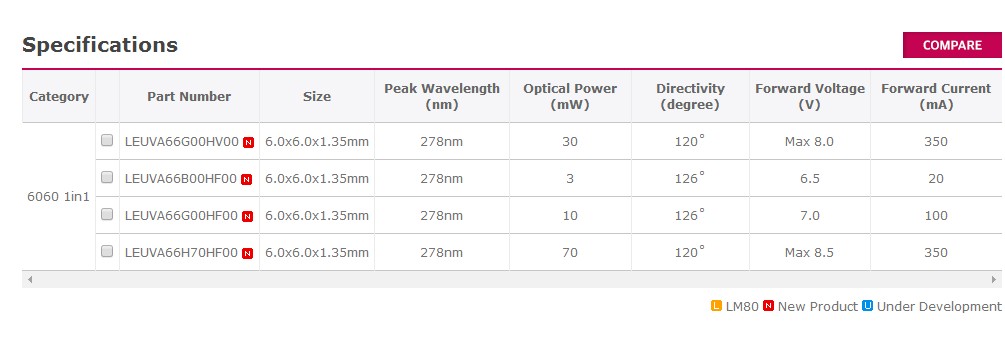

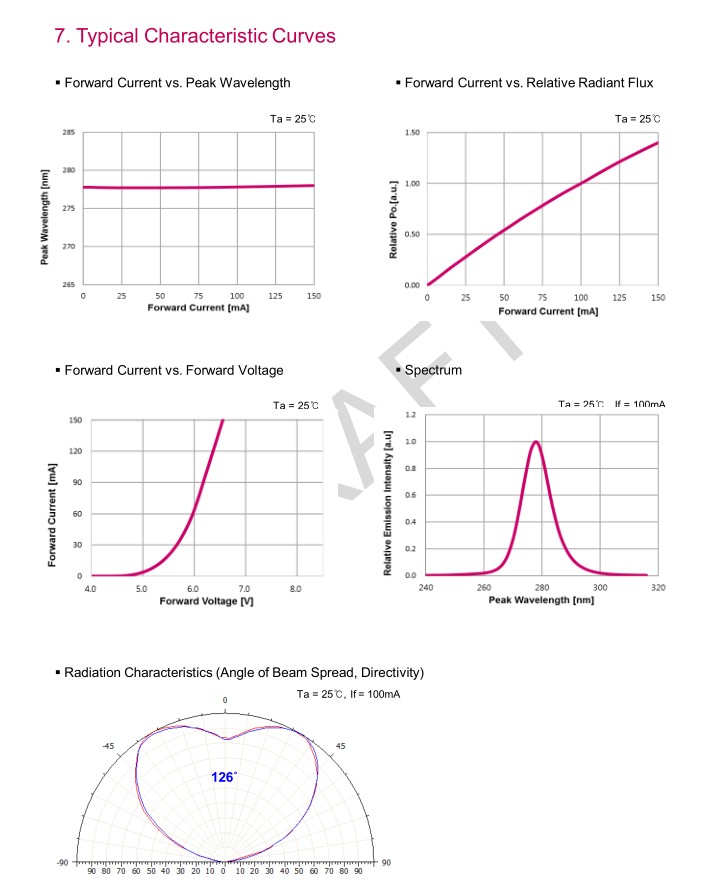

Parameters of LG UVC Light LEUVA66G00HF00 :
What Features do UVC Have ?
1. Compact, Slim Size, Light-weight SMD Package
2. Low Power Consumption
3. Robust Deep UV Light Source
4. Low Thermal Resistance
5. High Quality and High Reliability

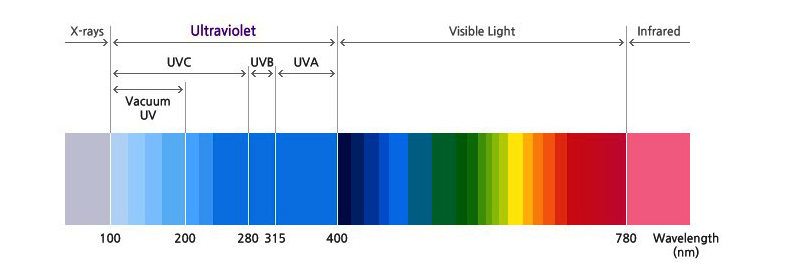

How to Classify the Wavelength of UV LED?
UV LED can be classified by spectrum in a number of ways. Among them, the ISO classification standard for sunlight ISD-DIS-21348 classification can be divided into UVA（400-315nm），NUV（400-300nm），UVB（315-280nm），MUV（300-200nm），UVC（280-100nm）.
|
How to Distinguish UV?
|

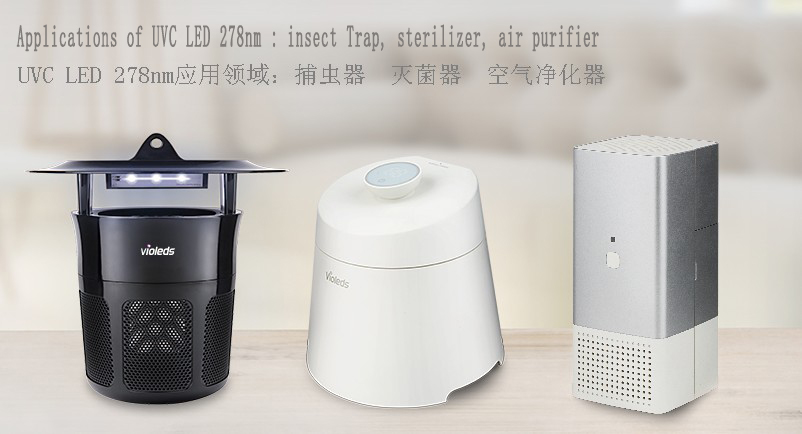

The Applications of UV :
|
|
Near UV
|
UV-A
|
315-400
|
Hardening of polymer or printer inks, measurement of gas, measurement of nitrogen elements, insect traps, lighting, optical induction, image tone measurement ID, identification of banknotes, etc.
|
|
UV-B
|
280-315
|
UV hardening, optical therapy, optical induction, image tone measurement, crime analysis, protein analysis, DNA identification, drug development, etc.
|
|
Deep UV
|
UV-C
|
100-280
|
Sterilization, ozone defection, removal of surface r water pollution, protein analysis, DNA identification, drug development, optical sensing, image tone measurement, etc.
|
