Heavy Duty Shelf Roll Forming Machine

Heavy Duty Shelf Roll Forming Machine is make for shelf pillar truss.

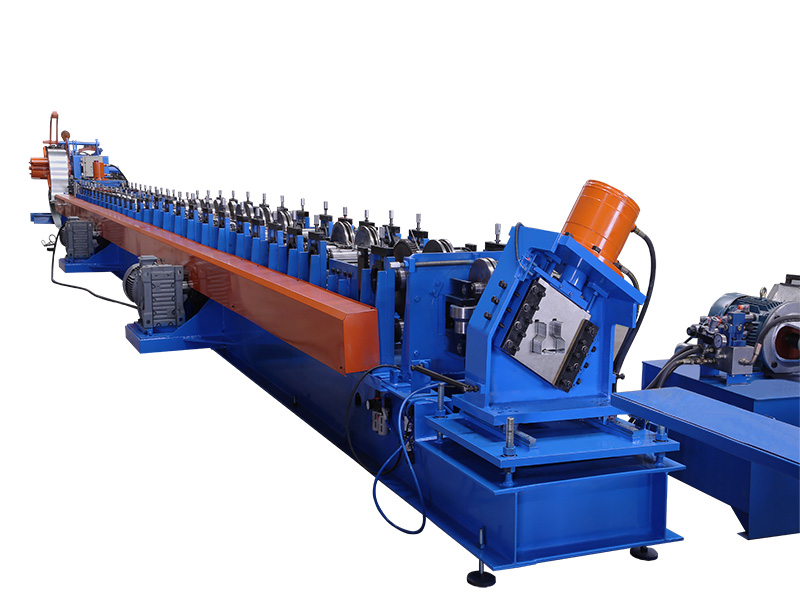

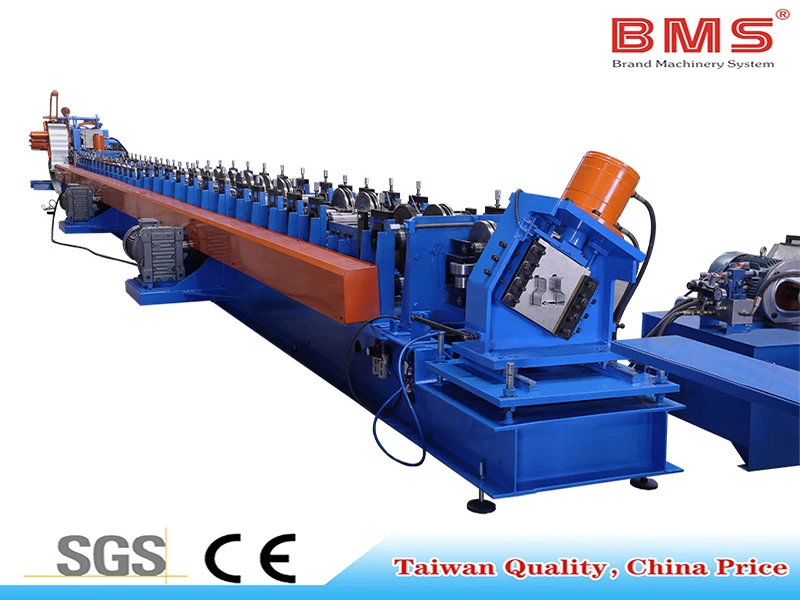

Heavy Duty Shelf Pillar Roll Forming Machine

Heavy Duty Shelf Pillar Roll Forming Machine

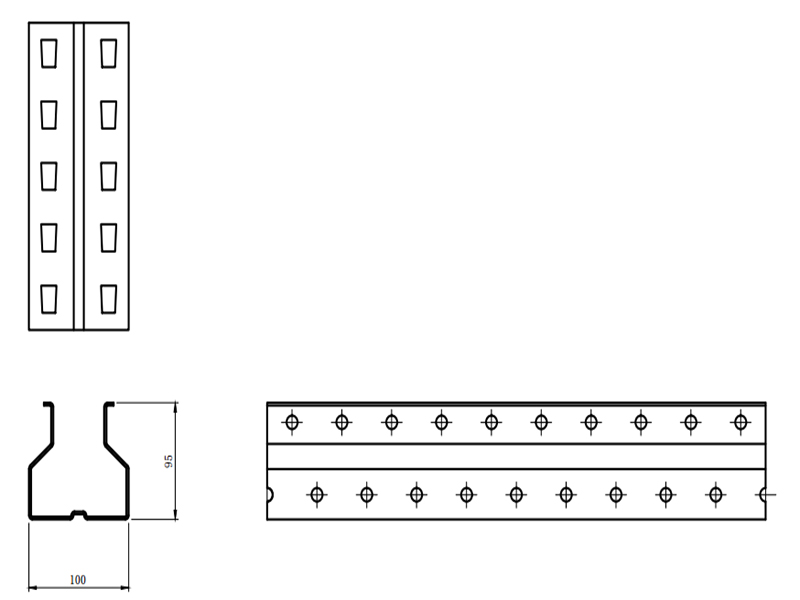

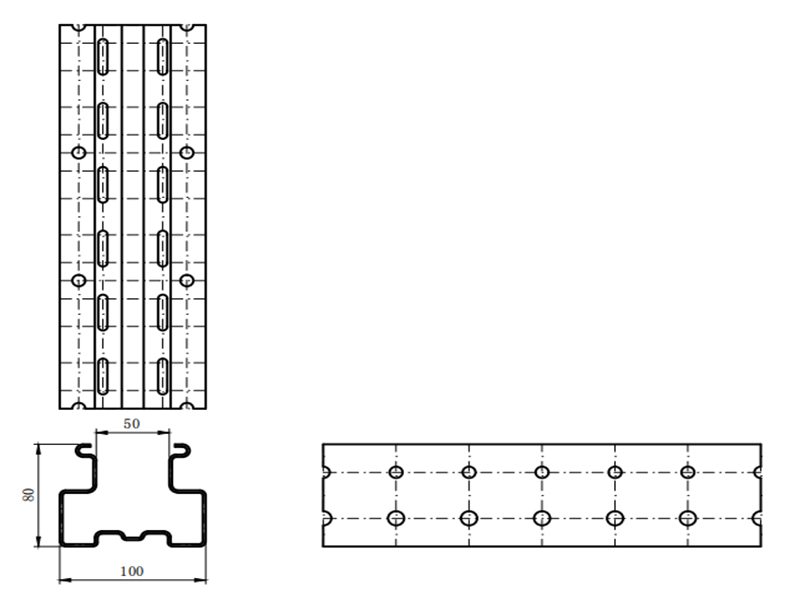

Profile


Material

Material Thickness: 2.0-3.0mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With yield strength G340-550Mpa



Work Follow

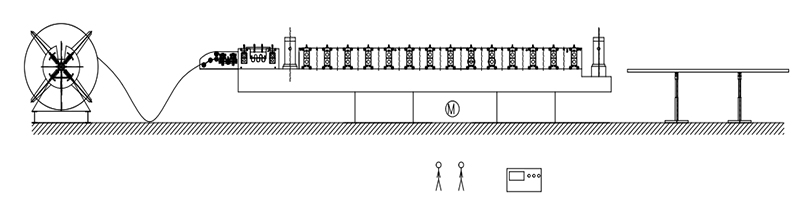

Decoiler→Guide Feeding & Leveling Device→Roll Forming System→Hydraulic Post Cutter →Exit Rack





Machine Components

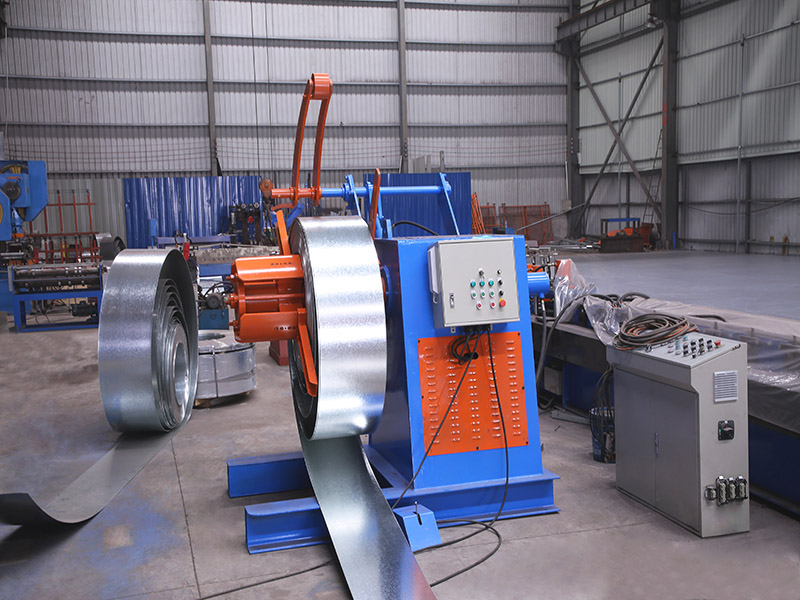

1) 5 Ton Hydraulic Decoiler: one set

Hydraulic control steel coil inner bore shrinkage and stop
Max. feeding width:600mm
Coil ID Range:508±30mm,Outside Diameter:1500mm
Max capacity:5 ton, motor:3KW, frequency speed control
Oil pump motor:3KW,With Press Arm
Add automatic feeding power and self-stop device


Heavy Duty Shelf Pillar Roll Forming Machine

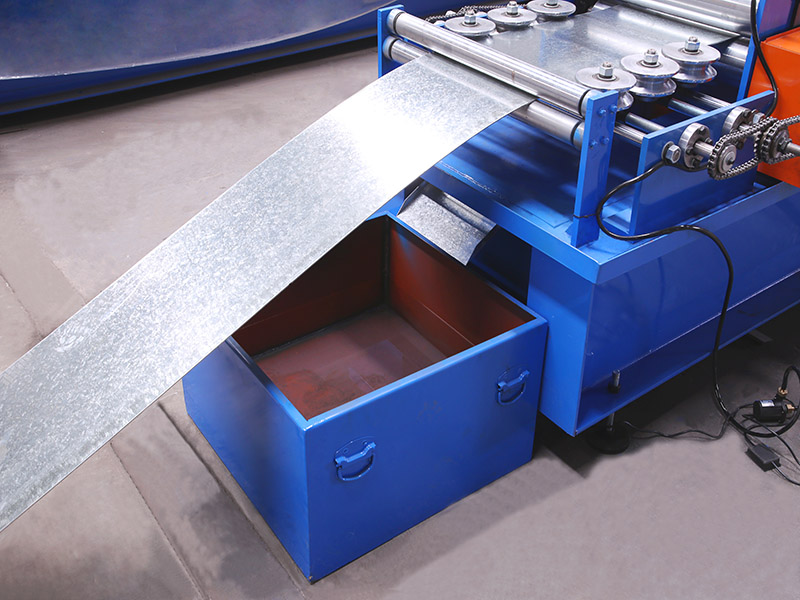

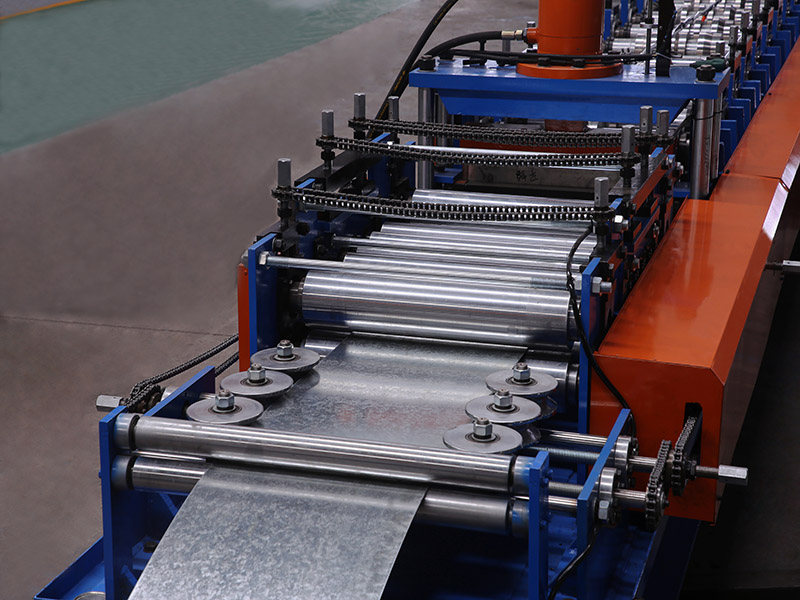

2) Feeding Guide & Leveling Device


Up three down four totally seven shafts leveling device
With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t20mm
Shafts manufactured from 45# steel,Diameter=φ90mm,Tone plated with hard chrome Coated,precision machined


Heavy Duty Shelf Pillar Roll Forming Machine



Heavy Duty Shelf Pillar Roll Forming Machine

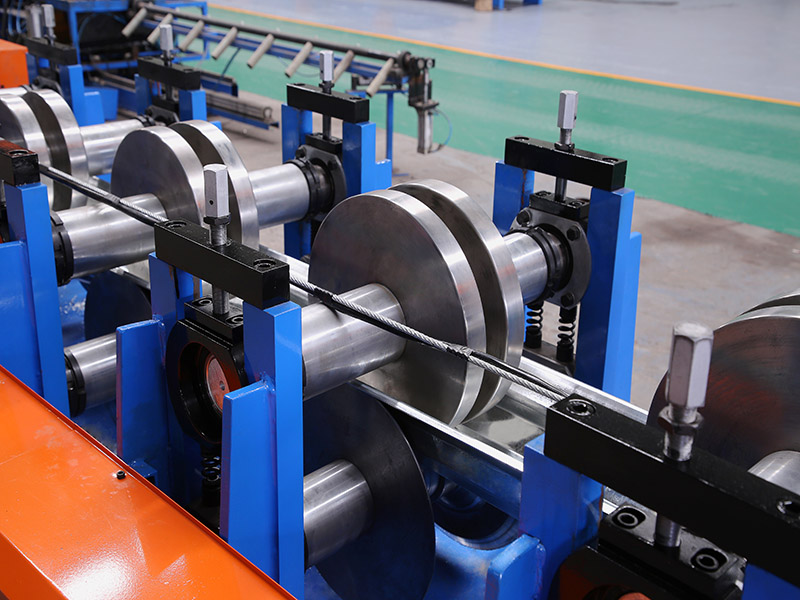

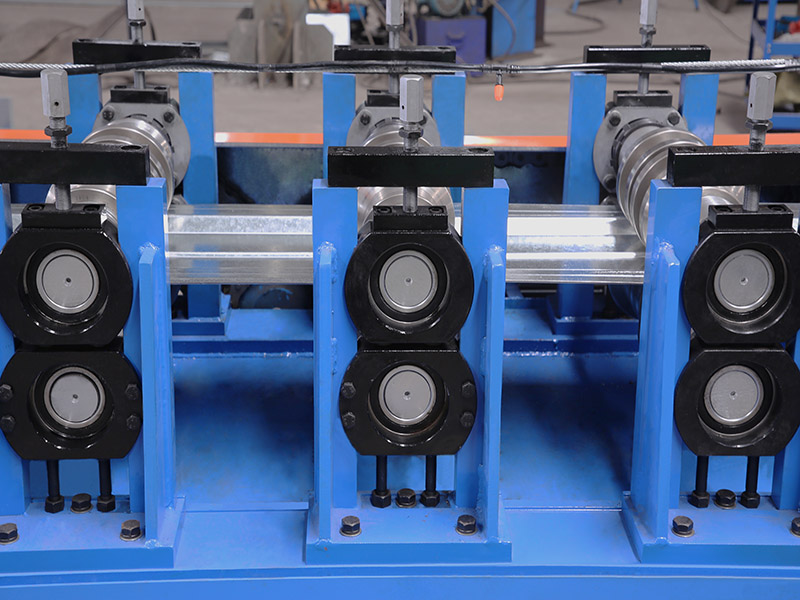

3) Main Machine

Body frame made from H450 type steel by welding.

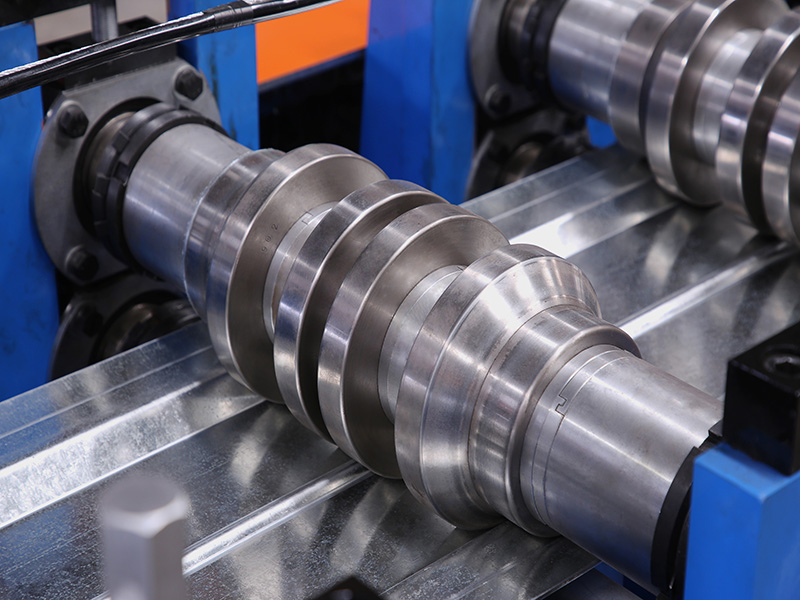

Rollers manufactured from Cr12 steel,CNC lathes,Heat Treatment,hard Chrome Coated.
with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust).
Shafts Diameter=ф95,precision machined.
Gear/Sprocket driving,about 30-step to form.
Main Motor=15KW*2, Frequency speed control.


Heavy Duty Shelf Pillar Roll Forming Machine


Heavy Duty Shelf Pillar Roll Forming Machine


Heavy Duty Shelf Pillar Roll Forming Machine

With Arch Structure

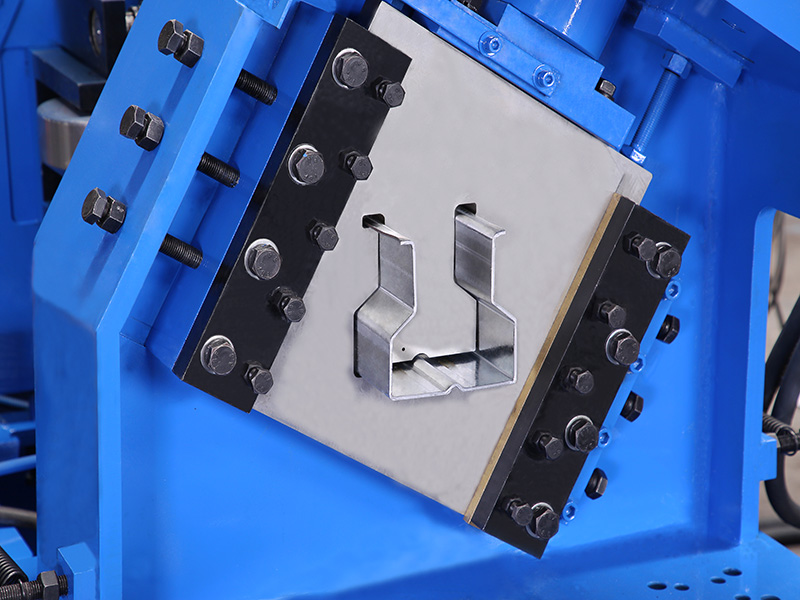

4) Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking.
Hydraulic motor: 7.5KW ;Cutting pressure: 0-14Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree.
The cutting power is provided by the independent engine hydraulic station.


Heavy Duty Shelf Pillar Roll Forming Machine



Heavy Duty Shelf Pillar Roll Forming Machine

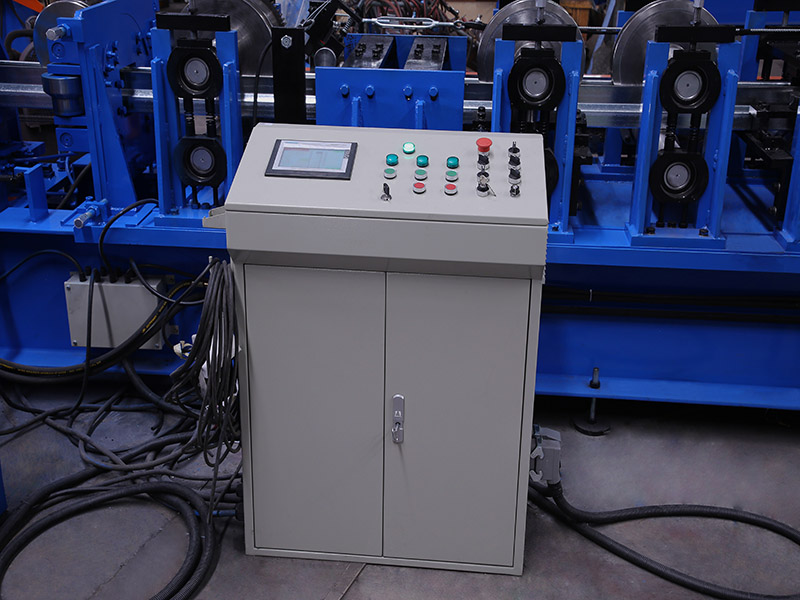

5) PLC Control System

Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.


Heavy Duty Shelf Pillar Roll Forming Machine



6)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

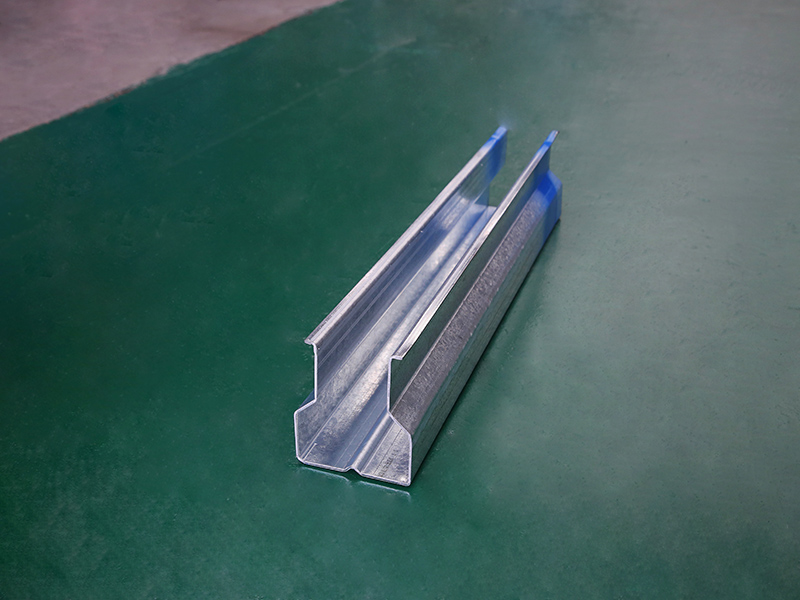

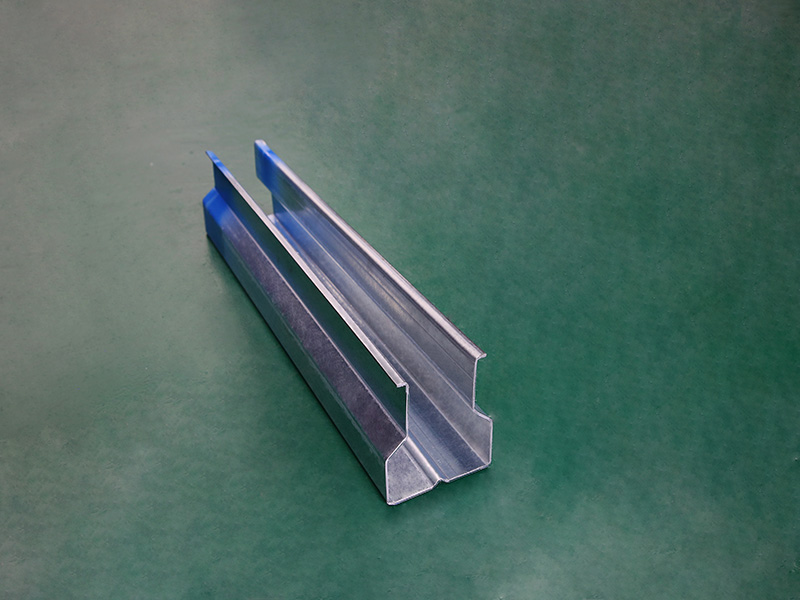

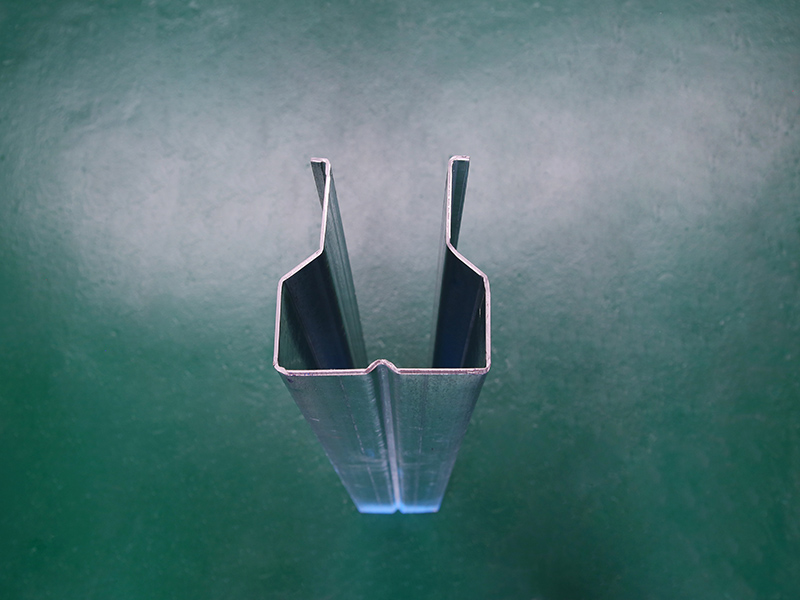

7)Product Show


Heavy Duty Shelf Pillar Roll Forming Machine



Heavy Duty Shelf Pillar Roll Forming Machine



Heavy Duty Shelf Pillar Roll Forming Machine



Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.





After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
