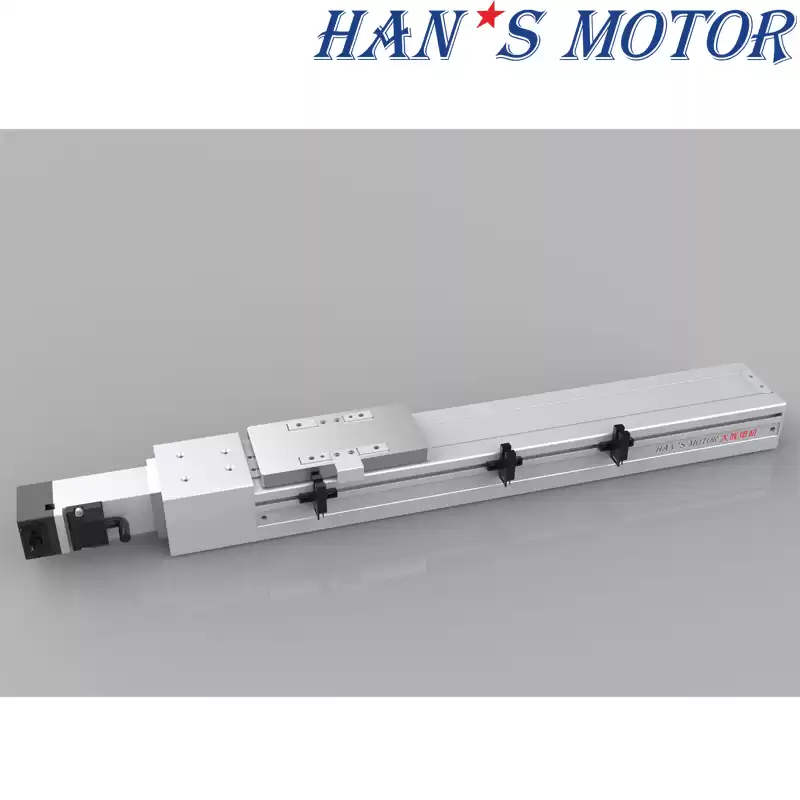

Products Name: High Precision Linear Motion Guide Module For 3D Printer Router Machine
Product Specifications
|
Performance
|
Repeat positioning accuracy (mm)
|
±0.01
|
|
Screw lead (mm)
|
5
|
10
|
20
|
32
|
|
Max.velocity (mm/s)
|
250
|
500
|
1000
|
1600
|
|
Max.conveyable weight
|
horizontal (kg)
|
85
|
65
|
32
|
20
|
|
Vertical (kg)
|
25
|
21
|
10
|
6
|
|
Ratedthrust (N)
|
625
|
312
|
200
|
156
|
|
Standard stroke (mm)
|
100-1050mm
|
|
Parts
|
AC servo motor power (W)
|
400
|
|
Ballscrew O.D （mm)
|
C7 Φ16
|
|
Linear slide
|
W15*H12.5
|
|
Coupling
|
Motor Φ14 * screwΦ10
|
|
Original sensor
|
external hanging
|
EE-SX672 (NPN)
|
|
build-in
|
EE-SX674 (NPN)
|

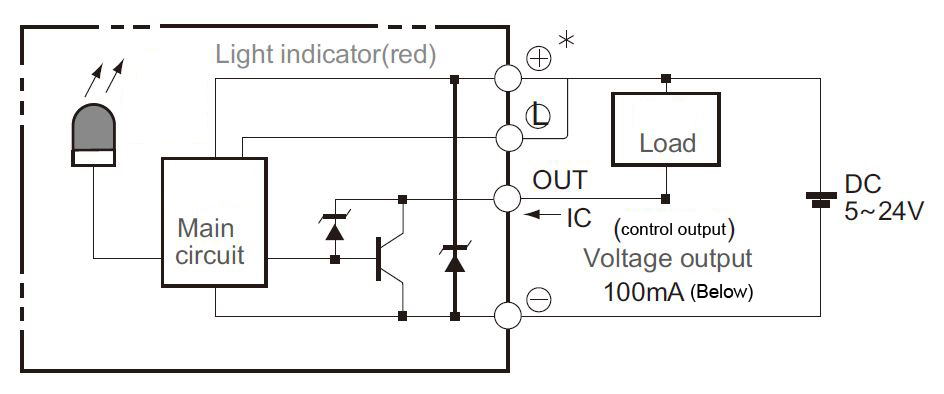

Sensor Connection Diagram <Origin and End Points>

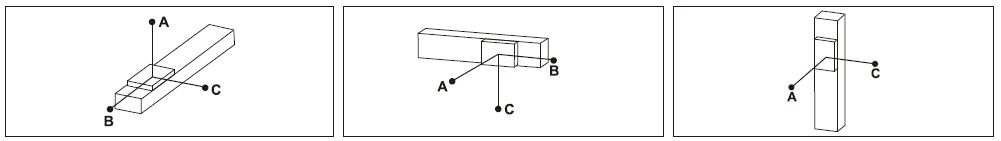

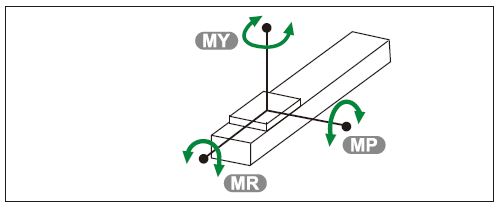

Allowable load torque table N.m
Installation method:
(Unit: mm)
|
Horizontal installation
|
A
|
B
|
C
|
|
Lead 5
|
40kg
|
2448
|
316
|
322
|
|
55kg
|
2197
|
247
|
257
|
|
70kg
|
2005
|
207
|
219
|
|
Lead 10
|
25kg
|
1958
|
370
|
490
|
|
35kg
|
1660
|
370
|
333
|
|
47kg
|
1725
|
347
|
243
|
|
Lead 20
|
5kg
|
2265
|
1674
|
961
|
|
10kg
|
1402
|
855
|
537
|
|
30kg
|
1047
|
445
|
324
|
|
Lead 32
|
3kg
|
2263
|
1672
|
958
|
|
16kg
|
1400
|
852
|
535
|
|
24kg
|
1052
|
448
|
328
|
(Unit: mm)
|
Hanging installation
|
A
|
B
|
C
|
|
Lead 5
|
40kg
|
204
|
112
|
1394
|
|
55kg
|
130
|
57
|
1115
|
|
70kg
|
85
|
24
|
895
|
|
Lead 10
|
25kg
|
414
|
333
|
1277
|
|
35kg
|
235
|
157
|
929
|
|
47kg
|
129
|
57
|
751
|
|
Lead 20
|
10kg
|
461
|
372
|
1410
|
|
20kg
|
264
|
178
|
1027
|
|
30kg
|
148
|
69
|
832
|
|
Lead 32
|
8kg
|
997
|
1217
|
1709
|
|
16kg
|
513
|
555
|
985
|
|
24kg
|
268
|
231
|
640
|
(Unit: mm)
|
Vertical installation
|
A
|
C
|
|
Lead 5
|
8kg
|
762
|
614
|
|
13kg
|
607
|
489
|
|
17kg
|
498
|
483
|
|
Lead 10
|
5kg
|
1365
|
1101
|
|
8kg
|
901
|
727
|
|
12kg
|
674
|
543
|
|
Lead 20
|
2kg
|
2420
|
2031
|
|
4kg
|
1690
|
1360
|
|
6kg
|
1300
|
1050
|
|
Lead 32
|
3kg
|
1695
|
1361
|
|
-
|
-
|
-
|
|
-
|
-
|
-
|
Static allowable load inertia
(Unit: mm)
Matching with Servo Motor List
|
Brand
|
Motor Model
|
Brake or without brake
|
Power
|
Voltage
|
Servo motor Model
|
Servo driver model
|
|
Han's
|
H
|
without brake (Horizontal )
|
400
|
200
|
HSAL-A04FL-B0.2-C2
|
HANS-A-00323-P
|
|
Brake (Vertical )
|
400
|
200
|
HSAL-A04BL-B0.2-C2
|
HANS-A-00323-P
|
|
International
|
P
|
without brake (Horizontal )
|
400
|
200
|
MSMF042L1U2M
|
MADLN25SE
|
|
Brake (Vertical )
|
400
|
200
|
MSMF042L1U2M
|
MADLN25SE
|
|
Mitsubishi
|
M
|
without brake (Horizontal )
|
400
|
200
|
HF-KP43
|
MR-J3-40A
|
|
Brake (Vertical )
|
400
|
200
|
HF-KP43B
|
MR-J3-40A
|

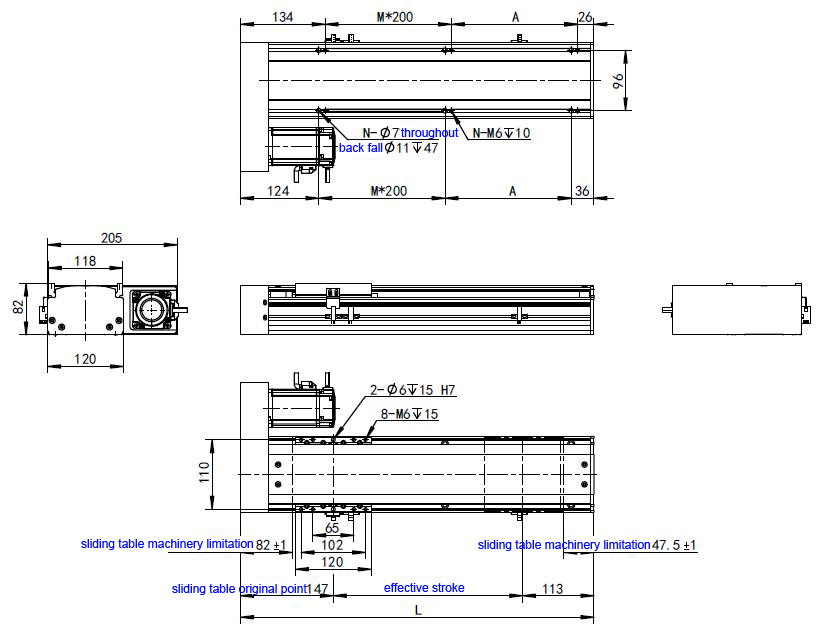

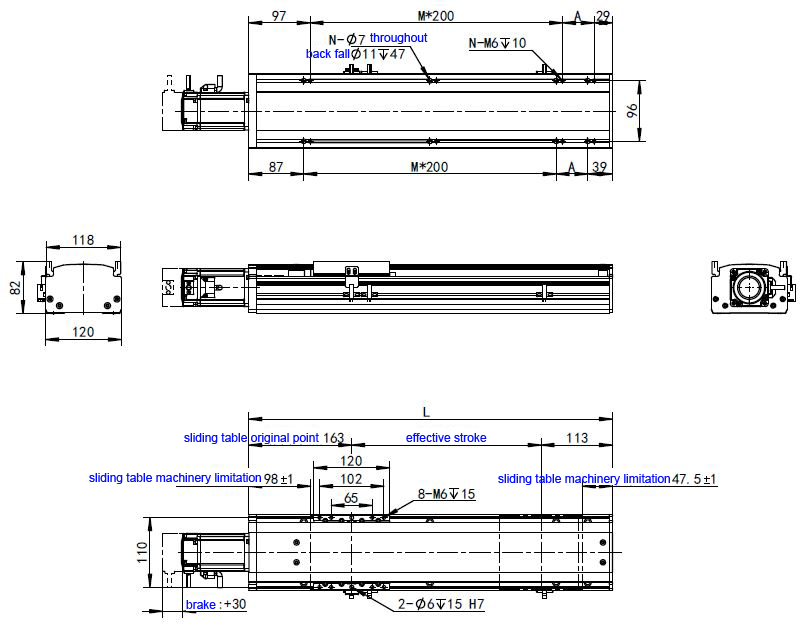

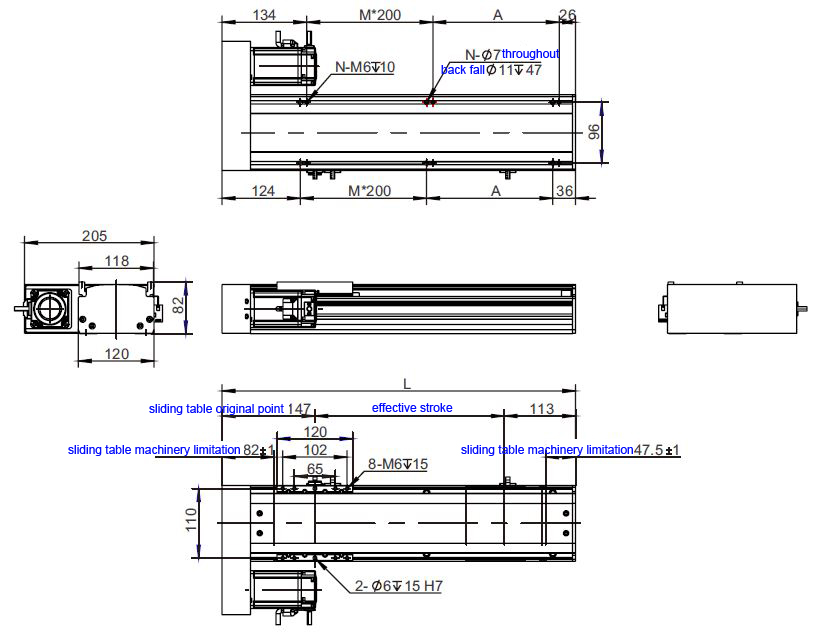

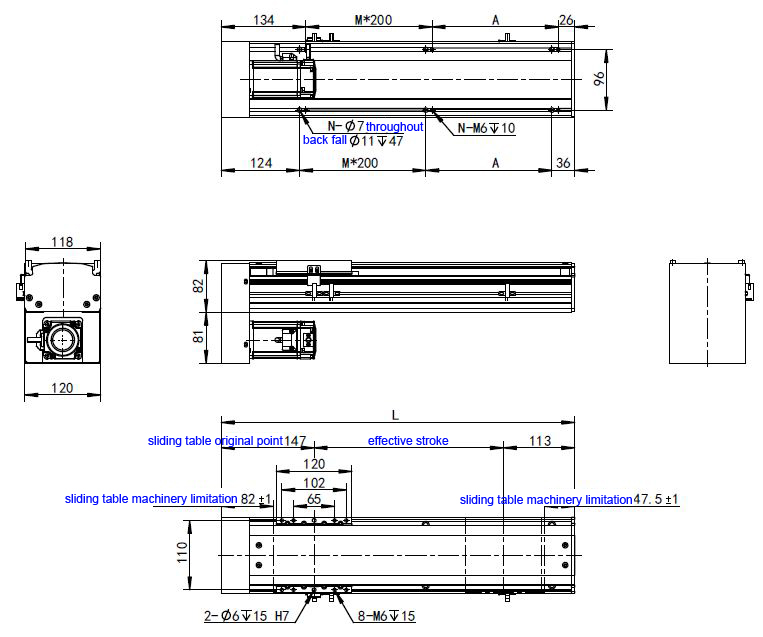

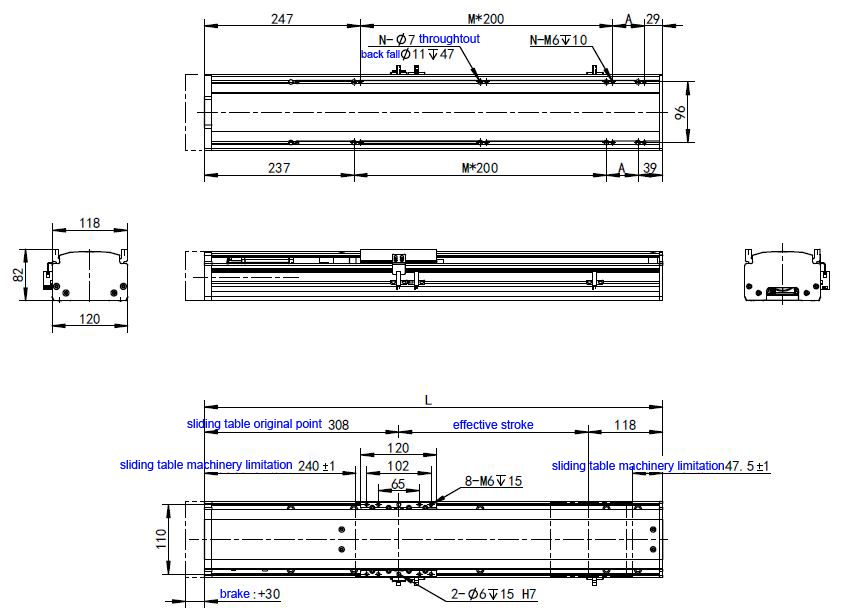

Dimension
Motor Built-in
|
Effective stroke
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
650
|
700
|
750
|
800
|
850
|
900
|
950
|
1000
|
1050
|
|
L
|
526
|
576
|
626
|
676
|
726
|
776
|
826
|
876
|
926
|
976
|
1026
|
1076
|
1126
|
1176
|
1226
|
1276
|
1326
|
1376
|
1426
|
1476
|
|
A
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
|
M
|
1
|
1
|
1
|
1
|
2
|
2
|
2
|
2
|
3
|
3
|
3
|
3
|
4
|
4
|
4
|
4
|
4
|
5
|
5
|
5
|
|
N
|
6
|
6
|
6
|
6
|
8
|
8
|
8
|
8
|
10
|
10
|
10
|
10
|
12
|
12
|
12
|
12
|
14
|
14
|
14
|
14
|
|
KG
|
6.82
|
7.32
|
7.82
|
8.32
|
8.82
|
9.32
|
9.82
|
10.32
|
10.82
|
11.32
|
11.82
|
12.32
|
12.82
|
13.32
|
13.82
|
14.32
|
14.82
|
15.32
|
15.82
|
16.32
|
Motor Exposed
|
Effective stroke
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
650
|
700
|
750
|
800
|
850
|
900
|
950
|
1000
|
1050
|
|
L
|
376
|
426
|
476
|
526
|
576
|
626
|
676
|
726
|
766
|
826
|
876
|
926
|
976
|
1026
|
1076
|
1126
|
1176
|
1226
|
1276
|
1326
|
|
A
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
|
M
|
1
|
1
|
1
|
1
|
2
|
2
|
2
|
2
|
3
|
3
|
3
|
3
|
4
|
4
|
4
|
4
|
5
|
5
|
5
|
5
|
|
N
|
6
|
6
|
6
|
6
|
8
|
8
|
8
|
8
|
10
|
10
|
10
|
10
|
12
|
12
|
12
|
12
|
14
|
14
|
14
|
14
|
|
KG
|
6.11
|
6.61
|
7.11
|
7.61
|
8.11
|
8.61
|
9.11
|
9.61
|
10.11
|
10.61
|
11.11
|
11.61
|
12.11
|
12.61
|
13.11
|
13.61
|
14.11
|
14.61
|
15.11
|
15.61
|
Motor Fold Down
|
Effective stroke
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
650
|
700
|
750
|
800
|
850
|
900
|
950
|
1000
|
1050
|
|
L
|
360
|
410
|
460
|
510
|
560
|
610
|
650
|
710
|
760
|
810
|
860
|
910
|
960
|
1010
|
1060
|
1110
|
1160
|
1210
|
1260
|
1310
|
|
A
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
|
M
|
0
|
1
|
1
|
1
|
1
|
2
|
2
|
2
|
2
|
3
|
3
|
3
|
3
|
4
|
4
|
4
|
4
|
5
|
5
|
5
|
|
N
|
4
|
6
|
6
|
6
|
6
|
8
|
8
|
8
|
8
|
10
|
10
|
10
|
10
|
12
|
12
|
12
|
12
|
14
|
14
|
14
|
|
KG
|
6.55
|
7.05
|
7.55
|
8.05
|
8.55
|
9.05
|
9.55
|
10.05
|
10.55
|
11.05
|
11.55
|
12.05
|
12.55
|
13.05
|
13.55
|
14.05
|
14.55
|
15.05
|
15.55
|
16.05
|
Motor Left Fold
|
Effective stroke
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
650
|
700
|
750
|
800
|
850
|
900
|
950
|
1000
|
1050
|
|
L
|
360
|
410
|
460
|
510
|
560
|
610
|
650
|
710
|
760
|
810
|
860
|
910
|
960
|
1010
|
1060
|
1110
|
1160
|
1210
|
1260
|
1310
|
|
A
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
|
M
|
0
|
1
|
1
|
1
|
1
|
2
|
2
|
2
|
2
|
3
|
3
|
3
|
3
|
4
|
4
|
4
|
4
|
5
|
5
|
5
|
|
N
|
4
|
6
|
6
|
6
|
6
|
8
|
8
|
8
|
8
|
10
|
10
|
10
|
10
|
12
|
12
|
12
|
12
|
14
|
14
|
14
|
|
KG
|
6.55
|
7.05
|
7.55
|
8.05
|
8.55
|
9.05
|
9.55
|
10.05
|
10.55
|
11.05
|
11.55
|
12.05
|
12.55
|
13.05
|
13.55
|
14.05
|
14.55
|
15.05
|
15.55
|
16.05
|
Motor Right Fold
|
Effective stroke
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
650
|
700
|
750
|
800
|
850
|
900
|
950
|
1000
|
1050
|
|
L
|
360
|
410
|
460
|
510
|
560
|
610
|
650
|
710
|
760
|
810
|
860
|
910
|
960
|
1010
|
1060
|
1110
|
1160
|
1210
|
1260
|
1310
|
|
A
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
200
|
50
|
100
|
150
|
|
M
|
0
|
1
|
1
|
1
|
1
|
2
|
2
|
2
|
2
|
3
|
3
|
3
|
3
|
4
|
4
|
4
|
4
|
5
|
5
|
5
|
|
N
|
4
|
6
|
6
|
6
|
6
|
8
|
8
|
8
|
8
|
10
|
10
|
10
|
10
|
12
|
12
|
12
|
12
|
14
|
14
|
14
|
|
KG
|
6.55
|
7.05
|
7.55
|
8.05
|
8.55
|
9.05
|
9.55
|
10.05
|
10.55
|
11.05
|
11.55
|
12.05
|
12.55
|
13.05
|
13.55
|
14.05
|
14.55
|
15.05
|
15.55
|
16.05
|
Characteristics:
(1) Product: Aluminium extrusion-processed
profile;
(2) Material: Aluminium;
(3) Surface Finish: anodizing, polishing;
(4) Size: Small
size and light weight same as drawings or samples, and customized;
(5) Standard Fully
equipped:
High-quality, high precision, high rigidity;
(6) Optimal
design: Easy installation, robust, anti-corrosion, durable, and good heat-dissipation.

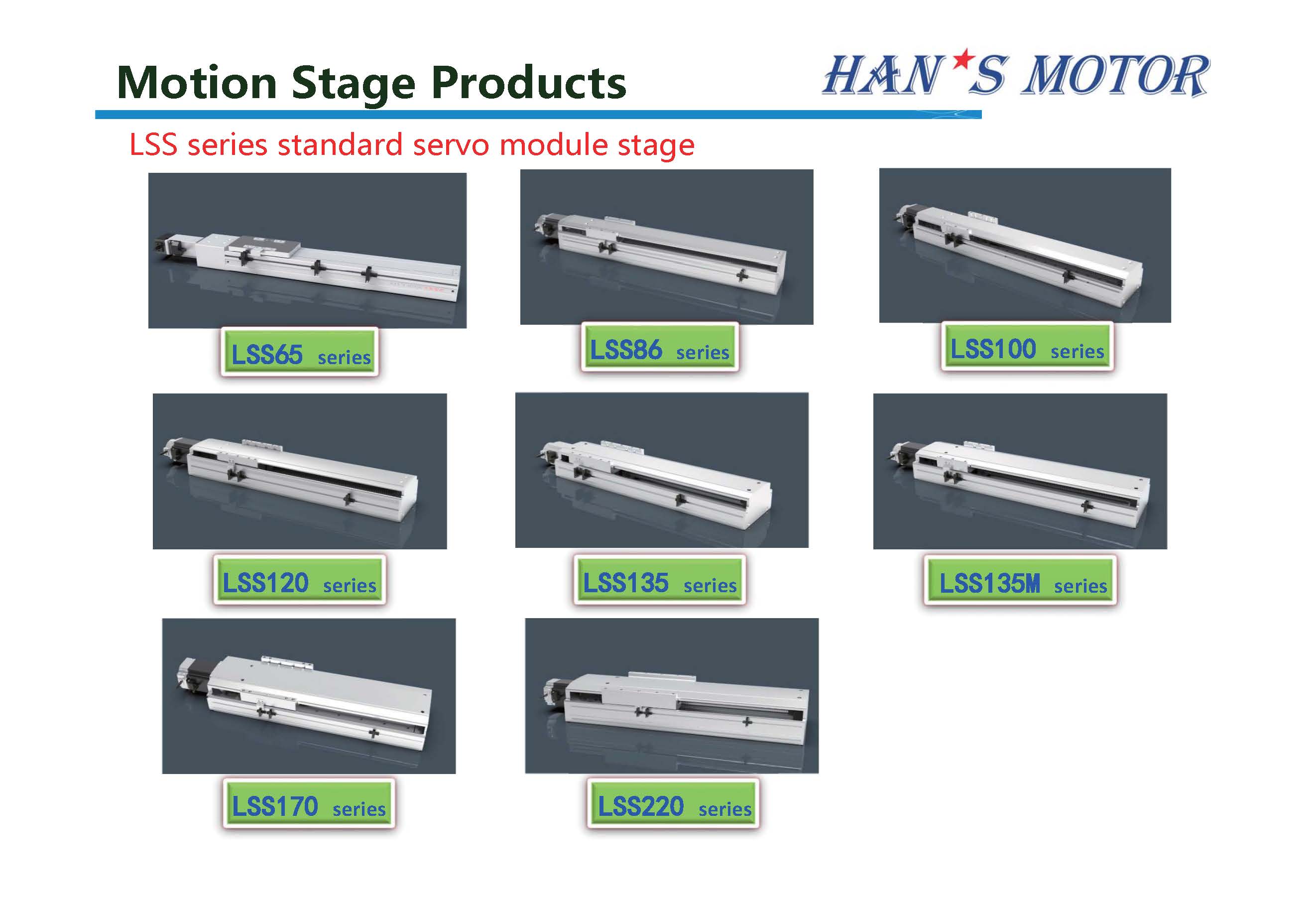

HAN'S MOTOR Linear Motor Module Related Products.:
