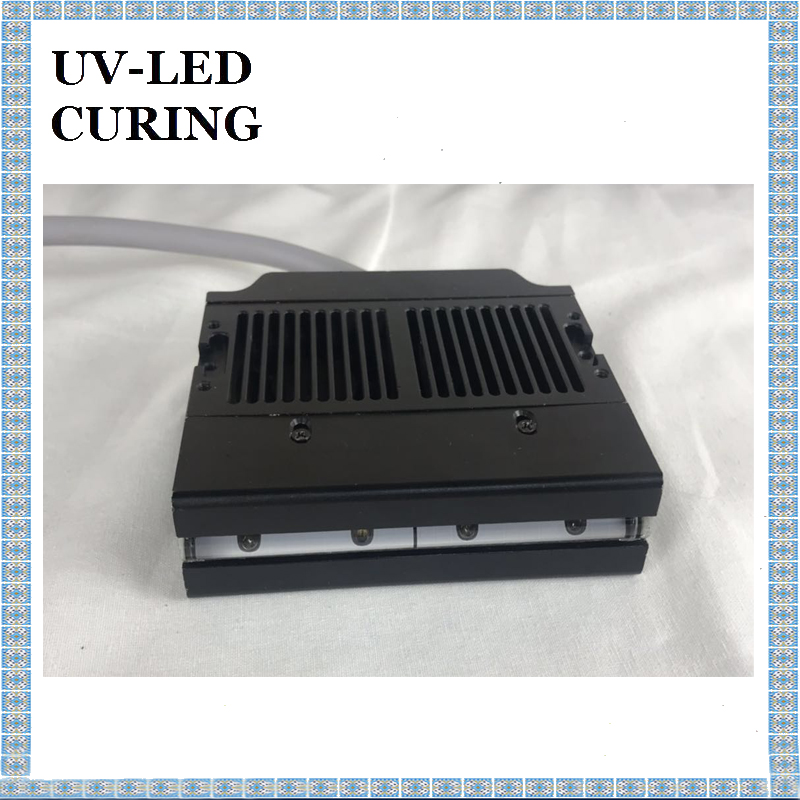

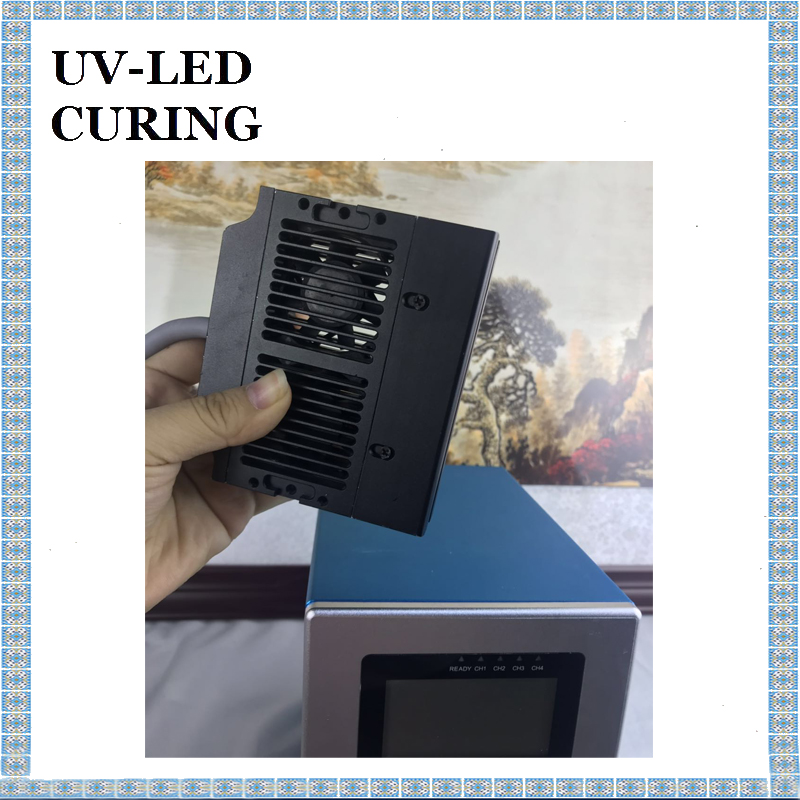

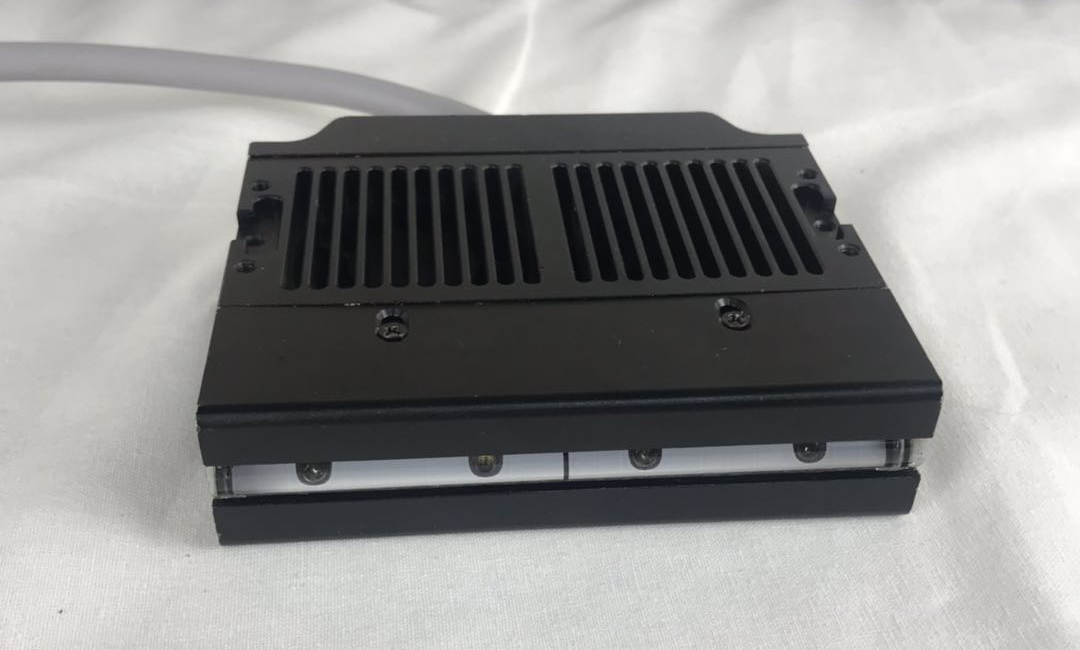

Linear Irradiation 100mm UV LED Light Source UV Glue Curing UV Light Source

Linear Type 100mm UV LED Light Source, UV glue fast curing, can cure mobile phone screen, flat, car navigation.



Linear Type 100mm High Speed 365nm UV Curing Machine, UV glue fast curing, can cure mobile phone screen, flat, car navigation.



Parameters of Uniform UV LED Flood Curing System Enhanced Curing Process :

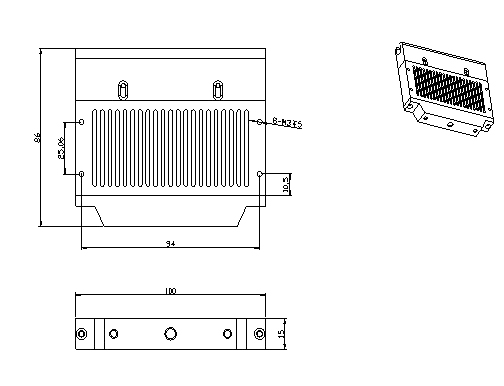

1. Lamp holder mounting hole position


How to mount the UV Light

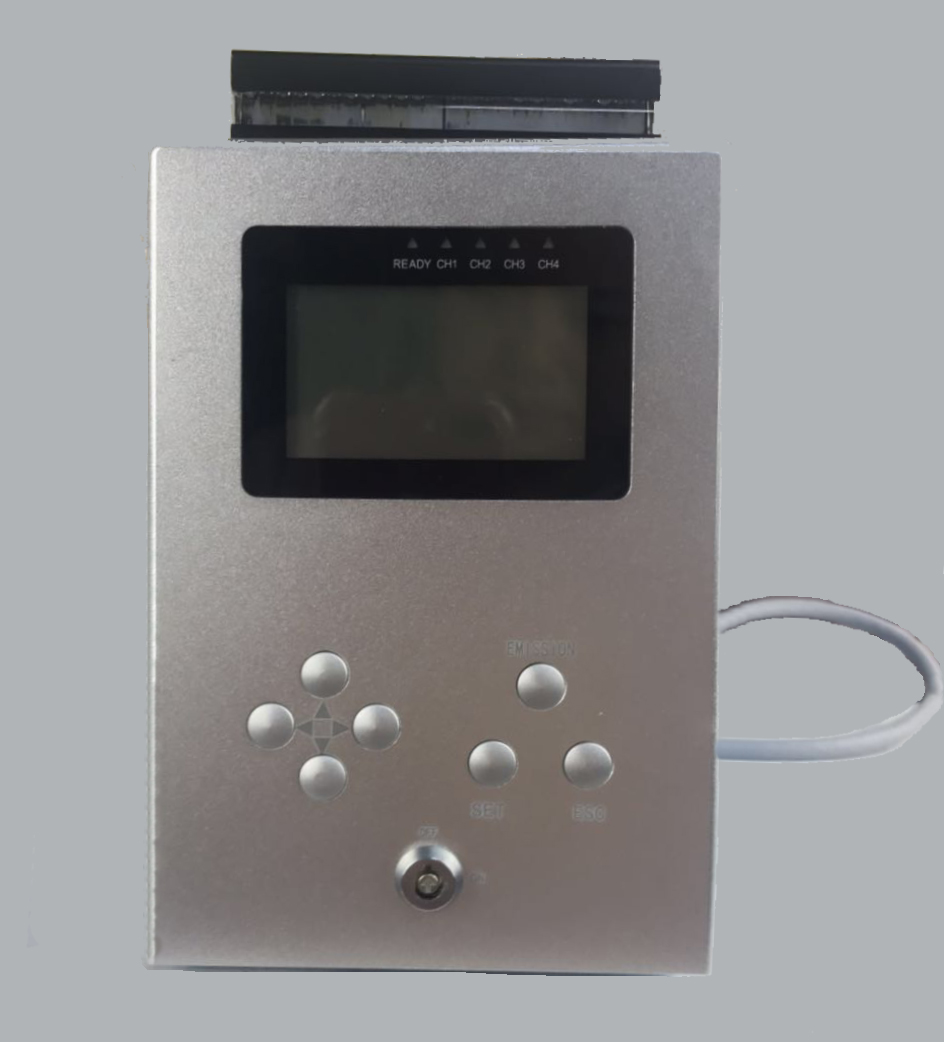

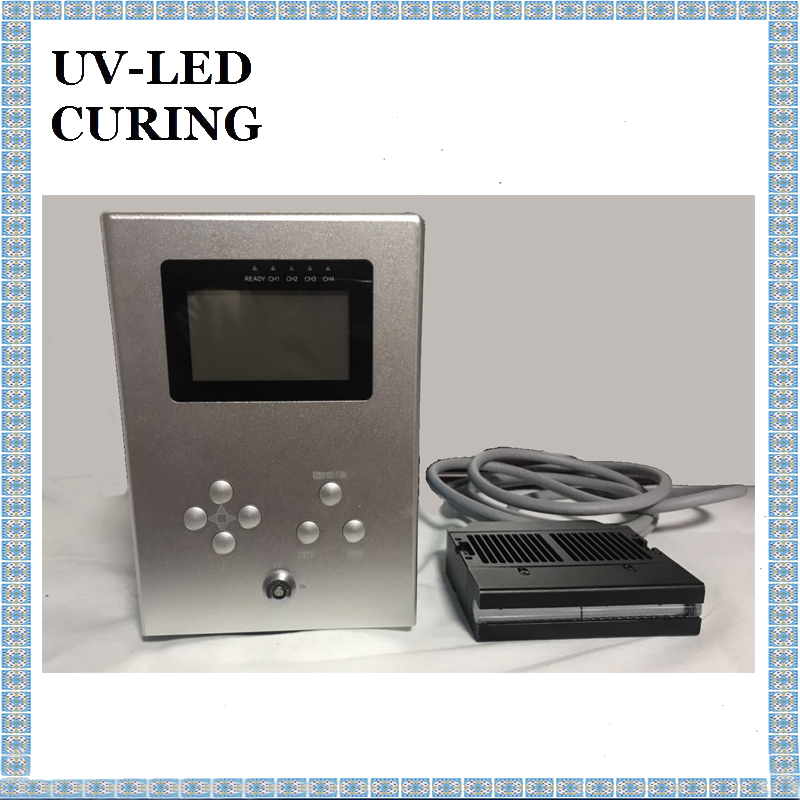

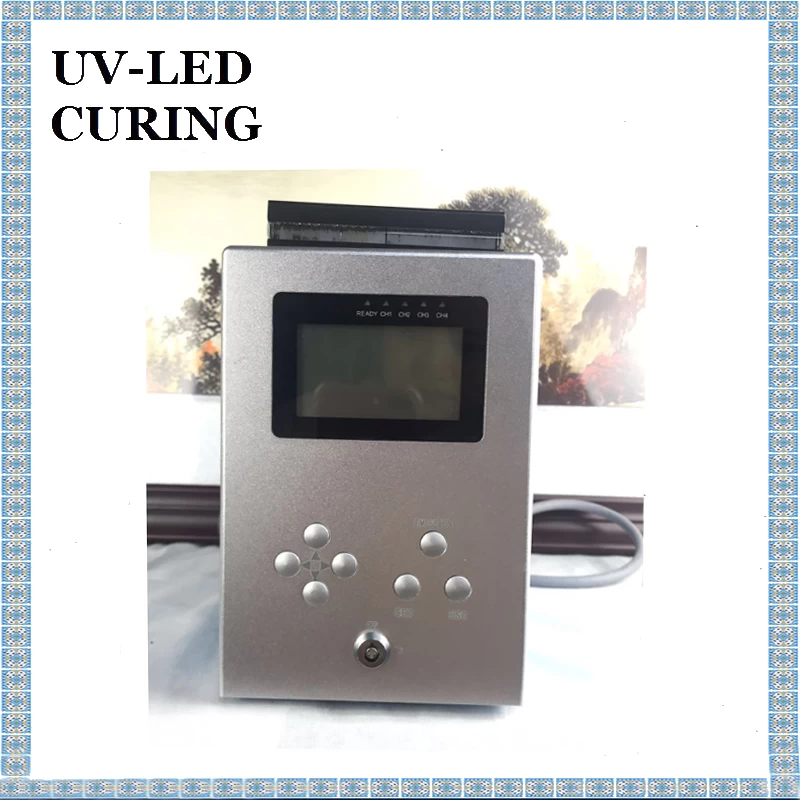

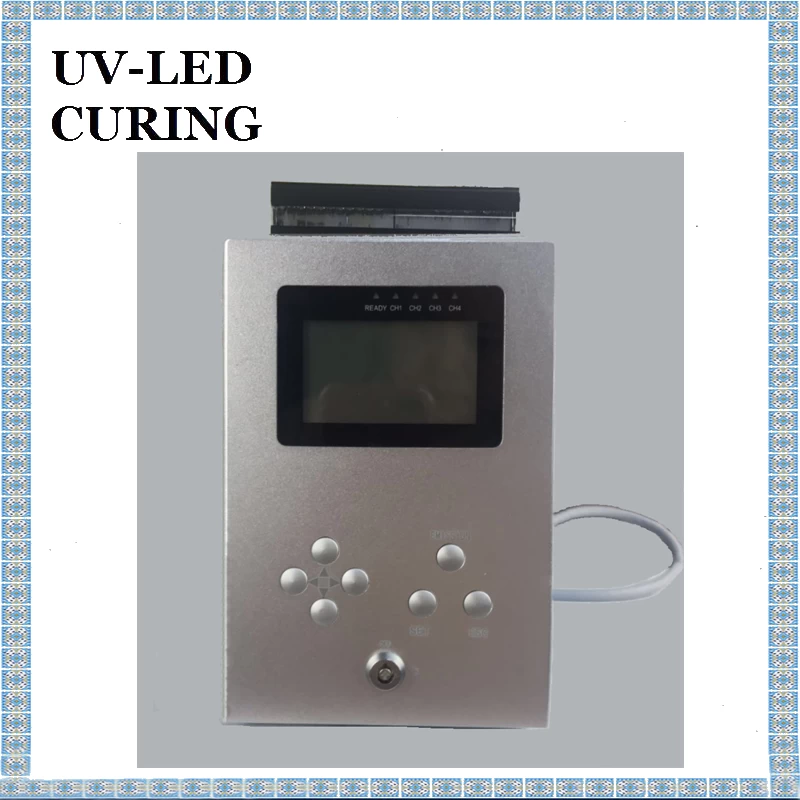

2. UV LED Curing Machine

Brand

DSX-LINETYPE150

Cooling Method

Air Cooling

Wavelengthnm

365

Power Input

AC220V50Hz

Irradiation Areamm

100(∮10 Cylindrical

PowerW

90

Irradiation Distancemm

5-10

Light PowerW

45

Irradiation IntensitymW/cm2

Adjustable 4-8

Control Method

Level Control3-24V

Temperature(℃)

0-50

LifeH

20000


Features of Line Type UV-LED Curing Light Source for Printing :

Long service life: more than 20,000 hours;

· Energy saving effect is remarkable, up to 90% ;

· No infrared heat radiation: it will not cause thermal stress and thermal deformation of the workpiece;

· Energy concentration: More than 98% of the light output is in the ultraviolet range;

·The output power is stable and continuously adjustable;

· Instant light: no warm-up time is required, and the response time is microsecond;

· Environmental protection: RoHS compliant and mercury free.


What is Linear UV Curing Machine


LED UV Curing Original Factory Direct Sale


The application of Uniform Line UV Curable Ink Equipment without Ozone in civilian use is also gradually developing:

In the field of daily necessities, it is mainly used in the manufacture of household goods, furniture production, toy production, etc.; the field of glass technology, the assembly of glass crafts; the assembly, inlaying, positioning and printing of jewelry and other decorations.

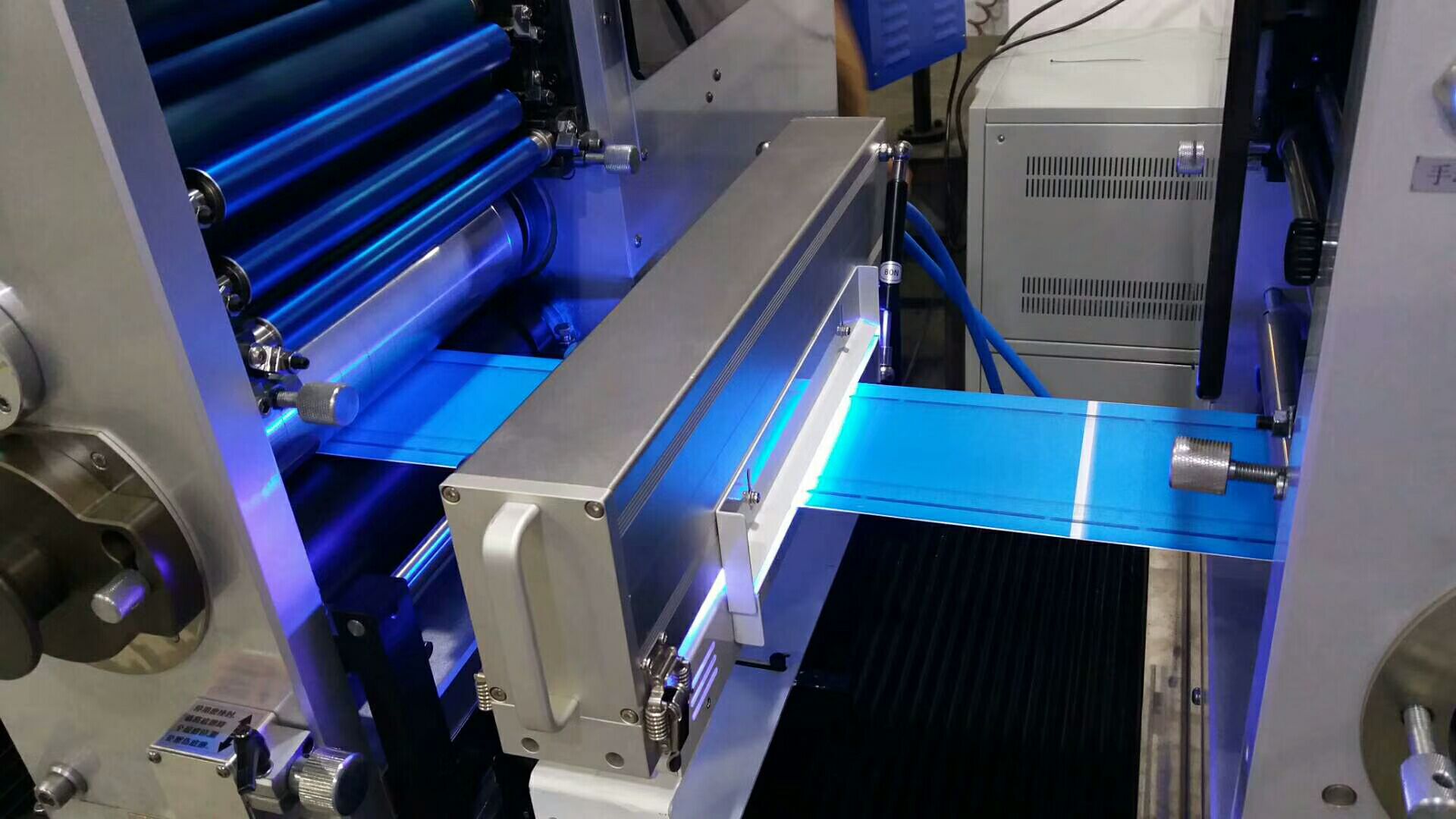

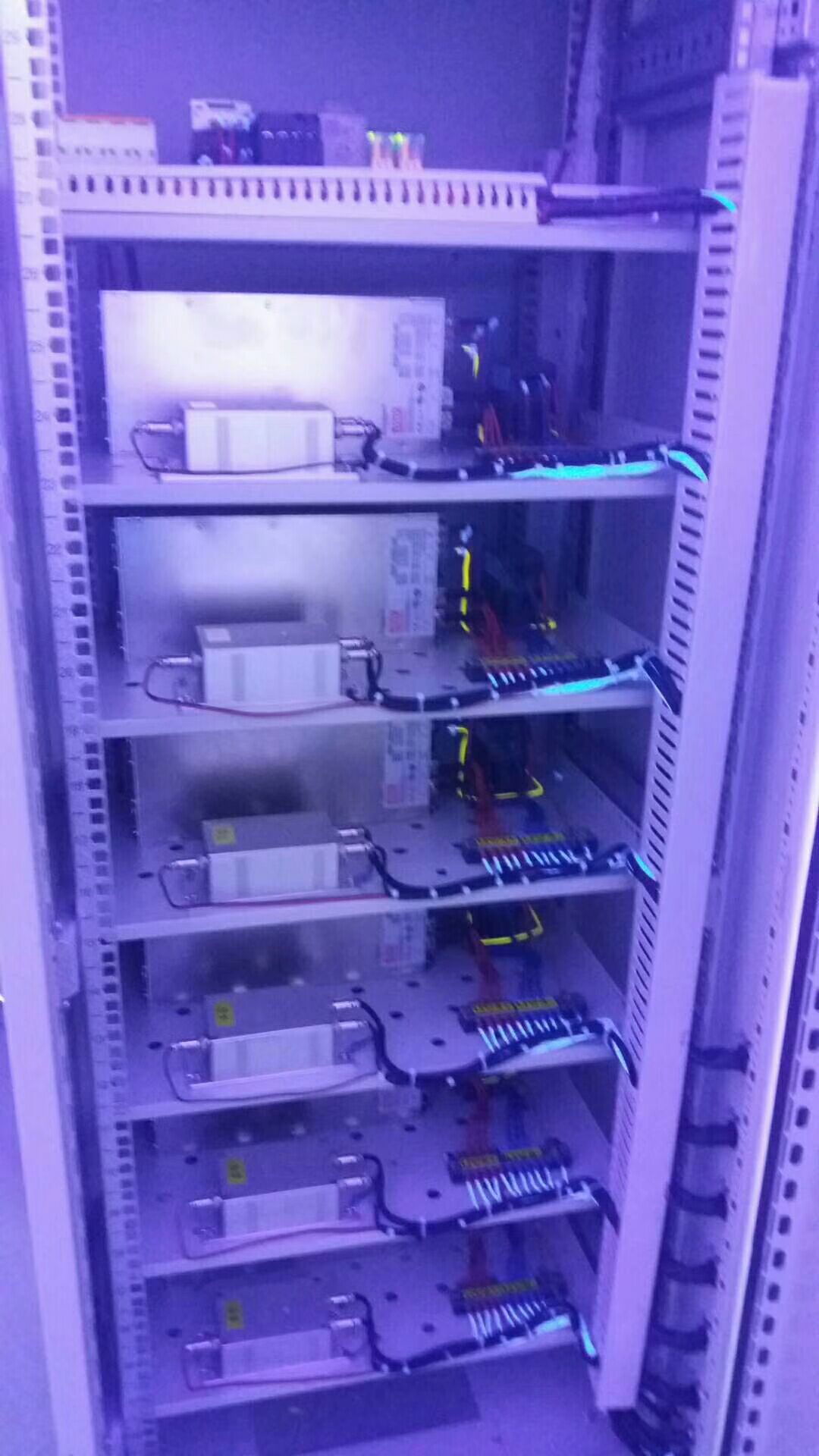

LED UV Curing Machine add in Large Scale Equipment


At present, there are mainly the following types of Customized UV Varnish Curing Machine for Furniture :

1. It is suitable for the irradiation of slender workpieces. It has high energy and high curing efficiency. On the other hand, it has sensitive working distance and strict requirements on the irradiation distance. Generally, it only has a working distance of several millimeters to ten millimeters.

2. The line source is evenly illuminated and is not sensitive to the working distance. Generally, the width of the light is about ten millimeters, but the energy is slightly weak.

3. This kind of line light source has a large irradiation range and the working distance is not sensitive, but the irradiation intensity is the weakest compared with the former two.

4. This kind of curve line source is made up of multiple line sources, which can form a special shape to meet the needs of special stations.


Uniform Emitting UV LED Curing Machine Fast Curing Glue UV Coating


About more different type of UV Light Source, please click : Large Area UV Light Source, UV LED Linear Curing, UV Spot Light Source.

If the machine need to be customized, please contact us : 1651063690jennifer@gmail.com   Jennifer
