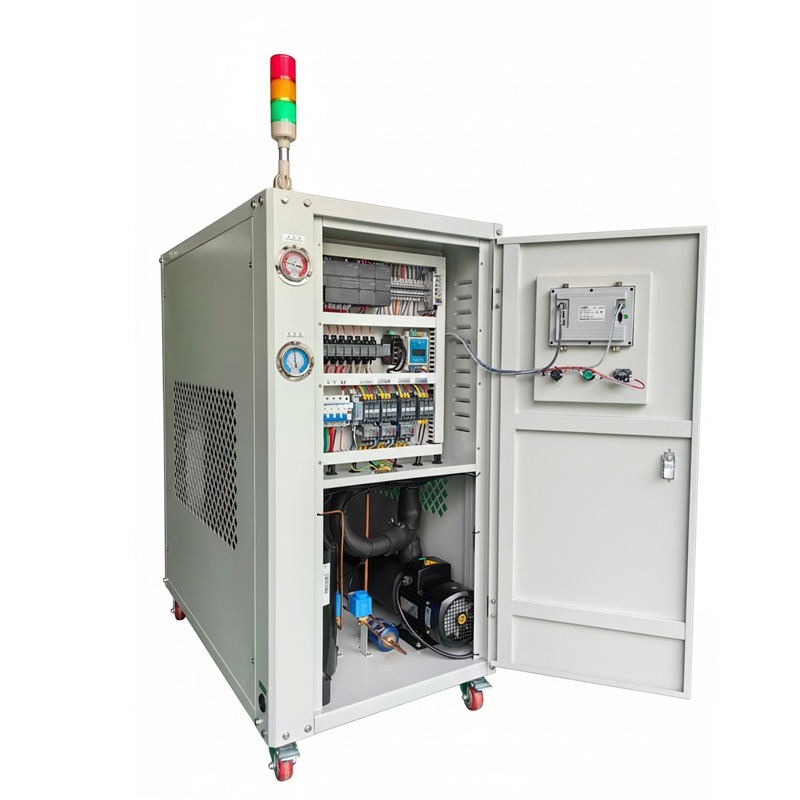

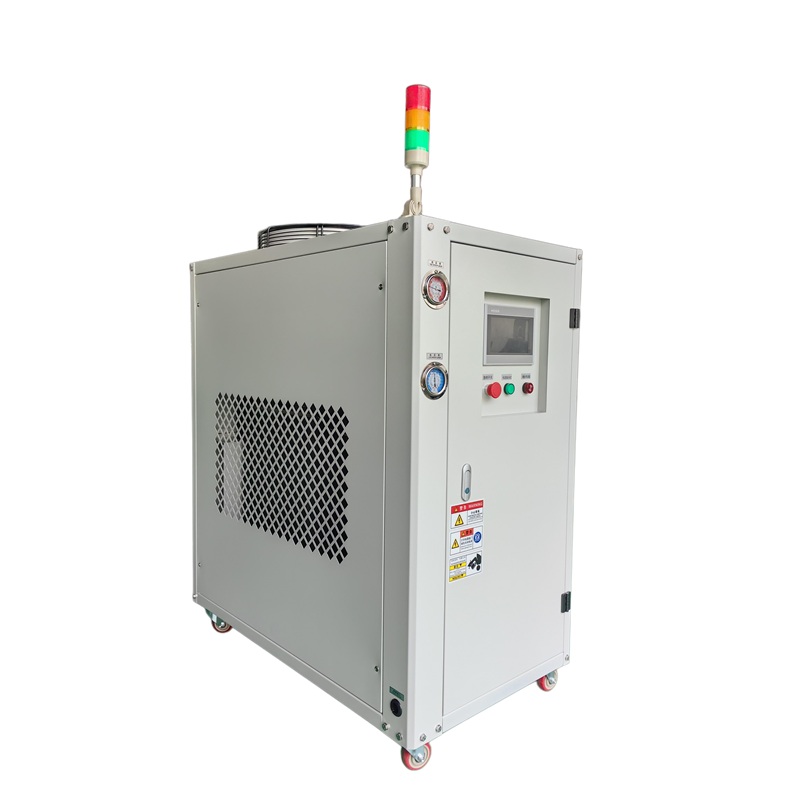

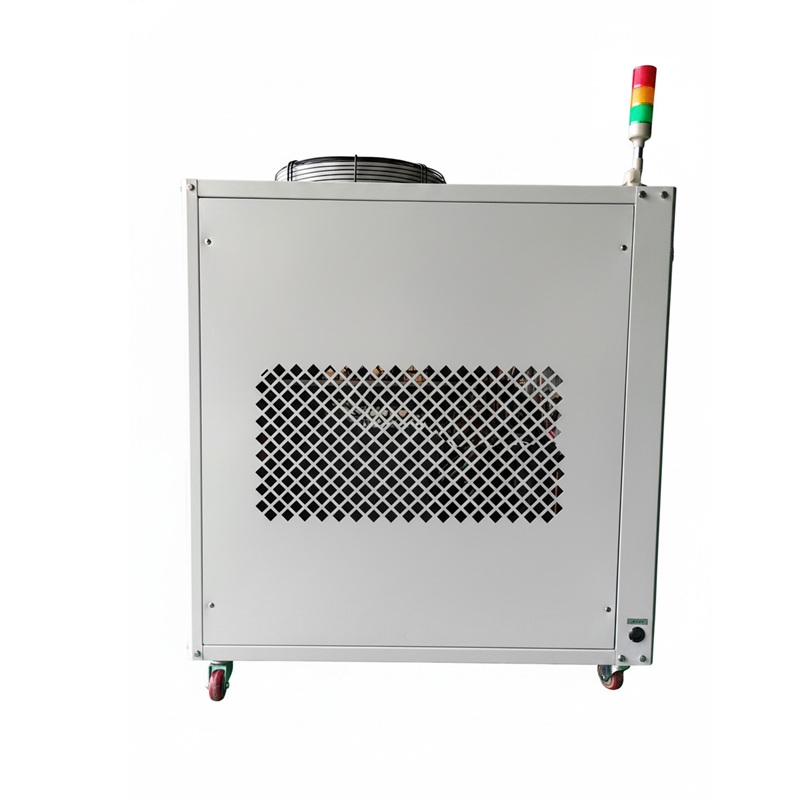

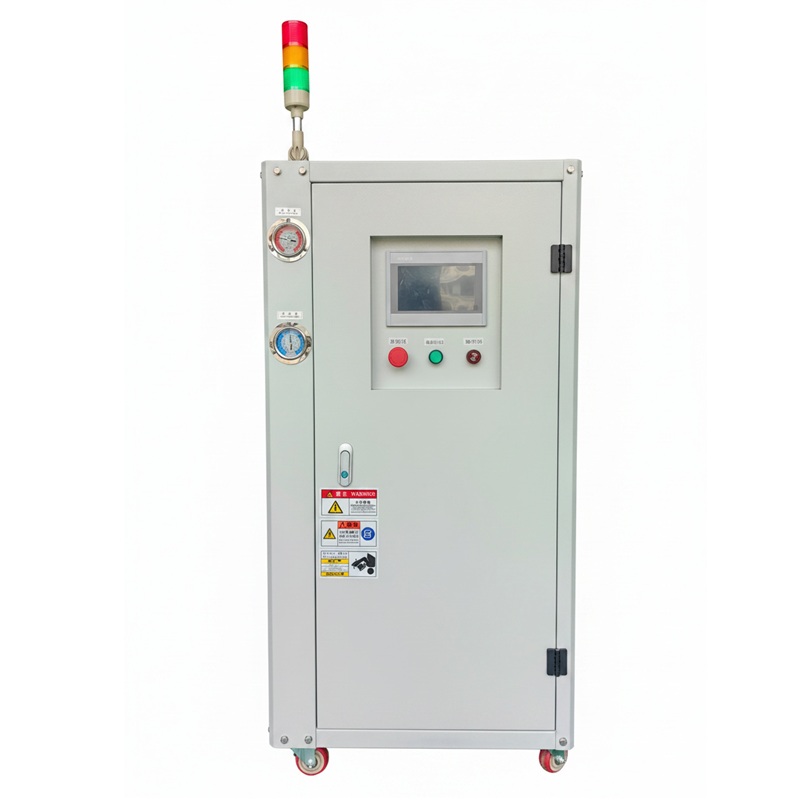

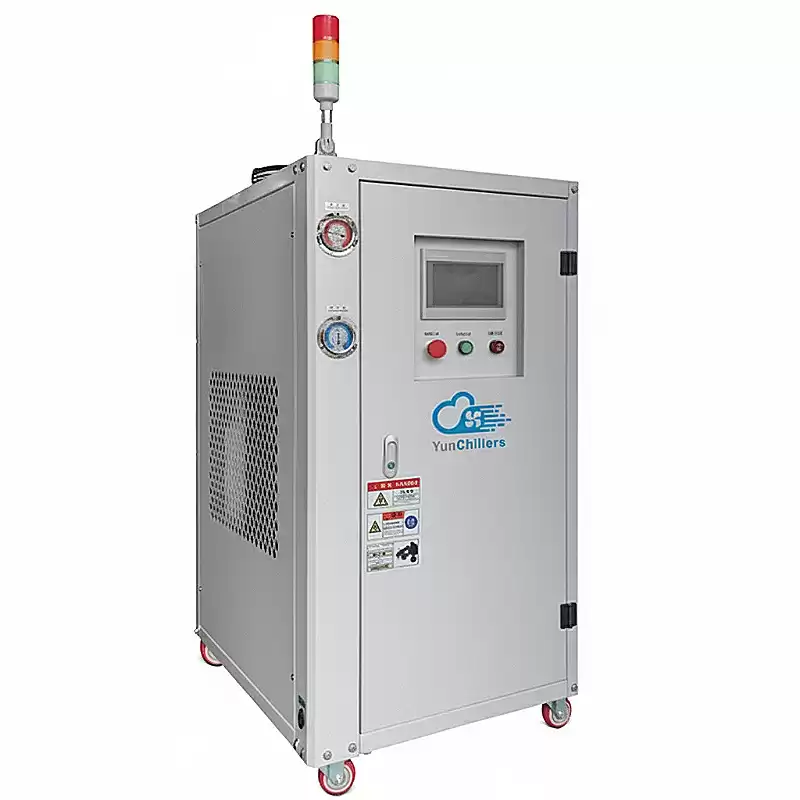

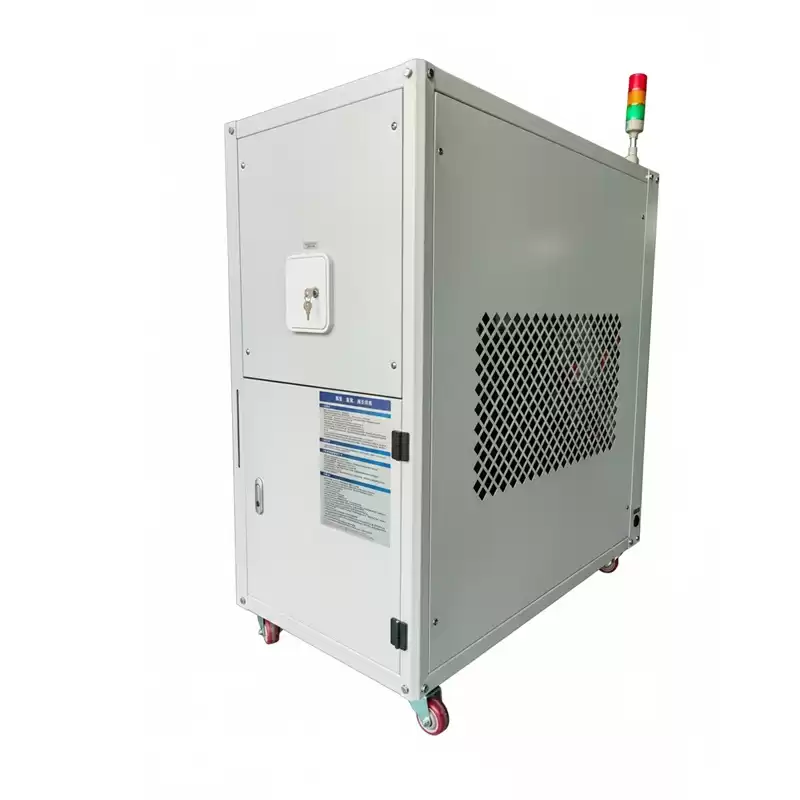

Ultra-High Precision Liquid Cooling Unit
· High preision control:temperature control acuracy can reach±01℃,flow control accuracy±0.1L/min,pressure control accuracy:±5Kpa.
· Wide temperature range:It can usually operate between-45℃and+150℃
· Quick response:The system can quickly reach the set temperature.
· Strong stability:Long tem operation wit minimal temperature fluctuations.
· User friendly interface:equipped with touch screen orcomputer control system,easy to operate,powerful data recording and analysis functions.
· Multifunctional:It has multiple control functions such as temperature,pressure,and flow rate.
· Slope controlt:The cooling rate can be accurately controlle within all temperature ranges from2℃ to5℃/min.
· System integation capability:Supports parallel testing of multiple tested devices and
· Communication interace:Supports Modbus TCP/P,CAN bus,etc
Specifications
| Model |
HX-0.5YL |
HX-1YL |
HX-2YL |
HX-5YL |
HX-8YL |
HX-10YL |
HX-12YL |
| Output power capability |
W |
500 |
1050 |
5100 |
10800.0 |
18900.0 |
25600.0 |
31000.0 |
| Maximum operating power |
kW |
3.1 |
3.9 |
12 |
14.70 |
16.50 |
23.00 |
27.00 |
| Maximum operating current |
A |
15.5 |
23.5 |
18.9 |
20.40 |
34.10 |
36.40 |
41.60 |
| Maximum operating temperature |
℃ |
150 |
| Minimum operating temperature |
℃ |
-40 |
| Temperature stability accuracy |
℃ |
±0.1 |
| Maximum liquid supply pressure |
Mpa |
0.4 |
| Supply pressure stability accuracy |
Mpa |
0.01 |
| Minimum circulation volume |
L/MIN |
0.9 |
1.8 |
| Maximum circulation volume |
L/MIN |
18 |
38.0 |
| Flow stability control accuracy |
L/MIN |
0.1 |
| Power supply |
1PH-220V+N+PE-50Hz |
3PH-380V+N+PE-50Hz |
| Cold end power |
Type |
|
Single machine single level |
| Quantity |
|
1 |
| Start up mode |
|
Direct start |
| Power |
KW |
0.6 |
1.1 |
1.5 |
3.7 |
5.0 |
7.5 |
11.0 |
| Liquid-driven source |
Type |
|
High temperature centrifugal pump |
| Start up mode |
|
Direct start |
| Power |
KW |
0.37 |
0.55 |
1.1 |
2.2 |
2.4 |
3.0 |
| Refrigerant |
Name |
|
R-404a or R407c |
| Control mode |
|
Multi-level linkage |
| Filling amount |
KG |
0.5 |
0.8 |
1.8 |
3.0 |
6.0 |
7.2 |
9.0 |
| Heat source |
Type |
|
Electric heating |
| Control mode |
|
Intermittent intervention |
| Material |
|
Stainless steel |
| Storage capacity |
KG |
2 |
9 |
12 |
9*2 |
| Interface form |
|
Threaded connection |
| Cold source |
Type |
|
Stainless steel heat exchange tube |
| Control mode |
|
Constant temperature joint adjustment |
| Drive source |
|
R404a or R407c |
| Interface form |
|
Chuck |
| External heat dissipation |
Type |
|
High efficiency internally threaded copper tube fin type |
| Control mode |
|
Pressure control |
| Process form |
|
Mechanical Joint Control |
| Heat capacity |
KW |
1.5 |
1.9 |
7.2 |
13.6 |
22.3 |
31.9 |
38.7 |
| Exhaust fan |
Type |
|
Low noise axial flow fan (low-noise external rotor fan) |
| Quantity |
|
1 |
2 |
| Diameter |
MM |
250 |
400 |
450 |
400 |
450 |
550 |
600 |
| Air volume |
M³/H |
800 |
1650 |
3300 |
5500 |
7000 |
10000 |
16000 |
| Power |
KW |
0.18 |
0.32 |
0.37 |
0.64 |
0.74 |
1.1 |
1.5 |
| Channel data |
Quantity |
|
1 |
1~2 |
1~3 |
| Interface form |
|
Chuck |
| Interface size |
DN |
15 |
| Tank data |
Type |
|
Open type volumetric type |
| Volume |
L |
90 |
100 |
130 |
150 |
200 |
260 |
| Drain size |
DN |
20 |
| Makeup size |
DN |
15(Makeup cup DN50) |
| Overflow size |
DN |
20 |
| Main protection devices |
Chiller high pressure protection, chiller low pressure protection, chiller overcurrent protection, low temperature protection, overtemperature protection, flow protection, phase sequence/phase loss protection, chiller overheating protection, circulation circuit overpressure protection, liquid supply tank liquid shortage warning, liquid drive pump overcurrent protection. |
| Overall dimensions |
Length L |
mm |
930 |
1150 |
1200 |
1350 |
1550 |
| Width W |
mm |
520 |
750 |
750 |
800 |
850 |
| Height H |
mm |
1120 |
1650 |
1750 |
1750 |
1800 |
| Unit weight |
kg |
150 |
170 |
230 |
320 |
380 |
480 |
570 |
Advantages
Ultra-High Precision
|
Wide Temp Range
|
Ramp Rate Control
|
Long-Term Stability
|
Smart Data Logging
|
Advanced Integration
|
Application Areas
Electronics & Semiconductor Testing
Power Electronics Validation
Providing ultra-precise thermal management for the performance testing of power electronic components, IGBT modules, and semiconductor chips under extreme high and low-temperature cycles.
Automotive & EV Battery Validation
EV Powertrain Testing
Engineered for rigorous thermal stress and performance testing of electric vehicle (EV) batteries, internal combustion engines (ICE), and advanced powertrain components in automotive R&D labs.

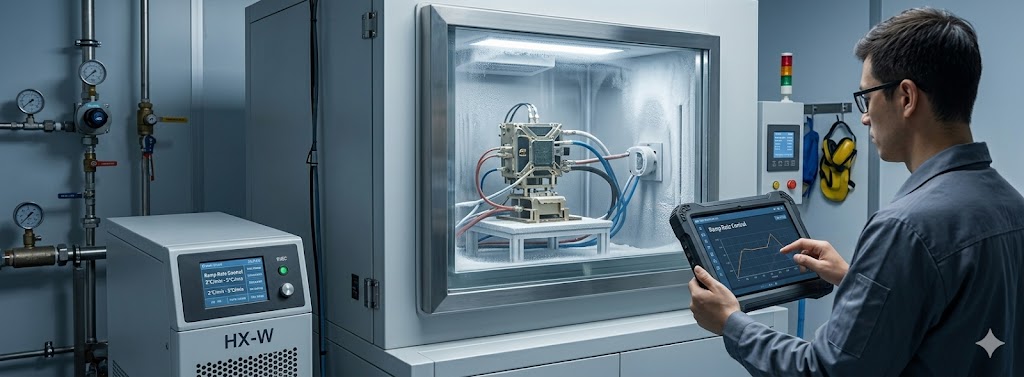

Aerospace & Environmental Simulation
Aerospace Simulation
Delivering rapid ramp rates and expansive temperature ranges for the comprehensive evaluation of aerospace materials, radar systems, and instrumentation performance under extreme environmental conditions.

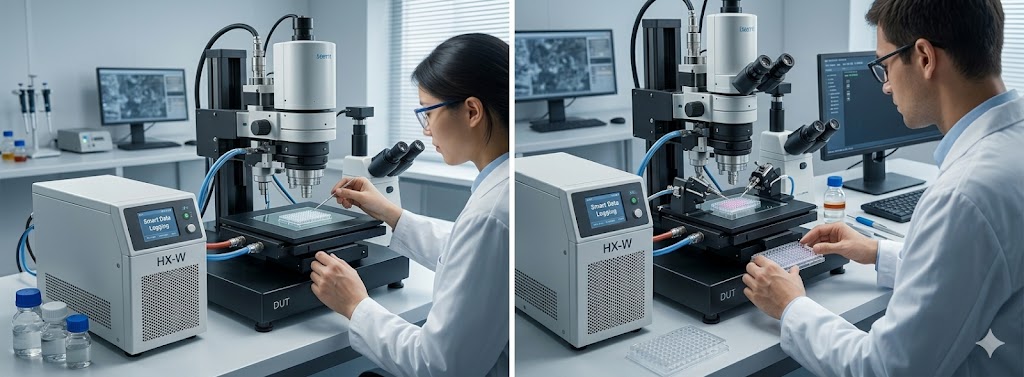

Scientific Research & Laboratories
Precision Laboratory Cooling
Serving top-tier research facilities by providing uncompromising ±0.1°C temperature control for critical experiments in materials science, chemistry, biotechnology, and pharmaceutical stability testing.
