Lithium Cell Sorting Machine 6 Channel Automatic 18650 Cells Sorter with Common Used Sorting Die

Wechat:18659217588

Whatsapp:+86 13174506016

Email:David@batterymaking.com



  • Certificate CE ROHS Certificate

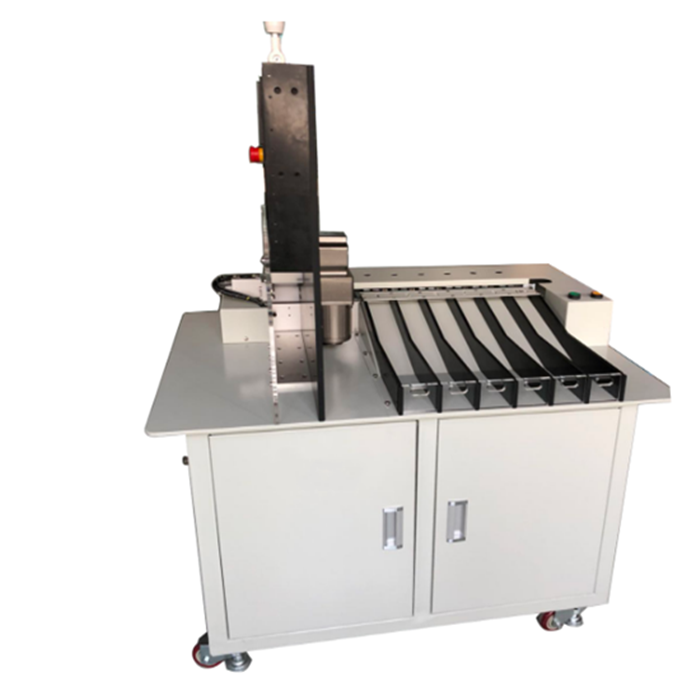

6 Channel Automatic 18650 Cylindrical Battery Sorter with Common Used Sorting Die


Description

1)18650/26650/32650/21700 li-ion batteries test & sorting machine.

2)Used for factories automatic production in power banks, laptops and ebikes.

3) Test about 5000pcs batteries per hour.

     0-1 worker to operate the machine, fast and with great efficiency.

     Can be connected to other machines to work automatically.

4) Touch screen operation, easy and fast responding.

5) Customers can set the voltage and internal resistance by themselves.



Advantages

1. Stable control system

2. High configuration regulator

3. High Precision Work Procedure

4. High cost performance ratio of products



Technological Process

The battery resistance and voltage are set by the battery testing software of the upper computer, and the following functions are automatically completed by PLC:

Manual filling of batteries→wave wheel rotating feeding→belt carrying batteries→ejector cylinder jacking batteries→ test cylinder closure (test instrument uploading data, software sorting)→mechanical gripper sorting batteries.

The equipment is equipped with acoustooptic alarm, which can be sorted to complete automatic shutdown. Full material alarm, fault alarm, etc. Operating parameters can be set according to the actual requirements of customers.



Structure of Sorter

1) The equipment has compact and reasonable structure, beautiful appearance and small space occupation.

2) The equipment is simple to operate, and no professional training is required. The workers can easily master it.

3) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.

4) The equipment is equipped with universal movable casters, which can move easily when shifting.



Specification

Voltage Supply

220V±10%/50Hz±10%

Power

800W

Display Screen

Large size LCD screen/Touch screen

Battery Types

Cylindrical Cell

(18650,32650,18500,26650,14500,21700 etc.)

Receiving Channel

6 channels

Test Parameter

AC internal resistance, DC voltage

Internal Resistance Test

Test range: 0-80mΩ

Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm

Voltage Test

Test range: 0-8V

Accuracy:±0.1% rdg

Resolution: 0.01mV

Sorting Speed

80PPM

Weight

<200KG

Dimension

860mm(L)*1350mm(W)*1200mm(H)

Tester

HK3561

Productivity

5000pcs/h

Air Supply

0.5-1.0Mpa
