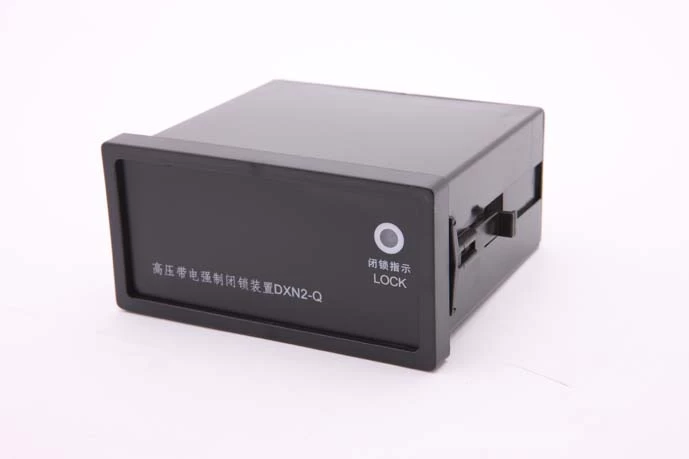

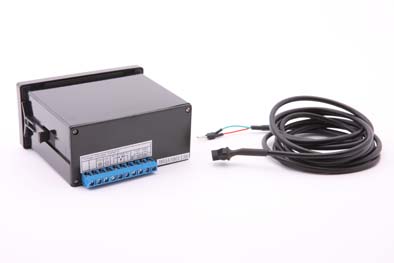

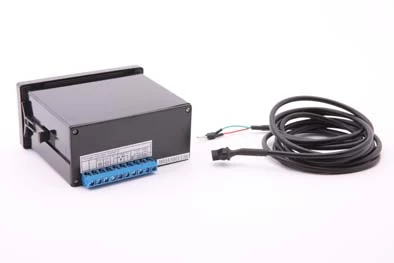

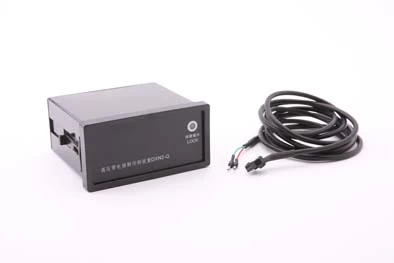

MV Live Line Indicators DXN2-Q

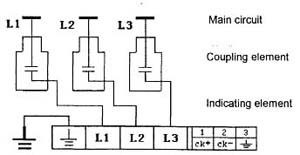

DXN2-Q MV Live Line Indicators indicate the voltage presence on M.V. cubicles （switchgear） by being installed on the capacitive dividers.
Features of MV Live Line Indicators DXN2-Q
*Must work with the live voltage
indicator ( DXN2-T) to realize the functions of interlocking indication and
interlocking signals output to the electromagnetic lock for auto lockout;
*Wide-range 3kV- 40.5kV
*Working frequency 50/60Hz
*Temperature range -25°C to +40°C
*Insulation strength: AC 2kV, 1min
*Product dimensions (L×W×D) 96x49x95mm
Technical
Parameter of MV Live Line Indicators DXN2-Q
|
Executive
Standard
|
DL/T538-2006
|
|
Working
Frequency
|
50Hz/60Hz
|
|
Interlocking Relay
Output Contact Capacity
|
10A/250V AC
10A/30V DC
|
|
Auxiliary
Power Supply
|
DC24V、DC48V
AC/DC 110/220V
|
|
Working
Temperature
|
-25℃-+40℃
|
|
Working
Humidity
|
＜95%
|
|
Insulation
Strength
|
2kV,1min
|
|
Overall
Dimension (WxHxD)
|
96x49x95 mm
|
|
Mounting
Dimension (WxHxD)
|
92x45x87 mm
|
|
Shielded Cable
Length
|
1.9 m
|
