Bonve
pumps are to be found in numerous processes. We select the pump according to
your characteristics of medium and condition of the technological requirements,
bring you the best pump for your critical process, satisfied by you and your

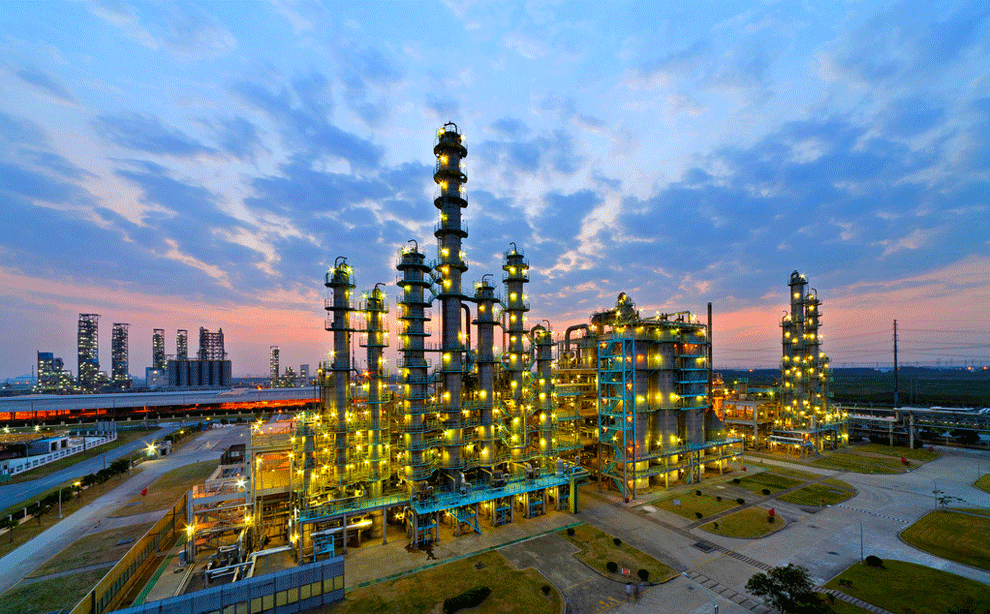

customers. Typical medium to be transferred in petrochemical industry
including lubricant, heavy oil, asphalt, catalyst, diesel.

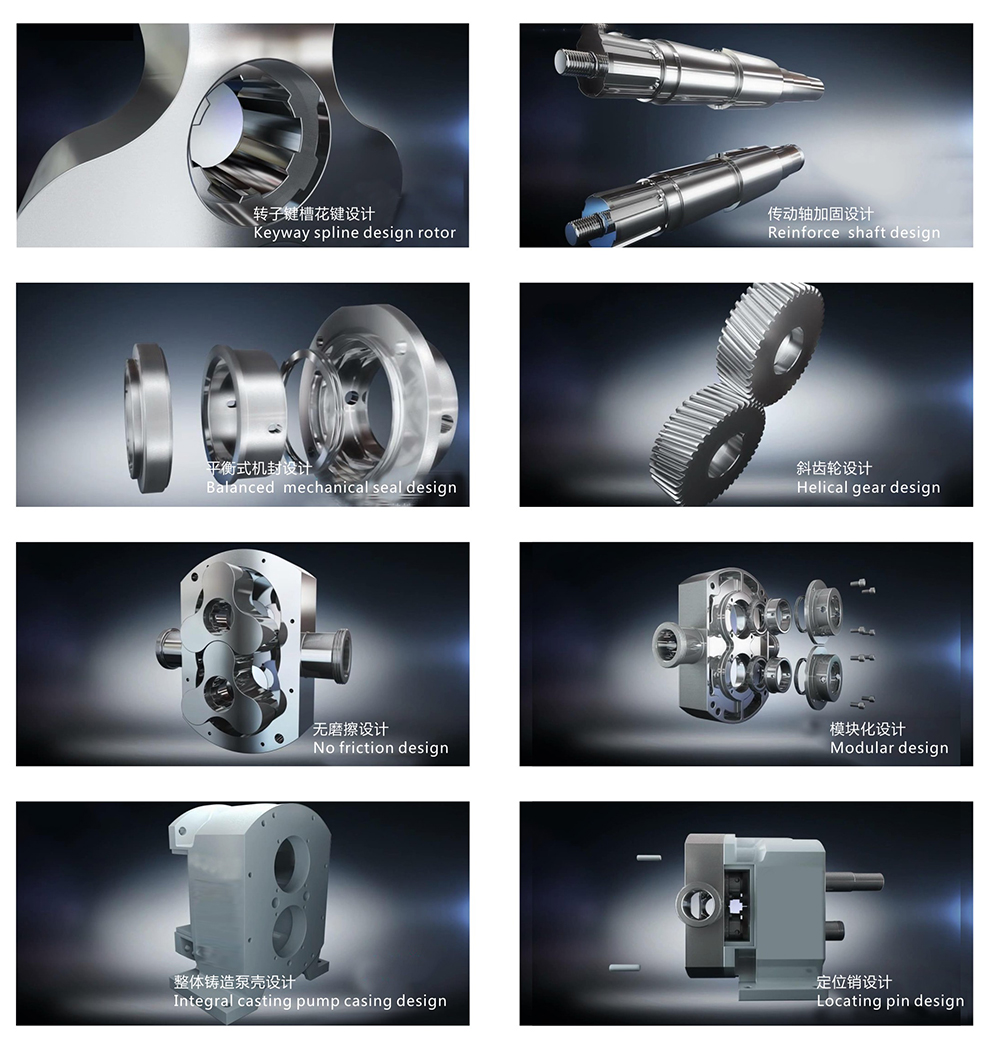

Structure
advantage

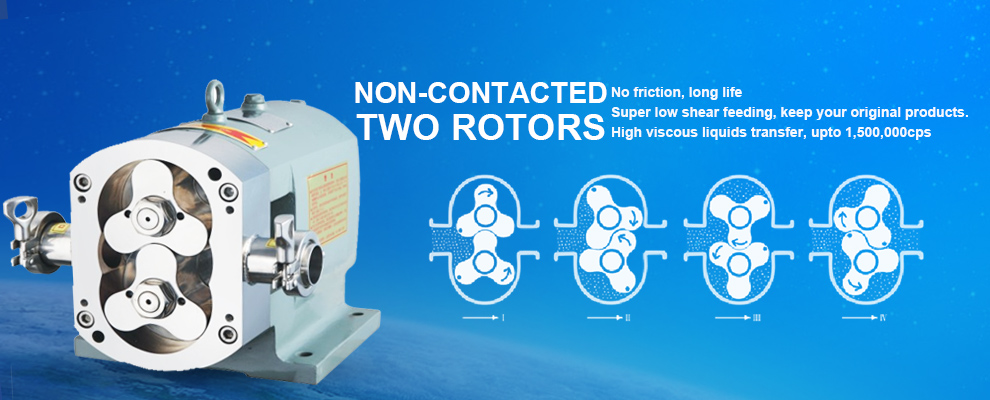

Working
diagram
Technical parameters
|
Model
|
Displace
-ment
(L/r)
|
Rotation
speed
(r/min)
|
Flow
rate
(M³/h)
|
Dis.
Pre.
(Mpa)
|
Electrical
power
(Kw)
|
Suc.
Pre.
(Mpa)
|
Dia.
of inlet
and
outlet (mm)
|
|
25BV6 /12-2
|
0.15
|
20-600
|
2
|
0.1-1.2
|
1.1-2.2
|
-0.095
|
25
|
|
40BV6 /12-5
|
0.32
|
20-550
|
5
|
0.1-1.2
|
1.5-4
|
-0.095
|
40
|
|
50BV6 /12-10
|
0.65
|
20-550
|
10
|
0.1-1.2
|
2.2-7.5
|
-0.095
|
50
|
|
65BV6 /12-20
|
1.74
|
20-550
|
20
|
0.1-1.2
|
4-15
|
-0.095
|
65
|
|
80BV6 /12-30
|
2.48
|
20-550
|
30
|
0.1-1.2
|
5.5-22
|
-0.095
|
80
|
|
80BV6 /12-40
|
3.65
|
20-550
|
40
|
0.1-1.2
|
7.5-30
|
-0.095
|
100
|
|
125BV6 /12-50
|
4.60
|
20-550
|
50
|
0.1-1.2
|
11-45
|
-0.095
|
125
|
|
125BV6 /12-70
|
6.10
|
20-550
|
70
|
0.1-1.2
|
15-55
|
-0.095
|
125
|
|
125BV6 /12-80
|
7.63
|
20-550
|
80
|
0.1-1.2
|
18.5-75
|
-0.095
|
125
|
|
150BV6 /12-120
|
11.56
|
20-420
|
120
|
0.1-1.2
|
22-90
|
-0.095
|
150
|
|
150BV6 /12-150
|
14.22
|
20-420
|
150
|
0.1-1.2
|
37-110
|
-0.095
|
150
|
|
200BV6 /12-200
|
18.10
|
20-420
|
200
|
0.1-1.2
|
45-132
|
-0.095
|
200
|
|
250BV6 /12-250
|
22.92
|
20-420
|
250
|
0.1-1.2
|
55-160
|
-0.095
|
250
|
|
300BV6 /12-300
|
32.00
|
20-420
|
300
|
0.1-1.2
|
75-200
|
-0.095
|
300
|
Advantages of our pumps
-
Displacement: positive displacement, Displacement is proportional to the speed. Discharge pressure: upto 1.2 Mpa.
-
Suction capacity: Movable pumps can be used to pump canned medium, with intake vacuum of 0.08 Mpa.
-
Work efficiency: upto 90%
-
Special mediums to handle: high viscosity upto 1.5 million cps, high solid mediums upto 60%, sensitive mediums.
-
Reversible running allowed: Forward suction, reversal flushing can be realized with pump's symmetric structure, reversible transportation direction.
-
Dry running: with Bonve's special design on mechanical seal, dry running can be realized.
-
Maintenance: Compact structure, little space occupation, no need to move pipe systems when maintain.
-
Wear-resisting: all the contact parts are made of stainless steel. Nearly no wearing parts.
-
Low shearing: Low working speed, gap is kept between the rotors and between the rotor and the pump body, no friction, long life.
-
Replacement: take replace of screw pumps, gear pumps, centrifugal pump, diaphragm pump etc.
-
Low cost: high working efficiency, low consumption, environmental friendly, low maintenance, long life.
How to choose our
pump?
|
Selection Guideline
|
|
Liquid
name:___________
|
|
Viscosity:_______cp Density:_______ Temperature:_____℃ PH value:________
|
|
Solid content:_______ Max. size of particle:_______
|
|
Capacity: Max. required__________ L/H Working required__________ L/H
|
|
Discharge pressure: Max. required__________Mpa Working required__________ Mpa
|
|
Connection type required: Thread[ ] Clamp[ ]
|
|
Installation type: Fixed [ ] Movable[ ]
|
|
Voltage:____ V Frequency: _____Hz
|
|
Liquid contact material: SS304 [ ] 316 [ ] 316L [ ]
|
|
Special
request_____________________________________
|
|
Order qty.
|
