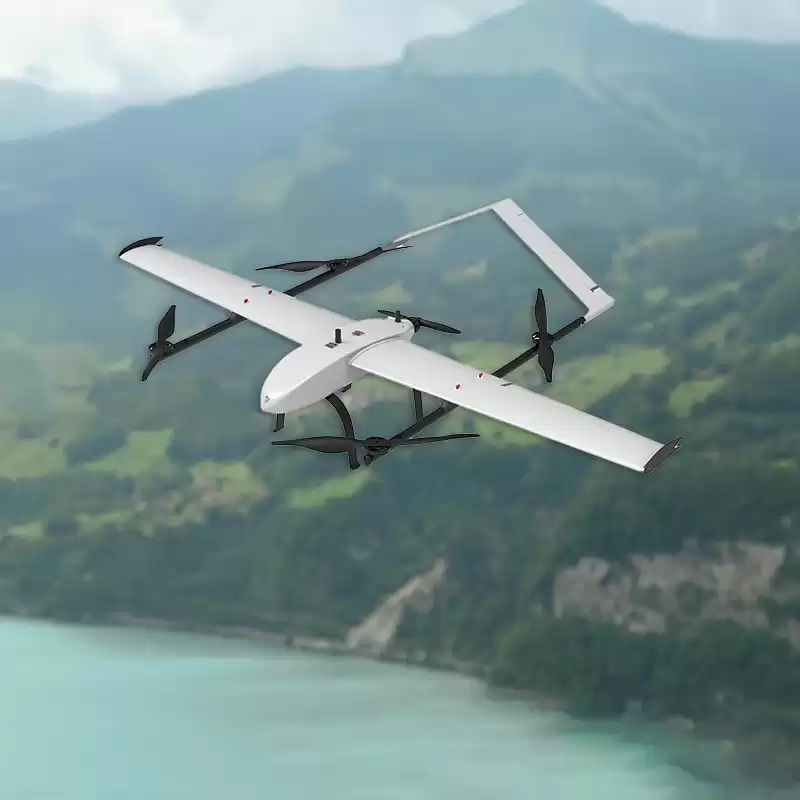

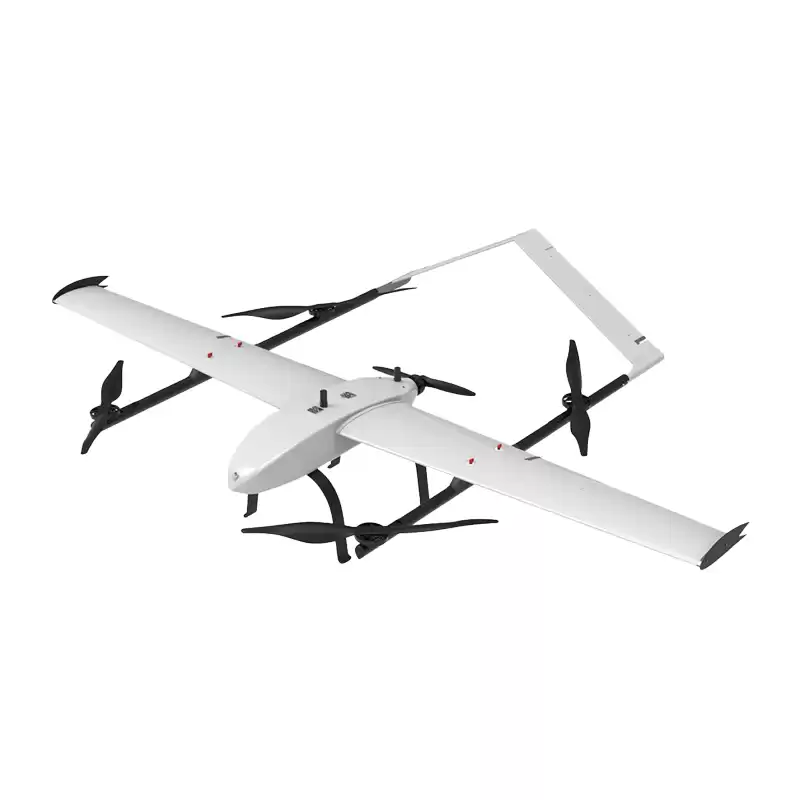

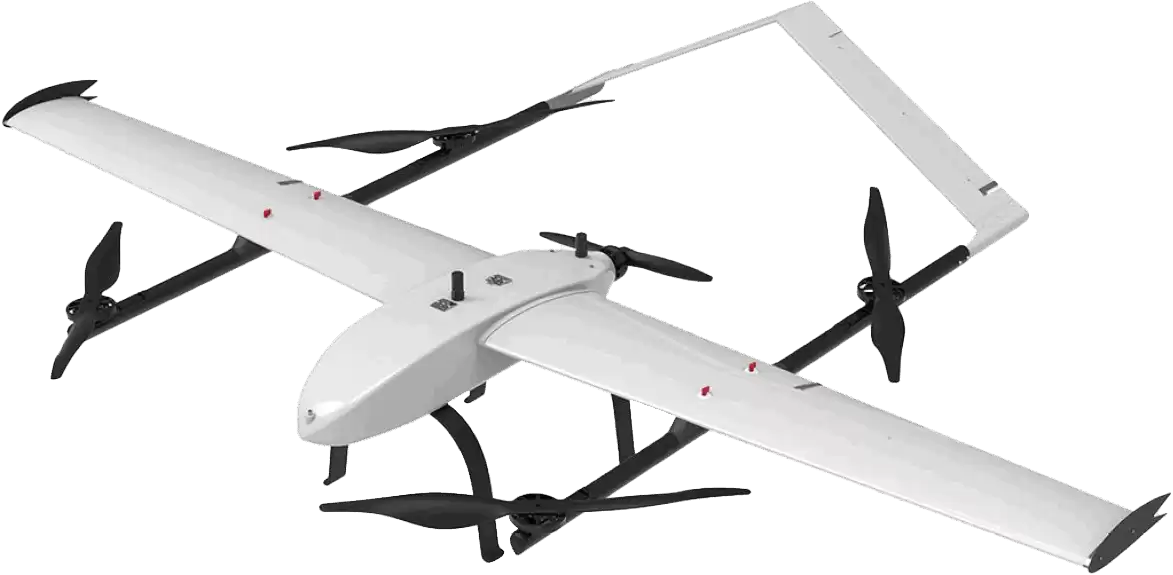

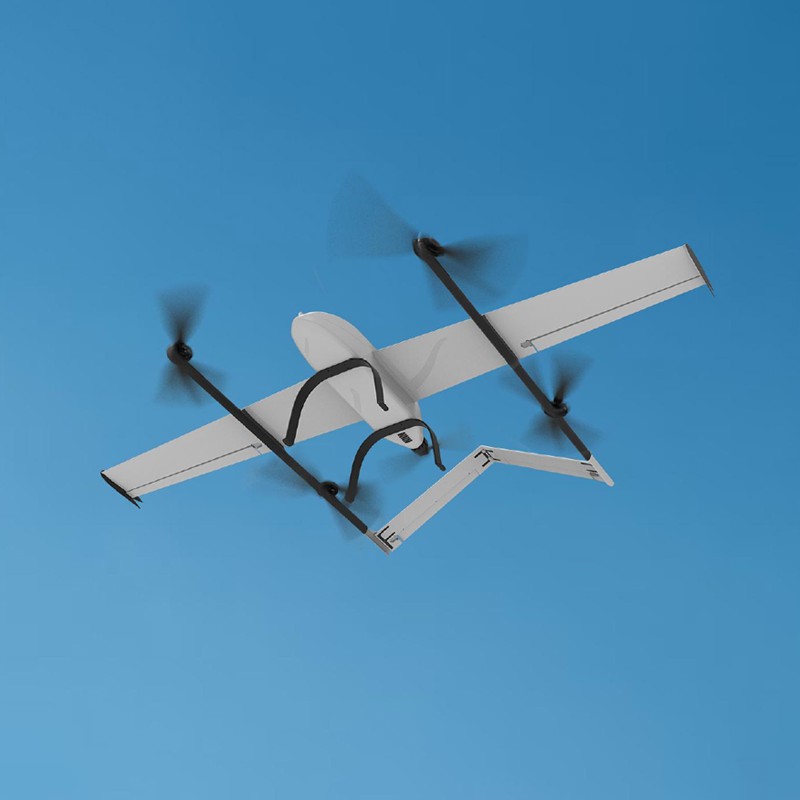

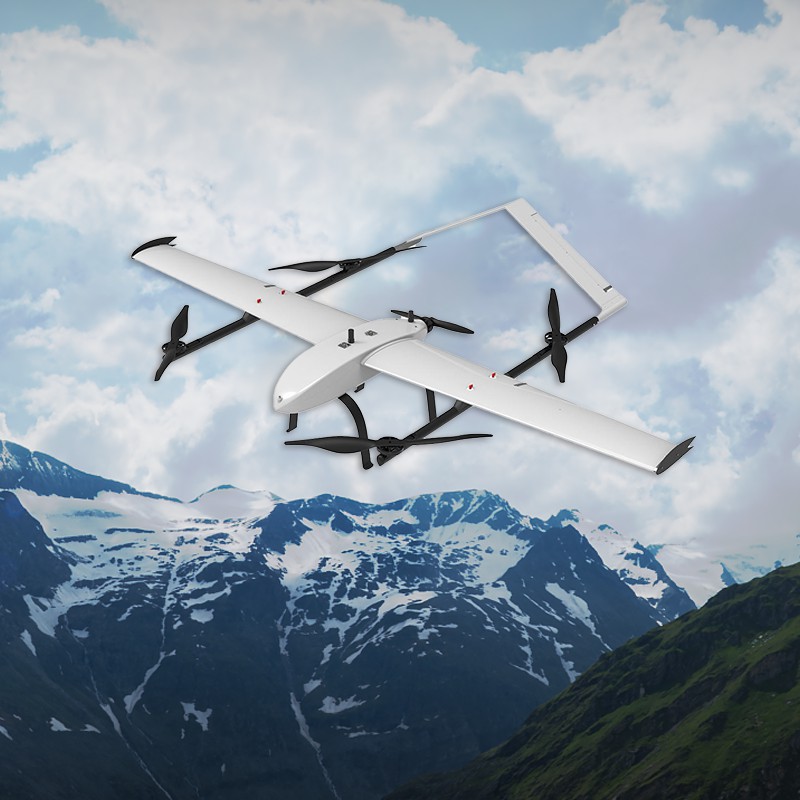

Long-Range Heavy-Lift IPX5 Waterproof Fixed-Wing UAV

        The FY-U04 vertical take-off and landing fixed-wing unmanned aerial vehicle is made of aviation carbon fiber composite materials, and featuring a robust and lightweight structure. The drone has a wide wingspan, to make it easy to deploy quickly. It can be disassembled without tools, and adapt to complex environments. It has a waterproof function to handle bad weather. It is low cost, low consumption, moderate safe level flight speed, relatively fast cruising speed, high practical ceiling, long endurance, and suitable for large-scale deployment.







Product features

Long endurance: Drones can fly continuously for a relatively long time under maximum load conditions, and make them suitable for long-term mission execution.



Strong protective performance: Equipped with an advanced waterproof system, it can operate stably in complex and changeable environments.



Rapid deployment: The design emphasizes quick disassembly and assembly, and can facilitate rapid deployment and recovery, to enhance usage efficiency.



Low cost and high efficiency: Advanced production technology, good cost control, suitable for large-scale deployment.



Technical indicators



FY-U04 Technical parameters

Length

2160mm

Height

760mm

Wingspan

3000mm

Material

Aviation carbon fiber composite materials

Load capacity

4kg

Maximum takeoff weight

20kg

Safe level flight speed

17~30m/s

Cruising speed

21m/s

Battery life

Fully loaded for 2.5h and unloaded for 3h

Practical ceiling

6000m

Working temperature

-20℃~55℃

Protection grade

IPX5

The above parameters are for reference only. The detailed product parameters are subject to the actual delivery.
