Product introduction:
1.a single box weight less than 8.2kg, high strength, not easy to deformation, strong toughness, high precision.

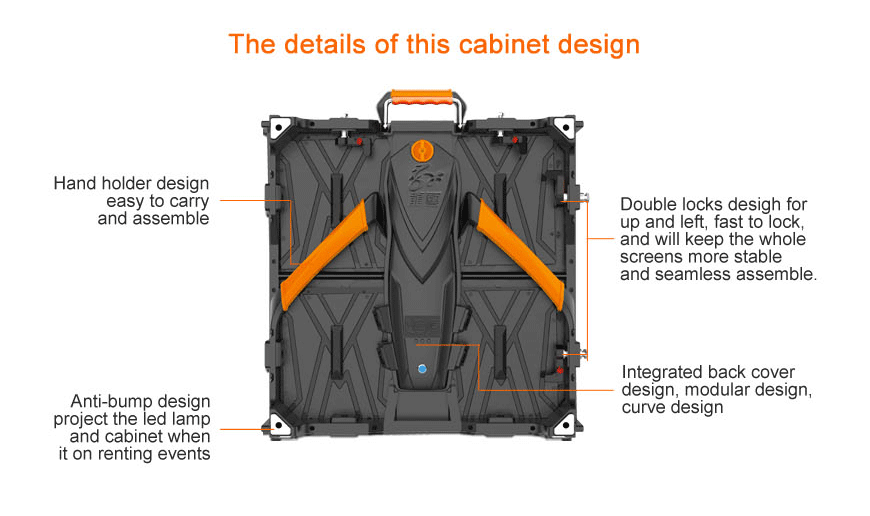

2.The connection of the box body adopts fast locking structure, which can complete the installation of a box body in 10 seconds with high installation accuracy.

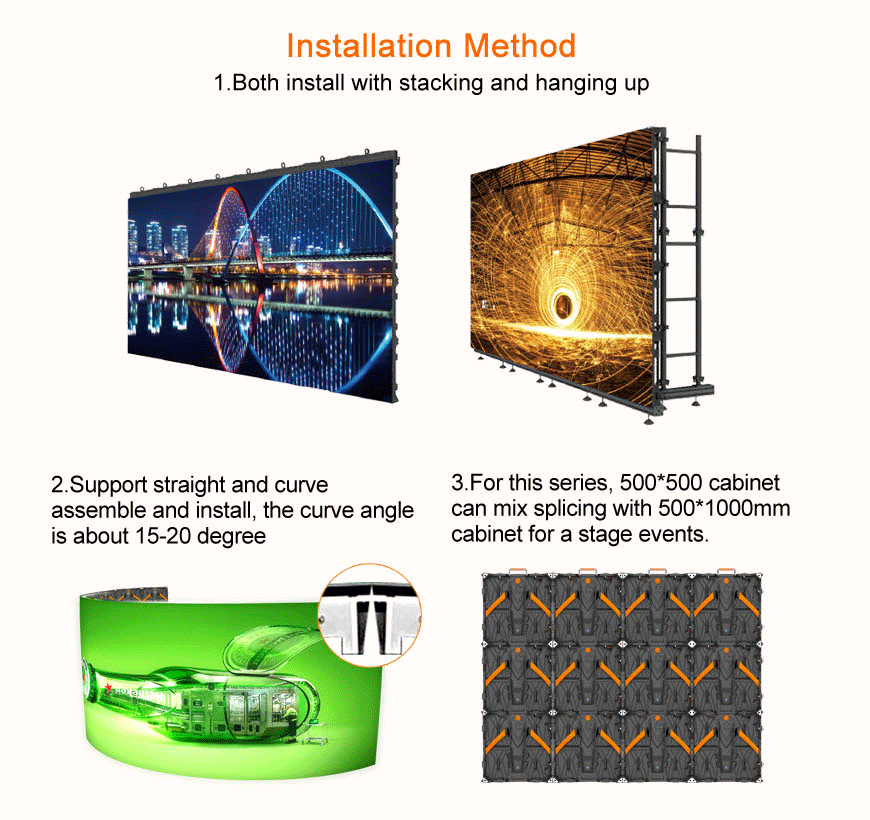

3.Can be adjusted from different angles to achieve a variety of creative modeling, arc screen, cylinder screen, oval screen, triangle screen, do lifting platform, brick screen and other display
4.Super wide viewing Angle, viewing position at will.
5.Ultra - high refresh display, frame - changing speed, no ghosting phenomenon
6.Unique mask design, dustproof and waterproof, protection level up to IP65
|
product model
|
IP2.97
|
IP3.91
|
IP4.81
|
|
Pixel spacing (mm)
|
2.97mm
|
3.91mm
|
4.81mm
|
|
Pixel composition
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
|
Pixel density (dots/m2)
|
113367/m2
|
65536/m2
|
43264/m2
|
|
PCB structure
|
Combined diver board
|
Combined diver board
|
Combined diver board
|
|
working life
|
＞100000 hours
|
＞100000 hours
|
＞100000 hours
|
|
screen luminance
|
>1700nit
|
>1700nit
|
>1700nit
|
|
Optimum stadia (m)
|
4~40
|
4~40
|
4~40
|
|
visual Angle
|
X>140，Y>140
|
X>140，Y>140
|
X>140，Y>140
|
|
gray level
|
16384
|
16384
|
16384
|
|
refresh rate
|
>3540Hz
|
>3540Hz
|
>3840Hz
|
|
Scan drive mode
|
1/21Scanning, constant current drive
|
1/16Scanning, constant current drive
|
1/13Scanning, constant current drive
|
|
level of protection
|
IP65
|
IP65
|
IP65
|
|
SMD
|
2121
|
2121
|
1921
|
|
Brightness Adjustment
|
Chip electrical flow control or PWM
|
Chip electrical flow control or PWM
|
Chip electrical flow control or PWM
|
|
control mode
|
Synchronize with the computer display screen
|
Synchronize with the computer display screen
|
Synchronize with the computer display screen
|
|
Brightness adjustment ability level
|
64
|
64
|
64
|
|
multimedia video processor
|
Support and various media formats
|
Support and various media formats
|
Support and various media formats
|
|
working voltage
|
5V
|
5V
|
5V
|
