Loose Tube Outdoor Cable GYTS/GYTA up to 144C

GYTS/GYTA cable is a type of the outdoor cable used for duct and direct buried applications with corrugated steel tape or aluminum tape. SZOPT supplies both single mode and multimode GYTS cables.PBT loose tube has 2-12 fibers, The central Strength member is: steel wire. It has a Filling Compound; Longitudinal corrugated steel tape laminated with polyethylene on both sides. Consequently.



Loose Tube Outdoor Cable GYTS/GYTA up to 144C



The loose tube material of GYTS/GYTA has good hydrolysis resistance and high strength. The tube is filled with characteristic grease, which provides key sealing protection for the optical fiber PE sheath has good anti ultraviolet radiation performance The center reinforcing core of a single steel wire is helpful for the parallel and stretching of the optical cable It has good mechanical properties and temperature characteristics, such as tensile resistance, wear resistance, impact resistance, flat pressure resistance, repeated bending, torsion, bending and winding (bending angle not exceeding 90 °) .

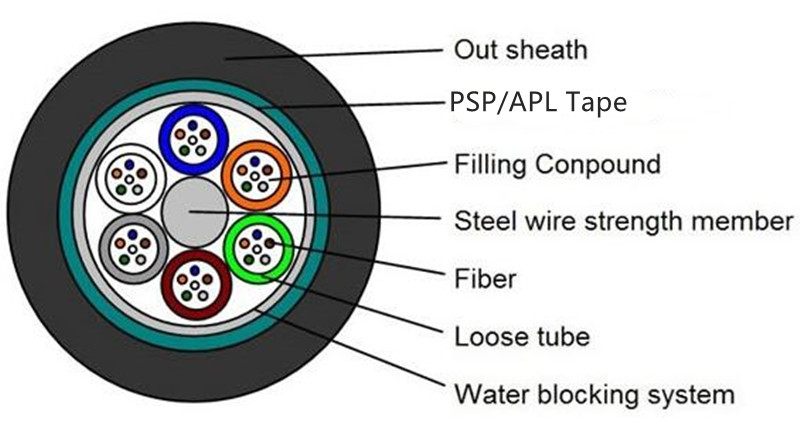

section drawing to GYTS GYTA cable

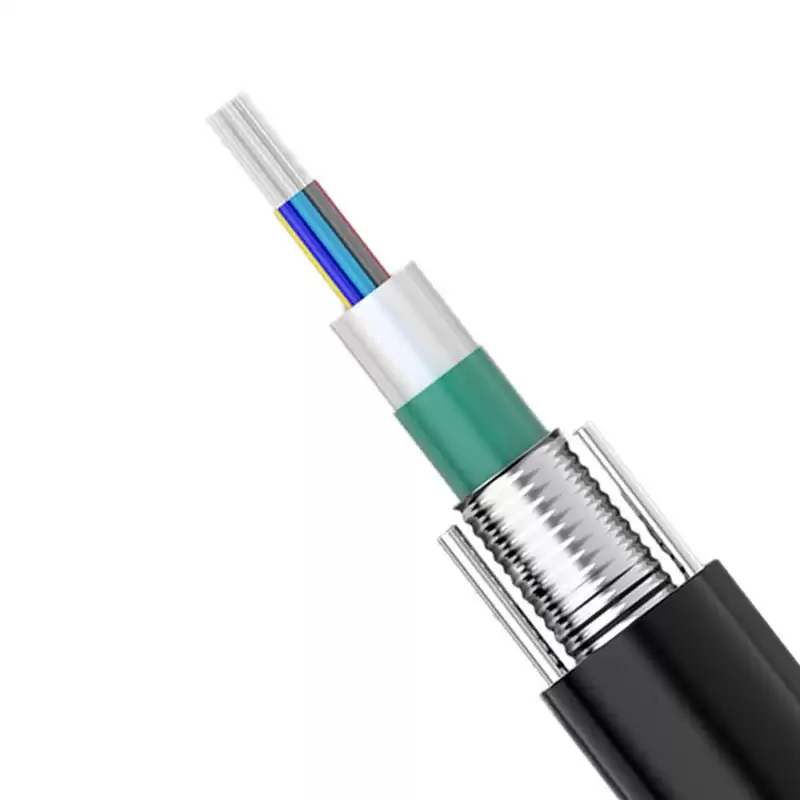

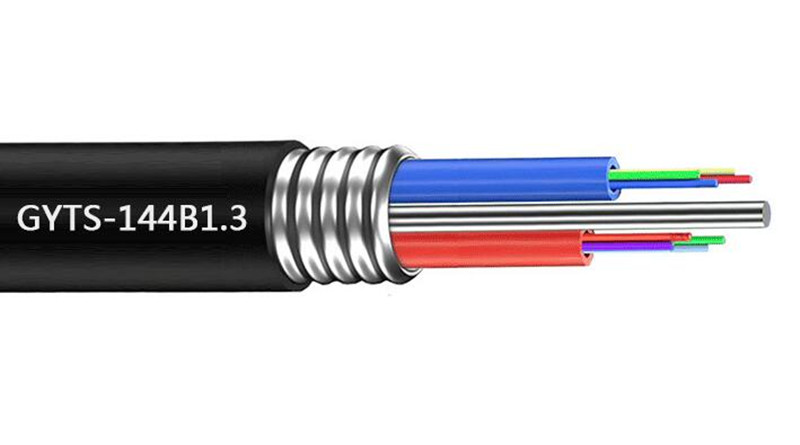

real cable of GYTS

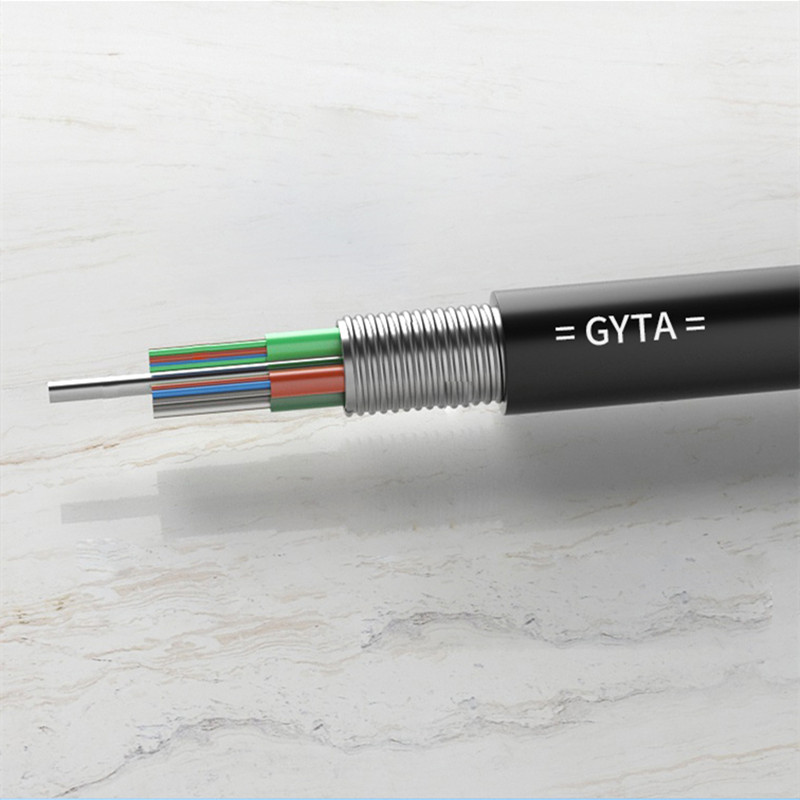

gyts gyta CABLE

Different fiber counts of gyts gyta cable

package of gyts gyta cables

workshop of gyta gyts cables

wor

Deployment of gyta gyts cables


appliance of gyts gyta cable



ready to ship for gyts gyta

Application:

Indoor FTTH;

For patch cords and pigtails;

For communication equipment.



Feature:

Good mechanical and environmental characteristics;

Flame retardant characteristics;

Cable jacket options:PVC,LSZH

Strength Member options:Steel,FRP,KFRP.



Package:

1km/2km/3km per roll or custom,then put into a carton box.


Mechanical Characteristics:



Tensile Strength

Long Term

600N

Short Term

1500N

Crush Resistance

Long Term

300N/100mm

Short Term

1000N/100mm

Bending Radius

Dynamic

20D

Static

10D




Optical Characteristics:





G652D

G657A1

G657A2

G657B3

G.655

62.5/125

50/125

Attenuation
(+20℃)

@850nm






≤3.5dB/km

@1300nm






≤1.5dB/km

@1310nm

≤0.45dB/km

≤0.40dB/km

≤0.45dB/km

≤0.50dB/km



@1550nm

≤0.30dB/km

≤0.50dB/km



Bandwidth
(Class A)

@850






≥200MHZ·km

≥500MHZ·km

@1300






≥500MHZ·km

≥500MHZ·km

Numerical Aperture







0.275±0.015NA

0.200±0.015NA

Cut-off Wavelength


≤1260nm


≤1480nm
