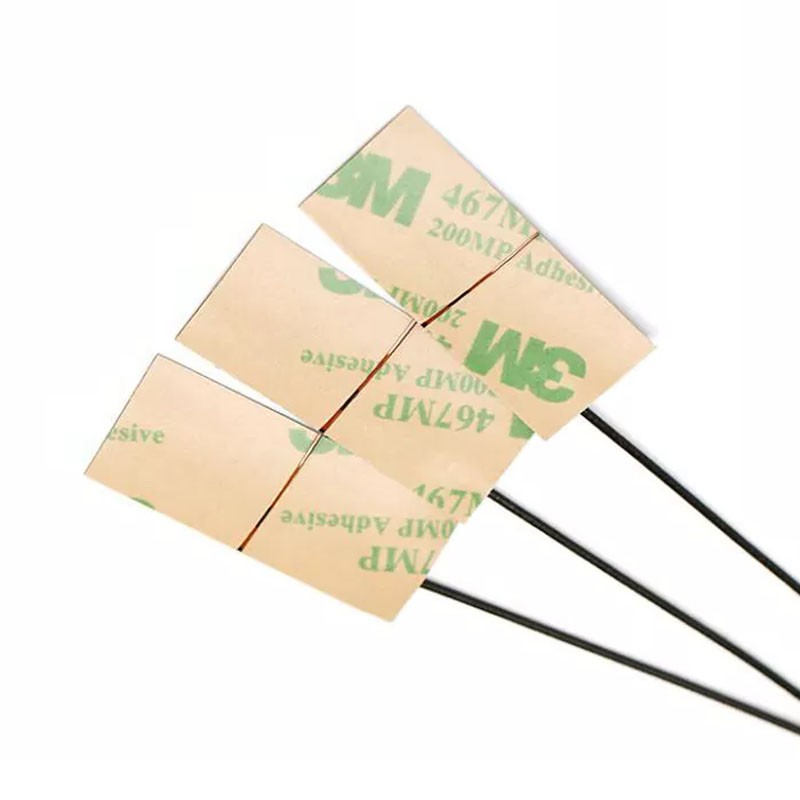

Lora Omni Directional 433MHz 315MHz 470MHz Wireless Module Built-In PCB Antenna with 1.13mm RF Cable

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



Lora Omni Directional 433MHz 315MHz 470MHz Wireless Module Built-In PCB Antenna with 1.13mm RF Cable

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(MHz)  315/433/470MHz
VSWR  ≤1.5
Gain(dBi)   3dBi
Input Impedance(Ω)  50

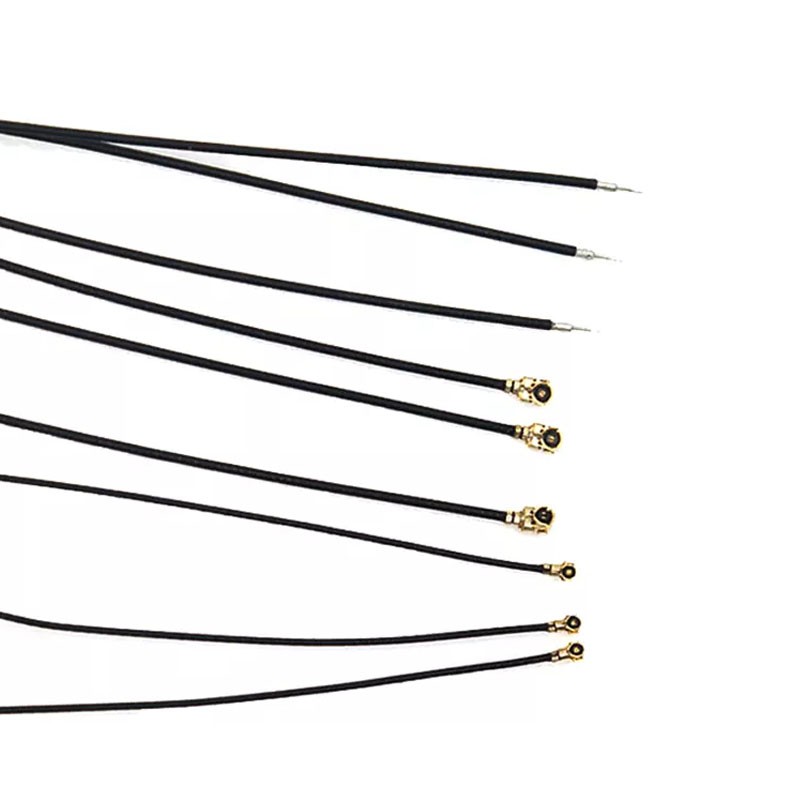

Cable Type  1.13mm cable
Connector Type  IPEX/UFL/MHF
Mounting  Adhesive
Housing /
Storage Temperature  -45 to +75
Operating Temperature  -45  to +75



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram




Product Tags 315MHz Built-In PCB Antenna          UFL Connector Built-In PCB Antenna          315MHz PCB Antenna          315MHz SMA Connector Antenna          3dBi Built-In PCB Antenna          315MHz Omni PCB Antenna
