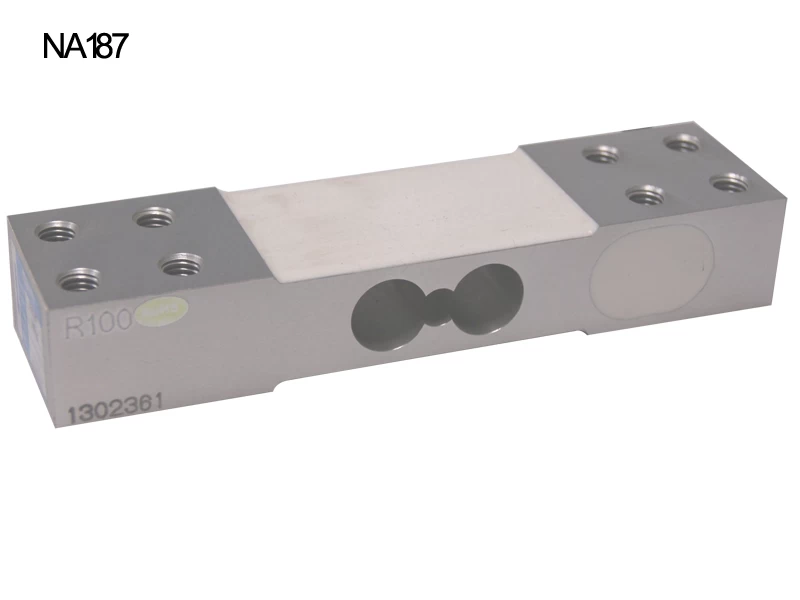

Low profile Platform Load Cell Off Centre weight sensor NA187

NA187 low profile scale sensor is designed for direct mounting on low cost weighing platforms. Its small physical size, combined with high precision and low cost, makes the off centre weight sensor ideally suited for retail, bench and counting scales.



  • Rated Output2.0mV/V
  • Dimension150*39*25mm
  • MaterialAluminum Alloy
  • Capacities100-300kg
  • Protection ClassPI66/PI67

Low profile Platform Load Cell off center Sensor NA187

NA187 low profile scale sensor is designed for direct mounting on low cost weighing platforms. Its small physical size, combined with high precision and low cost, makes the off centre weight sensor ideally suited for retail, bench and counting scales.


Key Features

Aluminum alloy construction

Calibrated to national standards

Easy to install

Long term, reliable operation


Usage & Applications

Platform scales

Bench scales

Retail scales
Pricing scales

Counting scales

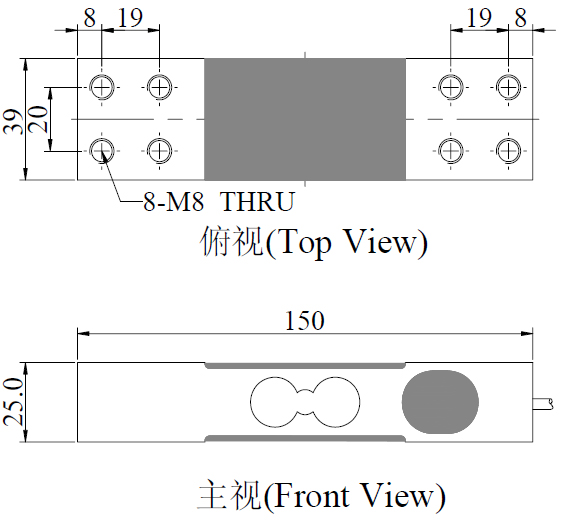

Dimension

off center load cell NA187


NA187 Specification

Rated Capacities

100150200300kg

Rated Output

2.0 mV/V±5%

Zero Balance

±0.0200 mV/V

Non-linearity

0.02 %R.O.

Hysteresis

0.02 %R.O.

Repeatability

0.02 %R.O.

30mins Creep

0.02 %R.O.

30mins Return

0.02 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

410±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

≥5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP66 / IP67

Cable

φ4×1.5m

Recommended Platform Size

350×450 mm

Mode of Connection

RedEXC+,BlackEXC-,
GreenSIG+,WhiteSIG-
