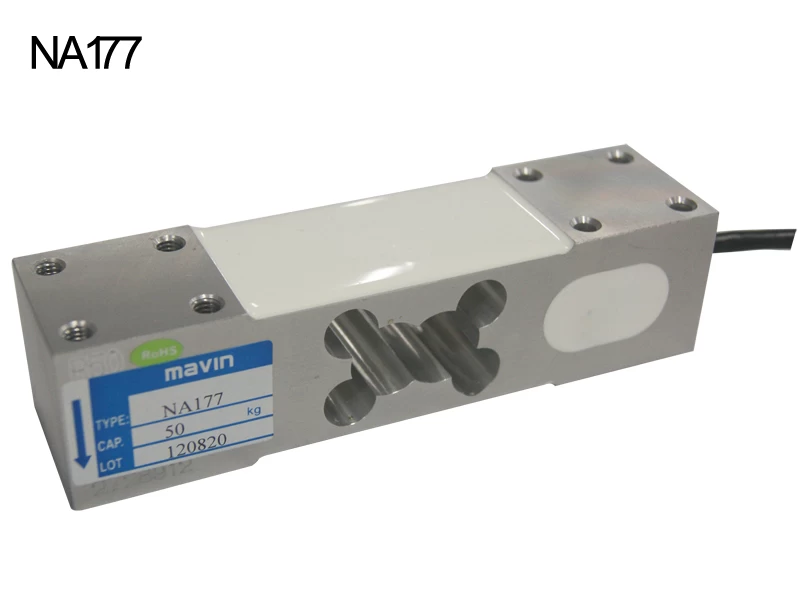

Single Point Load Cell NA177 (50-300kg)
Single point weighing sensor NA177 delivers highly precise and reliable measuring results even in long-term use. The aluminum parallel beam sensor can be used individually in smaller bench scales and retail scales.
Key Features：
Calibrated
to national standards
Aluminum
alloy construction
Compact
Design
Easy
to install
Long
term, reliable operation
Usage & Applications：
Platform
scales
Bench
scales
Retail
scales
Pricing scales
Counting scales

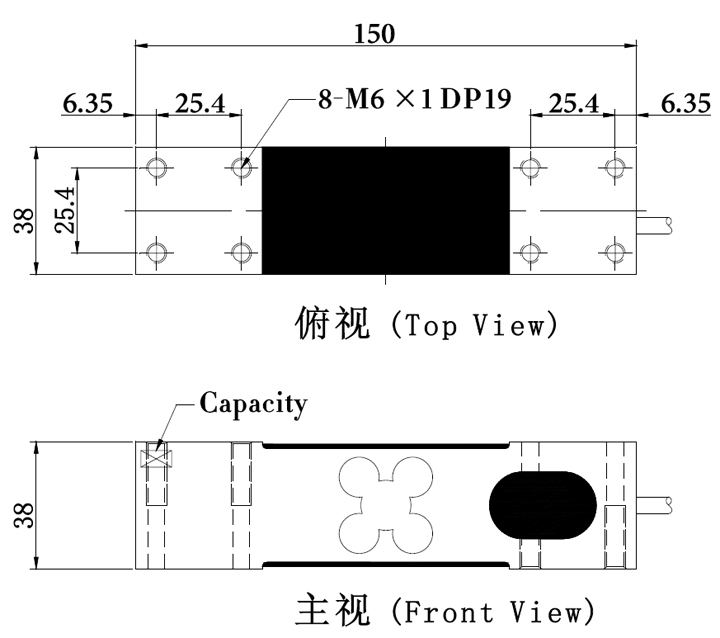

Dimension：
NA177 Specification：
|
Rated Capacities
|
50,100,200,300 (kg)
|
|
Rated Output
|
2.0 mV/V±10%
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.02 %R.O.
|
|
Hysteresis
|
0.02 %R.O.
|
|
Repeatability
|
0.02 %R.O.
|
|
30mins Creep
|
0.02 %R.O.
|
|
30mins Return
|
0.02 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.002 %R.O./℃
|
|
Temperature Effect On Zero
|
0.003 %R.O./℃
|
|
Input Impedance
|
410±15 Ω
|
|
Output Impedance
|
350±5 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Aluminum Alloy
|
|
Protection Class
|
IP66 / IP67
|
|
Cable
|
φ5×2m
|
|
Recommended Platform Size
|
350×450 mm
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
|
