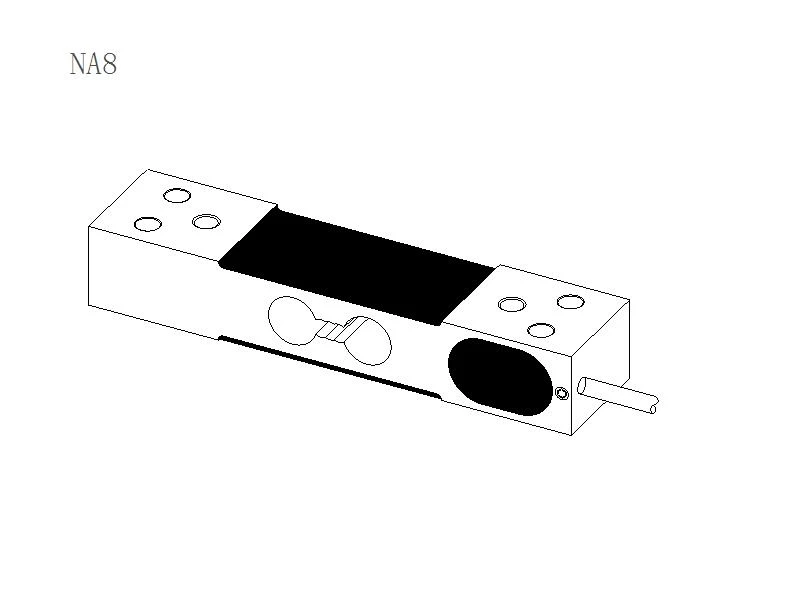

Low profile precision load cell weight sensor wholesale NA8

The NA8 is a precision load cell made with aluminum alloy material. The range capacities of  Low profile load cell is from 60kg to 200kg, suitable for the pricing scale, counting scale and other electronic weighing scales..




  • Capacities60-200kg
  • MaterialAluminum Alloy
  • Dimension130*38*23mm
  • Rated Output2.0mV/V
  • Protection ClassPI66/PI67

NA8 Weight Sensor Wholesale

The NA8 is a precision load cell made with aluminum alloy material. The range capacities of  Low profile load cell is from 60kg to 200kg, suitable for the pricing scale, counting scale and other electronic weighing scales..



Key Features

Low profile construction

Aluminum alloy material
Capacity: 60-200kg
Easy to install

Usage & Applications
Pricing scales
Counting scales

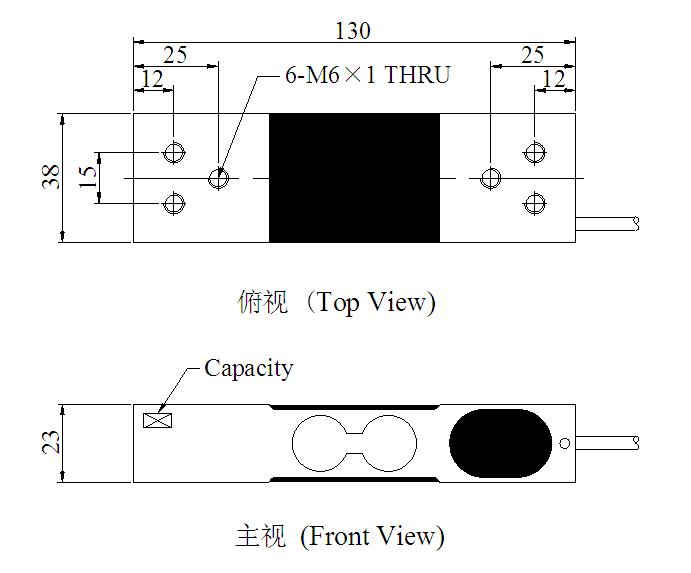

Dimension

precision load cell

NA8 Specification

Rated Capacities

60100150200kg

Rated Output

2.0 mV/V±5%

Zero Balance

±0.0200 mV/V

Non-linearity

0.02 %R.O.

Hysteresis

0.02 %R.O.

Repeatability

0.02 %R.O.

30mins Creep

0.02 %R.O.

30mins Return

0.02 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

410±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP66 / IP67

Cable

φ4×0.5m

Recommended Platform Size

400×400 mm

Mode of Connection

RedEXC+,BlackEXC-,
GreenSIG+,WhiteSIG-
