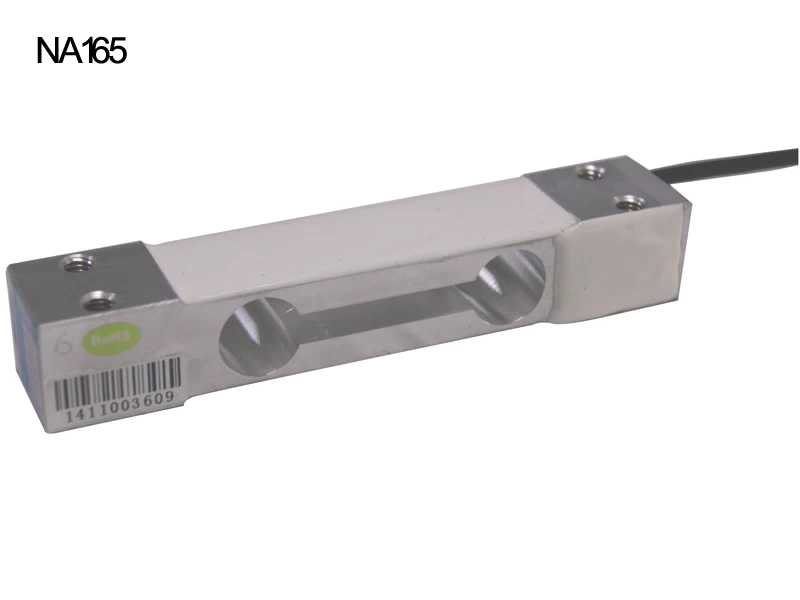

Low profile single point load cell scale sensor NA165

NA165 is a low profile single point load cell with aluminum construction and surface anodized, suitable for a wide range of retail scales. This weight scale sensor is available in the capacities: 3, 6, 10, 20, 35kg.


  • Protection ClassPI65
  • Rated Output2.0mV/V
  • Dimension130*24*22mm
  • MaterialAluminum Alloy
  • Capacities3-40kg

Low Profile Load Cell NA165

NA165 is a low profile single point load cell with aluminum construction and surface anodized, suitable for a wide range of retail scales. This weight scale sensor is available in the capacities: 3, 6, 10, 20, 35kg.


Key Features

Calibrated to national standards

Aluminum alloy construction

Compact Design

Easy to install


Usage & Applications

price computing scales
counting scales
weighing scales
retail scales

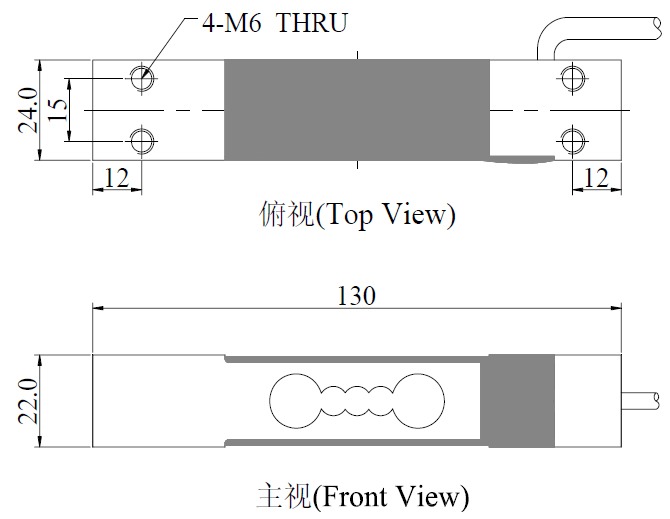

Dimension

off center load cell NA165

NA165 Specification

Rated Capacities

356101520303540kg

Rated Output

2.0 mV/V±10%

Zero Balance

±0.0200 mV/V

Non-linearity

0.02 %R.O.

Hysteresis

0.02 %R.O.

Repeatability

0.02 %R.O.

30mins Creep

0.02 %R.O.

30mins Return

0.02 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.003 %R.O./

Temperature Effect On Zero

0.005 %R.O./

Input Impedance

410±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

≥5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP65

Cable

φ4×0.35m

Recommended Platform Size

300×300 mm

Mode of Connection

RedEXC+,BlackEXC-,
GreenSIG+,WhiteSIG-
